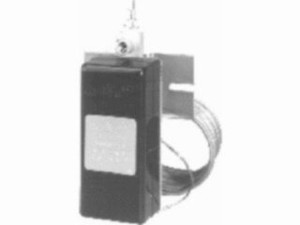

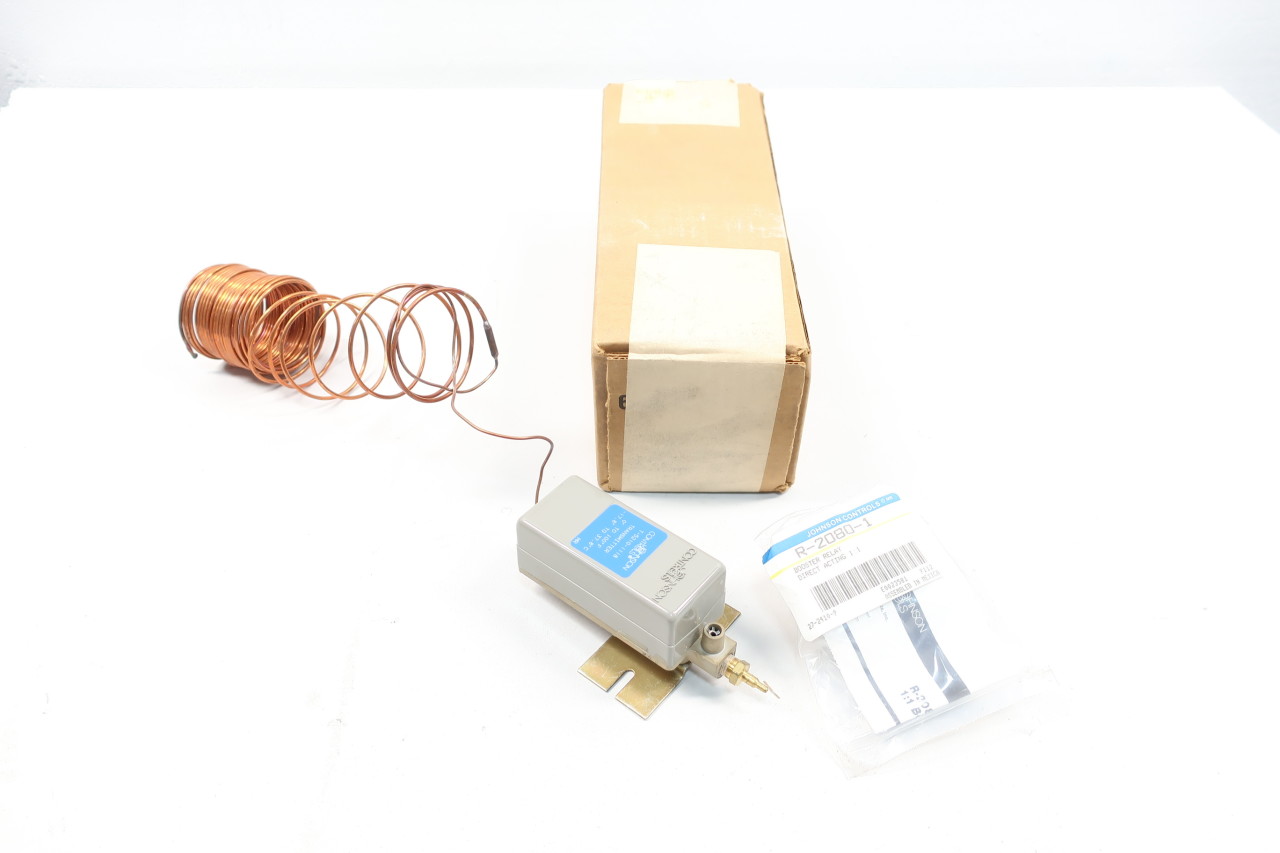

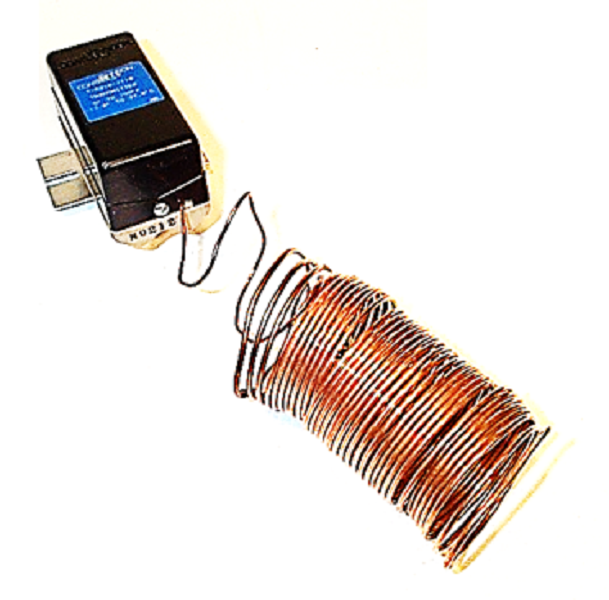

Pneumatic Temperature Transmitter, Direct Acting, Max. Air Pressure 25 psi, Max. Ambient Temp. 270 Degrees F, Temp. Control Range 0 Degrees to 100 Degrees F, Output Pressure Range 3 to 15 psi, Capillary Length 204 in, Sensing Bulb Dia. 1/4 in, Sensing Bulb Length 4 in, Control Air Pressure 3 to 15 psi, 1/8 in NPT Barbed Fitting for 5/32 in or 1/4 in OD Polytubing Air Connections, Element Type Bulb, Height 5 3/16 in, Width 3 in, Depth 2 1/8 in, Air Consumption 0.2 scfm
Pneumatic Temperature Transmitter, Direct Acting, Max. Air Pressure 25 psi, Max. Ambient Temp. 270 Degrees F, Temp. Control Range 0 Degrees to 100 Degrees F, Output Pressure Range 3 to 15 psi, Capillary Length 204 in, Sensing Bulb Dia. 1/4 in, Sensing Bulb Length 4 in, Control Air Pressure 3 to 15 psi, 1/8 in NPT Barbed Fitting for 5/32 in or 1/4 in OD Polytubing Air Connections, Element Type Bulb, Height 5 3/16 in, Width 3 in, Depth 2 1/8 in, Air Consumption 0.2 scfm
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Johnson Controls |
|---|---|
| CategoryId, CategoryIdL4 | 4761 |
| CategoryIdL1 | 30 |
| CategoryIdL2 | 4586 |
| CategoryIdL3 | 18089 |
| CategoryL1 | Heating & Cooling |
| CategoryL2 | HVACR and Appliance Controls |
| CategoryL3 | Controls |
| CategoryL4 | Pneumatic Controls |
| DimensionUnit | inch |
| GTIN, UPC | 078502836953 |
| GraingerSku | 38Y190 |
| UnitOfMeasure | EA |
| Weight | 1.2 |
| WeightUnit | lbs |
| cali_prop65_orglabel, cali_prop65_whtlabel | False |
| countryOfOrigin | MX |
| height | 11.5 |
| jsonUrlData | 924526ffbdad25e5923b |
| length | 4.8 |
| moq, multiple, tierMinQty1, Package Quantity | 1 |
| MPN | T-5210-1118 |
| qtyInStock | 0 |
| qtyInStockOverride | Drop Ship |
| SKU | G6713761 |
| tierPrice1 | 288.99 |
| url | https://www.zoro.com/johnson-controls-pneumatic-temperature-transmitter-3-to-15-psi-t-5210-1118/i/G6713761/ |
| width | 4.6 |
| Height | 5 3/16 in |
| Width | 3 in |
| Depth | 2 1/8 in |
| Sensing Bulb Length | 4 in |
| Sensing Bulb Dia | 1/4 in |
| Capillary Length | 204 in |
| Item | Pneumatic Temperature Transmitter |
| Action Type - Pneumatic Thermostats, Reverse Acting / Direct Acting, Action Type | Direct Acting |
| Control Air Pressure, Output Pressure Range | 3 to 15 psi |
| Air Connections | 1/8 in NPT Barbed Fitting for 5/32 in or 1/4 in OD Polytubing |
| Temp Control Range | 0 Degrees to 100 Degrees F |
| Air Consumption | 0.2 scfm |
| Element Type | Bulb |
| Max Air Pressure | 25 psi |
| Max Ambient Temp | 270 Degrees F |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G6713761 | 1 | 1 | 1 @ $288.99 | |
| Grainger | 38Y190 | 1 | 1 | ||
 Radwell | T-5210-1118 | 1 | 7 | 1 | 1 @ $420.00 |
| D749953 | 1 | 1 | 1 @ $60.98 | ||
| JC1304 | 1 | -2 | 1 | 1 @ $611.22 | |
| h-mac.com | JOHNSON-CONTROLS-NU-T-5210-1118 | 1 | 1 | ||
 Voomi Supply | T-5210-1118 | 1 | -2 | 1 | 1 @ $502.44 |
| sustainablesupply.com | C1121833 | 1 | -2 | 1 | 1 @ $310.65 |
 cappusa.com | 49025 | 1 | 1 | 1 @ $377.55 | |
 midwestapplianceparts.com | T-5210-1118-JO-P | 1 | 1 | 1 @ $434.52 | |
| T-5210-1118 | 1 | 1 | 1 @ $519.54 | ||
| D755161 | 1 | 1 | 1 @ $82.68 | ||
 energycontrol.com | T-5210-1118 | 1 | Call for Lead Time | 1 | 1 @ $493.25 |
| hvacdiscountstore.com | JOH--T-5210-1118 | 1 | 1 | 1 | 1 @ $390.79 |
| T-5210-1118 | 1 | 1 | 1 @ $491.19 | ||
| T-5210-1118 | 1 | -2 | 1 | 1 @ $311.30 | |
 homeessentialsdirect.com | T-5210-1118 | 1 | -2 | 1 | 1 @ $462.33 |
| Digi-Key | 15836920 | 1 | 1 | ||
| T-5210-1118-JHSN | 1 | 1 | 1 @ $521.96 | ||
| T-5210-1118 | 1 | Usually Ships 1-2 Weeks | 1 | 1 @ $527.85 | |
 grainger.ca | JHCT52101118 | 1 | 1 | ||
 blackhawksupply.com | T-5210-1118 | 1 | -2 | 1 | 1 @ $442.88 |
| alliedcontrols.com | T-5210-1118 | 1 | Factory Stock | 1 | 1 @ $410.42 |
