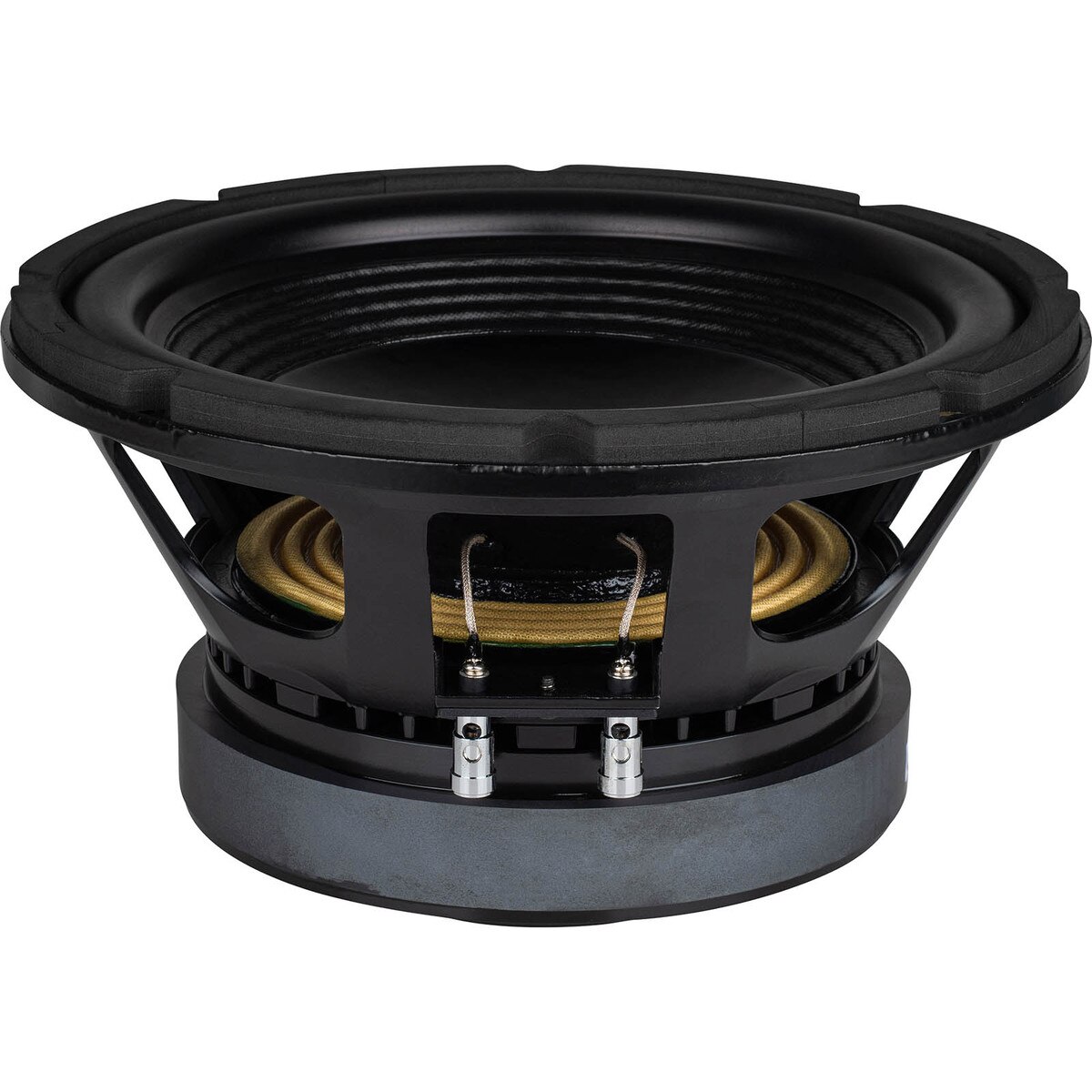

Ciare CSD124-22 12" High Power Subwoofer Dual 2 Ohm

Ciare . CSD124-22

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandCiare
DimensionUnitinch
Extra Product NameCiare CSD124-22 12" High Power Subwoofer Dual 2 Ohm
UPC848864075464
Weight32.25
WeightUnitlbs
depth, length7.09
diameter, height, width12.4
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelCSD124-22
qtyInStock-2
qtySourceFieldMap
SKU, Part Number293-170
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.61
Power Handling (RMS)500 Watts
Power Handling (MAX)1000 Watts
Impedance2?
Frequency Response30 to 200Hz
Sensitivity93.4dB 2.83V/1m
Voice Coil Diameter4"
Resonant Frequency (Fs)34Hz
DC Resistance (Re)3.3?
Voice Coil Inductance (Le)0.92mH
Mechanical Q (Qms)5.01
Electromagnetic Q (Qes)0.32
Total Q (Qts)0.3
Compliance Equivalent Volume (Vas)1.91ft?
BL Product (BL)18.21T?m
Diaphragm Mass Inc Airload (Mms)146g
Maximum Linear Excursion (Xmax)13mm
Surface Area of Cone (Sd)491cm?
Cone MaterialPaper-Treated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter12.4"
Baffle Cutout Diameter11.1"
Depth7.09"
# Mounting Holes8
Sealed Volume0.251ft?
Sealed F396.15Hz
Vented Volume0.58ft?
Vented F358.34Hz
