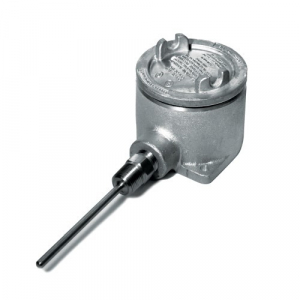

Buy ACI 135216, Transmitter, Hazardous, Room R, 2", 2-10VDC Output - Prime Buy

Automation Components Transmitter, Hazardous, Room R, 2", 2-10VDC Output 135216. Excellent prices and discounts ✅ ☎ 1-855-969-9322 Mon-Fri 8:00 AM - 5:00 PM or order online 24/7

ACI . 135216

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerACI
ConditionNEWCONDITION
DimensionUnitinch
Extra Product NameBuy ACI 135216, Transmitter, Hazardous, Room R, 2", 2-10VDC Output - Prime Buy
diameter, length, width304.0
length_Attrib, width_AttribProbe Material / Diameter / Sensor Threads
moq, multiple, tierMinQty11
MPN, SKU135216
qtyInStock-2
qtySourceFieldMap
snippetAutomation Components Transmitter, Hazardous, Room R, 2", 2-10VDC Output 135216. Excellent prices and discounts ✅ ☎ 1-855-969-9322 Mon-Fri 8:00 AM - 5:00 PM or order online 24/7
tierPrice1266.10
Protection LevelThermally Conductive, Low Moisture, Corrosion Resistant Epoxy / Plastic Cup
Warm Up Time / Warm Up Drift10 Minutes / +/- 0.1%
Operating / Storage Temperature Range-40 to 185°F (-40 to 85°C)
Operating Humidity Range0 to 95%, non-condensing
Connections22 AWG (0.654 mm) Colored Leads; Polarity Sensitive / 22 to 15 AWG Wire Nuts
Sensor Type / Sensor Curve / Sensing PointsPlatinum RTD / PTC (Positive Temperature Coefficient) / One
Din Standard / Temperature CoefficientDIN EN 60751 (IEC 751) / 3850 ppm / °C
Sensor Stability+/- 0.03% after 1000 Hours at 300°C (572°F)
Response Time (63% Step Change)8 Seconds nominal
Lead Wire Insulation / Wire RatingEtched Teflon (PTFE) Colored Leads / Mil Spec 16878/4 Type E)
Conductor MaterialSilver Plated Copper
Enclosure Hubs / Hub SizeTwo / 1/2" NPT Female Hubs
Probe Material / Diameter / Sensor Threads304 Stainless Steel / 0.250" (6.35mm) nominal / 1/2" NPT Threads
Thermowell Material / Bore Diameter304 Stainless Steel / 0.260" nominal
Model1KΩ
ConfigurationRoom with 2" Stainless Steel Sensing Tube
Analog Output2 to 10 VDC
SensorHazardous Sensor

Distributor offers

SellerSKUMOQIn stockMultiplePrices
primebuy.com1352161-211 @ $266.10
