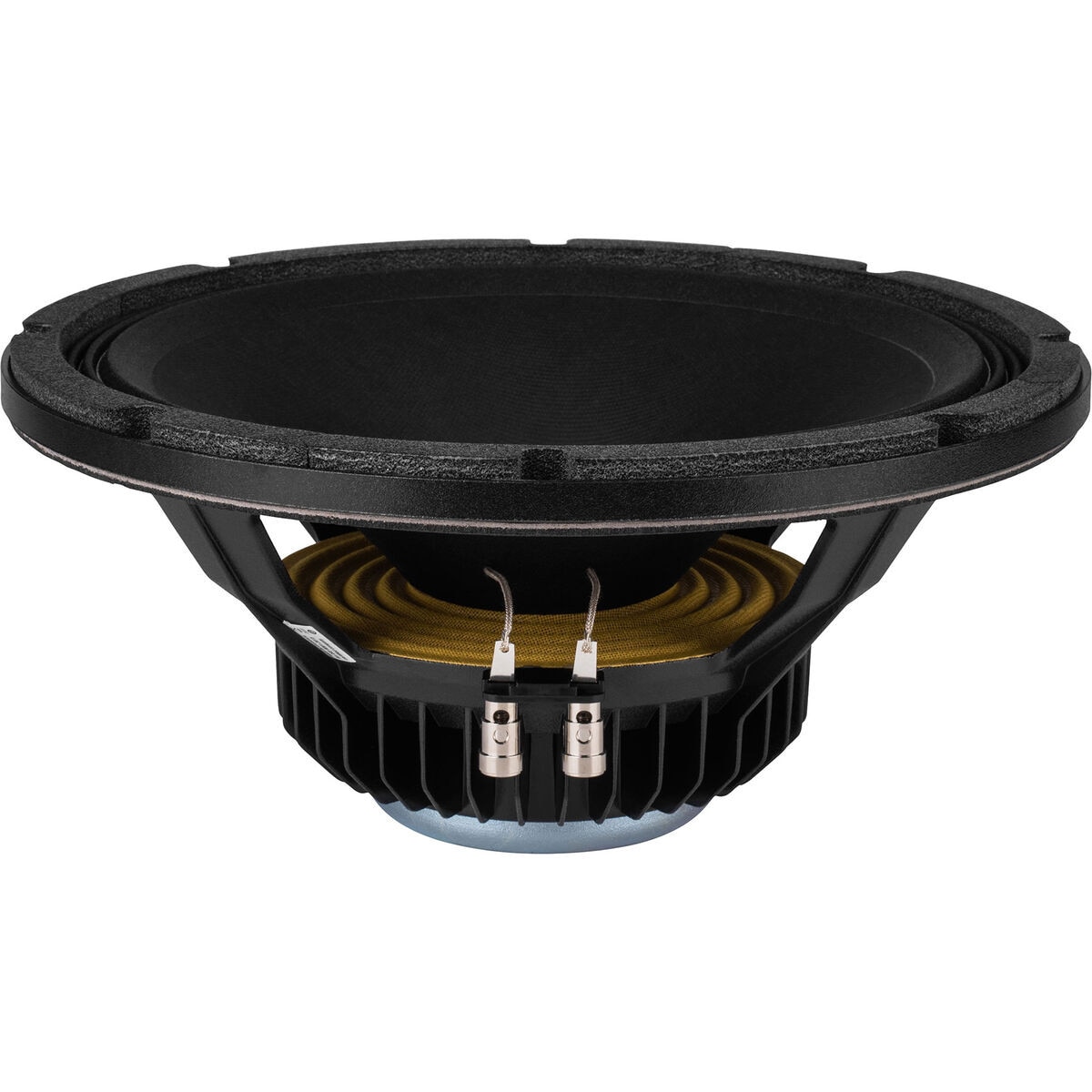

Eminence KL3012CX-8 12" High Power Coaxial Woofer 8 Ohm

Eminence KL3012CX-8 12" High Power Coaxial Woofer 8 Ohm. Part Number: 290-5642 by Eminence Speaker.

Eminence Speaker . KL3012CX-8

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandEminence Speaker
DimensionUnitinch
Extra Product NameEminence KL3012CX-8 12" High Power Coaxial Woofer 8 Ohm
UPC876358004300
Weight8.1
WeightUnitlbs
depth, length5.63
diameter, height, width12.38
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelKL3012CX-8
qtyInStockOnly 1 In Stock
SKU, Part Number290-5642
snippetEminence KL3012CX-8 12" High Power Coaxial Woofer 8 Ohm. Part Number: 290-5642 by Eminence Speaker.
Unit of MeasureEach
Nominal Diameter12"
Power Handling (RMS)400 Watts
Power Handling (MAX)800 Watts
Impedance8?
Frequency Response40 to 3,200Hz
Sensitivity95.4dB 2.83V/1m
Voice Coil Diameter3"
Resonant Frequency (Fs)42Hz
DC Resistance (Re)5.7?
Voice Coil Inductance (Le)0.61mH
Mechanical Q (Qms)8.37
Electromagnetic Q (Qes), Total Q (Qts)0.31
Compliance Equivalent Volume (Vas)3.94ft?
Mechanical Compliance of Suspension (Cms)0.27mm/N
BL Product (BL)16.02T?m
Diaphragm Mass Inc Airload (Mms)54g
Maximum Linear Excursion (Xmax)7.47mm
Surface Area of Cone (Sd)545.4cm?
Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium
Overall Outside Diameter12.38"
Baffle Cutout Diameter11.06"
Depth5.63"
# Mounting Holes8
Sealed Volume1ft?
Sealed F3107.7Hz
Vented Volume1.75ft?
Vented F349.8Hz
