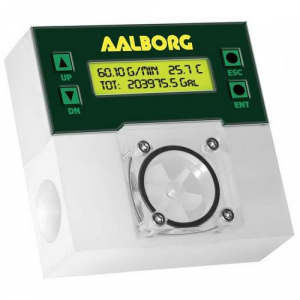

Aalborg PWE Digital Paddle Wheel Flow Meter PWE04P-ELN-A5. ✅Aalborg authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Aalborg PWE Digital Paddle Wheel Flow Meter PWE04P-ELN-A5. ✅Aalborg authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Aalborg . PWE04P-ELN-A5

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerAalborg
moq, multiple, tierMinQty11
MPN, SKUPWE04P-ELN-A5
qtyInStock0
snippetAalborg PWE Digital Paddle Wheel Flow Meter PWE04P-ELN-A5. ✅Aalborg authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
tierPrice1665.00
Orifice Size (Maximum Flow Range)04 - 5 gal / min (0.15 - 18.9 L/min)
Lower Block MaterialP - Polypropylene
SealE - EPDM
Display / KeypadL - LCD / Key Pad
RTD OptionN - No RTD
Output SignalA - 0-5 VDC
Digital Interface5 - RS-485
Flow MediumPlease note that PWE Flow Meter are designed to work only with liquids. Never try to measure flow rates of dry gas.
CalibrationsPerformed at standard conditions [14.7 psia (101.4 kPa) and 70 °F (21.1 °C)]
ViscosityCalibrated to 1 cSt (water) meters with display can be used for liquids up to 50 cSt with field calibration (maximum flow range may be affected)
Environmental (per IEC 664)Installation Level II / Pollution Degree II
Flow Accuracy (Including Linearity)±1% of FS
Repeatability±0.25% of full scale
Liquid Temperature Measurement Range34 °F to 140 °F (1 °C to 60 °C)
Temperature Accuracy (Including Linearity)±0.5 °C
Flow Response TimeApproximately 1 seconds (above 10% of full scale flow), approximately 2 seconds (below 10% of full scale flow)
Maximum Pressure10 barg (150 psig)
Ambient Temperature Range14 °F to 140 °F (-10 °C to 60 °C)
Flow Pulse Output3.3 Vdc amplitude (3000 ohms min load impedance)
Optically Isolated OutputsUCE 40Vdc, ICE 150 mA
Electrical ConnectionsBuilt-in female 12 pin M16, IP67 connector

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotPWE04P-ELN-A5111 @ $665.00
heavydutydepot.comPWE04P-ELN-A5111 @ $665.00
usmegastore.comPWE04P-ELN-A512 Weeks Factory Lead Time11 @ $665.00
