| Brand name, Manufacturer name, Manufacturer | Teledyne FLIR |
|---|
| CategoryL1 | Test Equipment |
|---|
| CategoryL2 | Thermal Imaging Cameras |
|---|
| CategoryL3 | Cameras |
|---|
| CategoryL4 | Teledyne FLIR T1020-45 |
|---|
| Condition | NEW |
|---|
| DimensionUnit | inch |
|---|

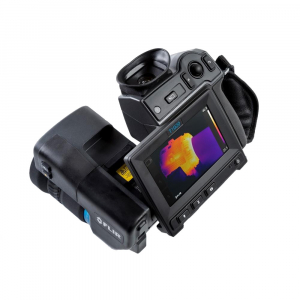

| Extra Product Name | Order T1020-45 by Teledyne FLIR HD Thermal Camera with Viewfinder 45deg - US Mega Store |
|---|
| Weight | 2.1 |
|---|
| WeightUnit | lbs |
|---|
| Weight_Attrib | Weight |
|---|
| length | 21.2 |
|---|
| length_Attrib | Focal Length |
|---|
| moq, multiple, tierMinQty1 | 1 |
|---|
| MPN, SKU | T1020-45 |
|---|
| qtyInStock | Contact Us |
|---|
| tierPrice1 | 48139 |
|---|
| Color alarm (isotherm) | Above/below/interval |
|---|
| Compass | Camera direction automatically added to every image |
|---|
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
|---|
| Difference Temperature | Delta temperature between the measurement functions and the reference temperature |
|---|
| Field of view (FOV) | 45° x 34° |
|---|
| Focal Length | 21.2 mm (0.83") |
|---|
| Housing material | Magnesium |
|---|
| IR Resolution | 1024 x 768; up to 3.1 MP with UltraMax |
|---|
| Laser | Activated by a dedicated button |
|---|
| Laser Alignment | Position is automatically displayed on the infrared image |
|---|
| Laser Classification | Class 2 |
|---|
| Laser Type | Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red) |
|---|
| Multi Spectral Dynamic Imaging (MSX) | Thermal image with enhanced detail presentation |
|---|
| Object Temperature Range | -40°C to 2000°C (-40°F to 3632°F) |
|---|
| Profile | 1 line profile with max./min. temperature |
|---|
| Thermal Sensitivity/NETD | <20 mK at 30°C (86°F) |
|---|
| Optional Lenses | 7°, 28°, 45°, and 3x close-up lenses |
|---|
| Text | Add table, select between predefined templates |
|---|
| Time Lapse | 15 seconds to 24 hours |
|---|
| User Presets | The user can select and combine measurements from any number of spots/boxes/circles/profiles/delta |
|---|
| Voice | 60 seconds (via Bluetooth) stored with the image |
|---|
| FLIR Screen-EST Mode | Yes |
|---|
| Sampling Average in Screen EST Mode | Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperature |
|---|
| Accuracy [Drift] in Screen EST Mode | Accuracy (drift): ±0.3°C (±0.5°F) |
|---|
| Antenna | Internal |
|---|
| Audio | Microphone headset via Bluetooth for the voice annotation of images |
|---|
| Bluetooth | Frequency range: 2402–2480 MHz, supports 2.1 and 4.0 |
|---|
| Interface | USB Micro-B, Bluetooth, Wi-Fi, HDMI |
|---|
| METERLiNK - Bluetooth | Communication with headset and external sensors |
|---|
| SD Card | One card slot for removable SD memory cards |
|---|
| Storage Media | Removable media SD or SDHC card. Class 10 or better recommended |
|---|
| USB | USB Micro-B: data transfer to and from a PC, uncompressed colorized video |
|---|
| USB - Standard | USB 2.0 High Speed USB Micro-B connector |
|---|
| Video Out | HDMI 640 x 480 HDMI 1280 x 720 DVI 640 x 480 DVI 800 x 600 |
|---|
| METERLiNK | Wireless connection (Bluetooth) to: FLIR meters with METERLiNK |
|---|
| Video Connector Type | HDMI type C |
|---|
| WiFi | Standard: 802.11 b/g/n Frequency range: 2412–2462 MHz Max. output power: 15 dBm |
|---|
| Atmospheric transmission correction | Automatic, based on the inputs for distance, atmospheric temperature, and relative humidity |
|---|
| EMC | ETSI EN 301 489-1 (radio) ETSI EN 301 489-17 EN 61000-6-2 (Immunity) EN 61000-6-3 (Emission) FCC 47 CFR Part 15 Class B (Emission) ICES-003 |
|---|
| Emissivity Correction | Variable from 0.01 to 1.0 or selected from the materials list |
|---|
| Encapsulation | IP 54 (IEC 60529) |
|---|
| Ergonomics | The viewfinder plus the 120° rotating optical block allow you to point the camera in multiple directions while maintaining a comfortable position |
|---|
| Humidity (Operating and Storage) | IEC 60068-2-30 / 24 hours, 95% relative humidity, 25–40°C (77–104°F) / 2 cycles |
|---|
