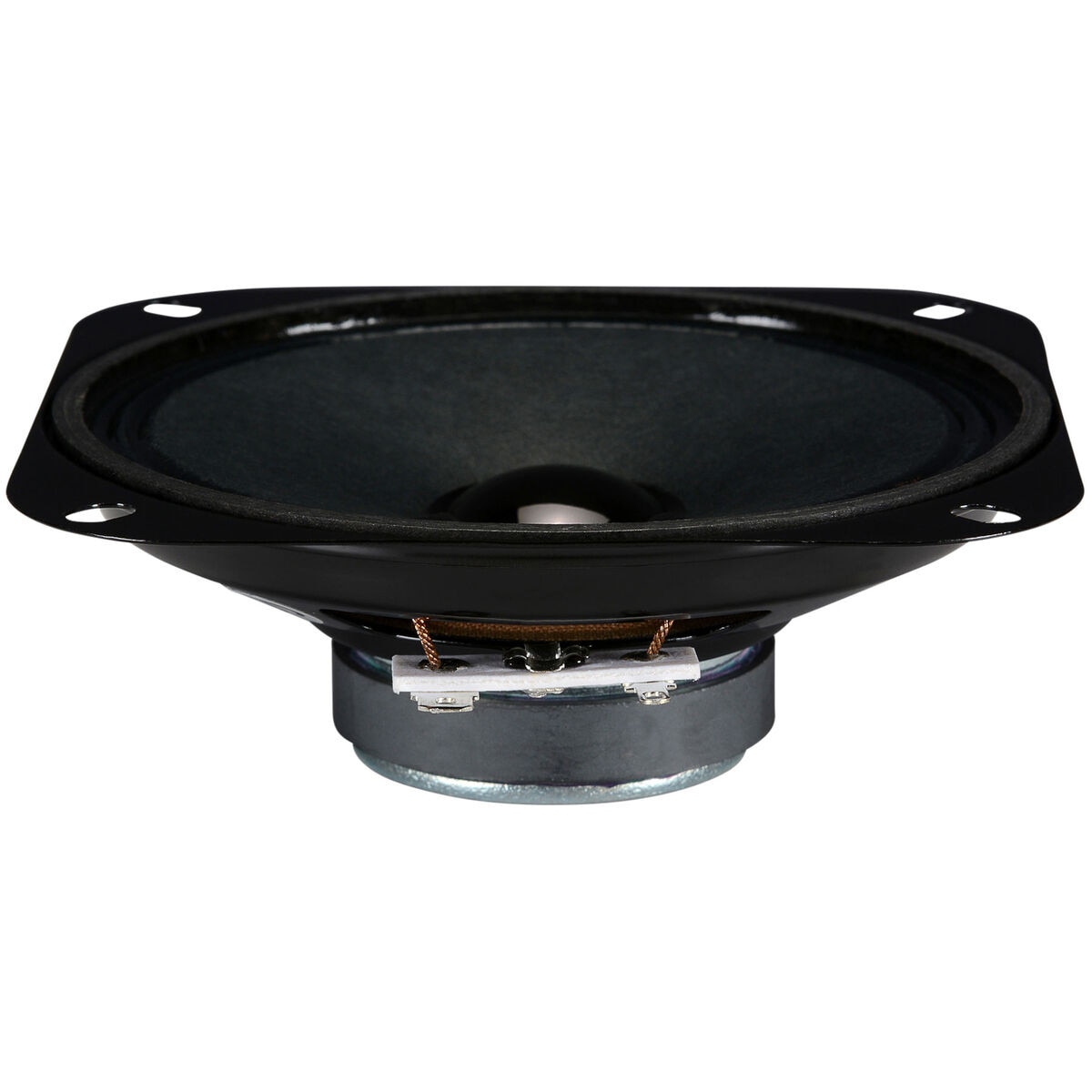

Visaton R10S 4" Full-Range Speaker 4 Ohm

Visaton R10S 4" Full-Range Speaker 4 Ohm. Part Number: 292-595 by Visaton.

Visaton . R10S-4

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandVisaton
DimensionUnitinch
Extra Product NameVisaton R10S 4" Full-Range Speaker 4 Ohm
Weight0.35
WeightUnitlbs
depth, length1.42
diameter, height, width4.02
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, ModelR10S-4
qtyInStock-2
qtySourceFieldMap
SKU, Part Number292-595
snippetVisaton R10S 4" Full-Range Speaker 4 Ohm. Part Number: 292-595 by Visaton.
tierMinQty210
tierMinQty325
tierPrice110.25
tierPrice29.94
tierPrice39.51
Unit of MeasureEach
Nominal Diameter4"
Bolt Circle Diameter4.61
Power Handling (RMS)20 Watts
Power Handling (MAX)30 Watts
Impedance4?
Frequency Response100 to 13,000Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter0.59"
Resonant Frequency (Fs)160Hz
DC Resistance (Re)3.4?
Voice Coil Inductance (Le)0.2mH
Mechanical Q (Qms)5.53
Electromagnetic Q (Qes)1.96
Total Q (Qts)1.45
Compliance Equivalent Volume (Vas)0.07ft?
BL Product (BL)1.9T?m
Diaphragm Mass Inc Airload (Mms)1.9g
Maximum Linear Excursion (Xmax)0.5mm
Surface Area of Cone (Sd)56cm?
Cone MaterialPaper
Surround MaterialTreated Paper
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside DiameterAcross the flats 4.02"
Baffle Cutout Diameter3.66"
Depth1.42"
# Mounting Holes4
Sealed Volume0.05ft?
Sealed F3170.5Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com292-5951-211 @ $10.25, 10 @ $9.94, 25 @ $9.51
