SunSource | 26C356 GRACO Lubrication | SunSource.com

26C356 GRACO | Search our online catalog of Lubrication. Start your quote online to connect with our team of technical experts for support.

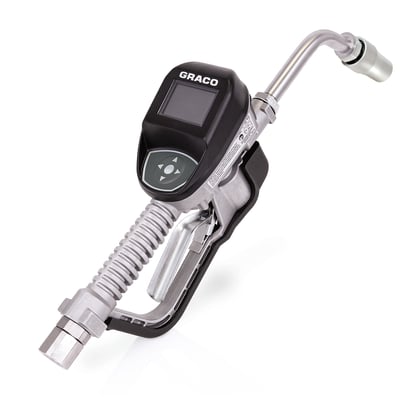

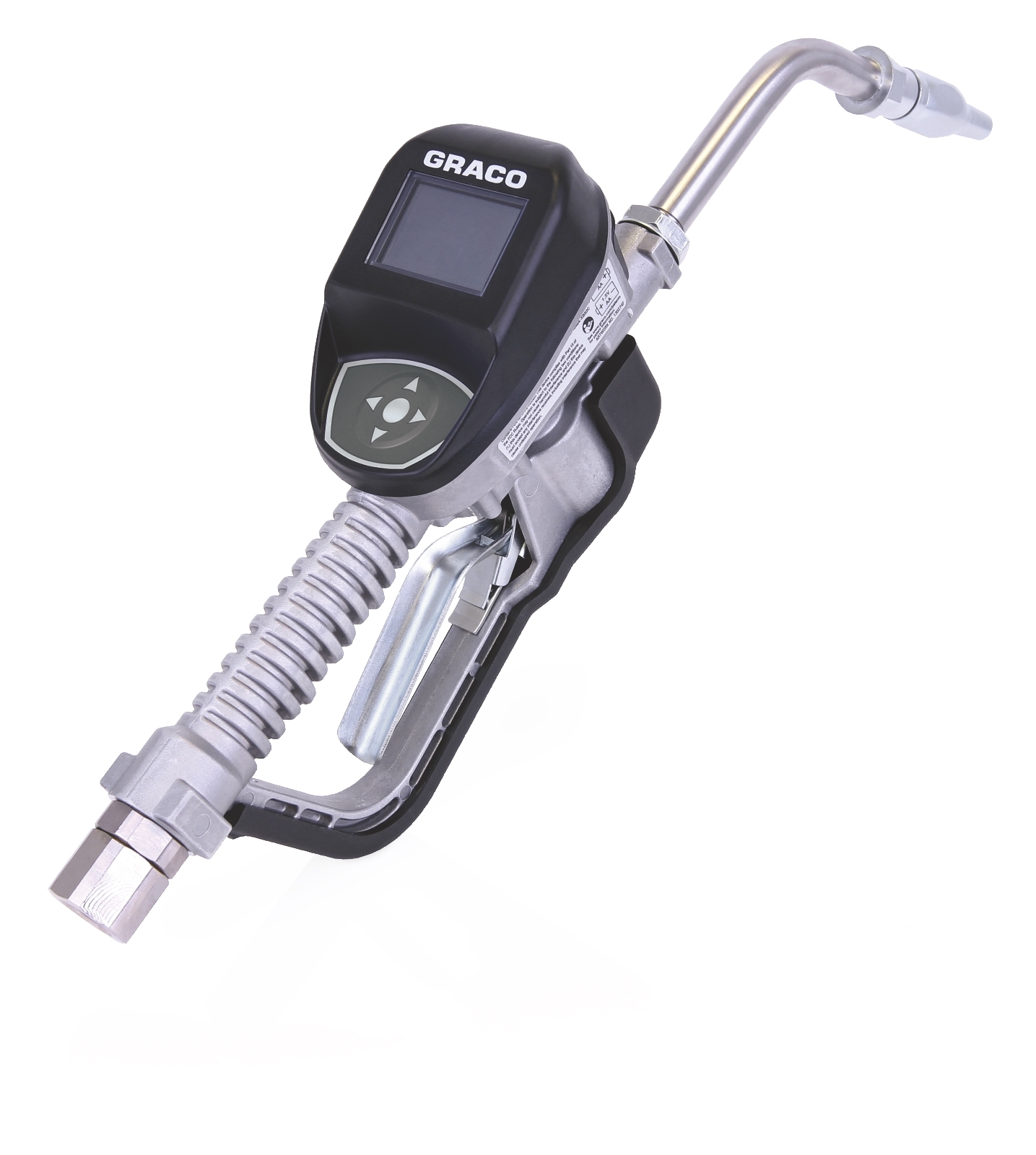

GRACO . 26C356

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerGRACO
Extra Product NameSunSource | 26C356 GRACO Lubrication | SunSource.com
Weight, Metering gun weight (lb)5.3
WeightUnitlbs
Weight_AttribMetering gun weight (lb)
jsonUrlData9cf202f9-cf3b-461c-aaa6-ae4e00ebeeab
keywordsVALVE, SDP18, FC, 1/2NPT, RIDG, OIL 26C356
moq, multiple, tierMinQty11
MPN, SKU26C356
qtyInStock, tierPrice10
snippet26C356 GRACO | Search our online catalog of Lubrication. Start your quote online to connect with our team of technical experts for support.
Compatible materialOil;Antifreeze;ATF;Gear Oil
Dimension uom codeIN
Dispense typePreset
Display TypeElectronic
Division codeLED
Extension typeRigid
Fluid inlet thread gender, Fluid outlet thread genderFemale
IncludesNozzle, Rigid Extension
Inlet size (cm)1.27
Inlet size (in)1/2
Inlet size (mm)12.7
Inlet thread typeNPT
Maximum flow rate (gpm)18
Maximum flow rate (l/min)68
Maximum operating temperature (?c), Maximum storage temperature (??c)70
Maximum operating temperature (?f), Maximum storage temperature (??f)158
Maximum recorded dispense9999
Maximum working pressure (bar)103.4
Maximum working pressure (kpa)10340
Maximum working pressure (mpa)10.3
Maximum working pressure (psi)1500
Meter accuracy (%)??0.5
Meter technologyOval Gear
Metering gun weight (kg)2.4
Minimum flow rate (gpm)0.25
Minimum flow rate (l/min)0.9
Minimum operating temperature (?c)-16
Minimum operating temperature (?f)4
Nozzle typeManual
Outlet thread typeStraight Thread O-Ring Boss
Overall height (cm)14.6
Overall height (in)5.75
Overall height (mm)146
Overall length (cm)33
Overall length (in)13
Overall length (mm)330
Overall width (cm)9.5
Overall width (in)3.75
Overall width (mm)95
Product typeMeter
Recommended environmentIndoor
Trigger lockLocking
Trigger protection typeGuard
TypeElectronic Metered Dispense Valve
Unit of measureQuart;Pint;Gallon;Liter
Valve TypeMetered
Wetted MaterialAluminum;Stainless Steel;PBT/PC;Zinc;Nitrile Rubber;CS

Distributor offers

SellerSKUMOQIn stockMultiplePrices
sun-source.com26C356111 @ $0.00
autotoolworld.comGRA26C3561-211 @ $1107.31
