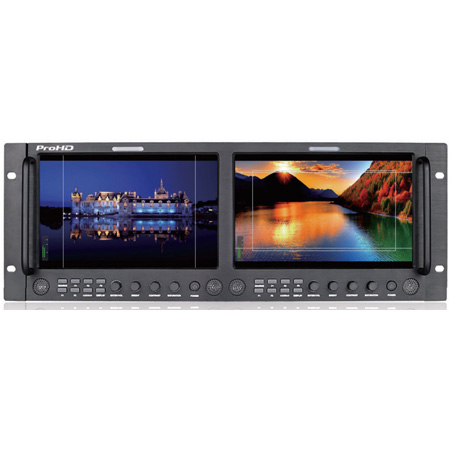

9-inch Full HD IPS LCD with LED backlight The DT-X93Hx2 adopts 2x 9-inch IPS (In-Plane Switching) LCD panels, with Full HD 1920x1200 resolution and LED backlight, 800:1 contrast. The viewing angle is 170° Vertically or Horizontally. Embedded audio monitoring DT-X93Hx2 supports SDI-2ch, HDMI-2ch embedded audio meters display, and analog-2ch audio meters display, with marks and audio abnormal alert info. The audio meter pattern position can be selected from one of four corners, and scale markers, alert info, and translucent of the audio meter pattern are selectable. UMD and Text-Tally Display DT-X93Hx2 supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD/TALLY signal inputs via RJ45(RS485) port on the rear panel of the monitor. USB Firmware Upgrade The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into DT-X92F monitor to upgrade, without PC connection. 3-color TALLY Light There are front TALLY lights on top of each screen, with Red, Green and Yellow colors, and users can define the pins of RJ45 port to control the TALLY lights. Power Supply DT-X93Hx2 provides a 4-pin XLR socket of DC 6.5-24V power input, for the both 2 screens, and an AC-DC adaptor is attached on the rear panel of the monitor.

9-inch Full HD IPS LCD with LED backlight The DT-X93Hx2 adopts 2x 9-inch IPS (In-Plane Switching) LCD panels, with Full HD 1920x1200 resolution and LED backlight, 800:1 contrast. The viewing angle is 170° Vertically or Horizontally. Embedded audio monitoring DT-X93Hx2 supports SDI-2ch, HDMI-2ch embedded audio meters display, and analog-2ch audio meters display, with marks and audio abnormal alert info. The audio meter pattern position can be selected from one of four corners, and scale markers, alert info, and translucent o
