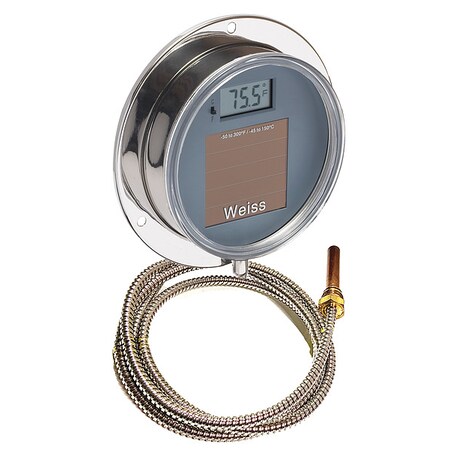

Digital Panel Mount Thermometer, 3-1/2" W

Weiss . DV35BL3-4111 15FT

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerWeiss
DimensionUnitinch
Extra Product NameDigital Panel Mount Thermometer, 3-1/2" W
UnitOfMeasureEA
Weight1.45
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginUS
extendedLead, moq, multiple, tierMinQty11
height3.4
jsonUrlData924526ffbdad25e5923b
length6.7
MPNDV35BL3-4111 15FT
qtyInStock, qtyInStockOverride0
qtySourceqtyInStockOverride
SKUG3310784
tierPrice186.93
urlhttps://www.zoro.com/weiss-digital-panel-mount-thermometer-3-12-w-dv35bl3-4111-15ft/i/G3310784/
width6.5
ItemDigital Panel Mount Thermometer
Response Time10 sec
Accuracy1%
Sensor Length, Probe Length2.5 in
Sensor Dia7/16 in
Thermometer Power Source, Power SourceSolar
Temp Range (F)-50 Degrees to 300 Degrees
Case MaterialStainless Steel
Temp Range (C)-45 Degrees to 150 Degrees
MountingBack Flange
Width, Height3 1/2 in
StandardsASME B40.4
Sensor Wire Length, Cable Length15 ft
Manufacturers Warranty Length, Manufacturer Warranty Length1 yr
Process Connection1/2 in MNPT with 15 ft Cable
Lens MaterialPolycarbonate
Display, Display TypeLCD
Thread Size, Digit Height1/2 in
Depth2 in
Number of Digits3
Sensor Material, Line MaterialCopper
Enclosure RatingIP61
Temperature ScaleFahrenheit/Celsius
Temperature Resolution C0.1 Degrees C
Probe MaterialBrass
Resolution0.1 Degrees F/0.1 Degrees C
Minimum Temperature C, Minimum Temperature ?C-45 Degrees C
Thread TypeNPT
Maximum Temperature F, Maximum Temperature ?F300 Degrees F
Sensor TechnologyThermistor
Thread GenderMale
Maximum Temperature C, Maximum Temperature ?C150 Degrees C
Includes Batteries, Backlit, NSF Rated, 3-A Certified, Temperature AlarmNo
Minimum Temperature F, Minimum Temperature ?F-50 Degrees F
Temperature Resolution F0.1 Degrees F
Display Diameter3.5 in
Housing Material304 Stainless Steel
Construction304 Stainless Steel Housing with Polycarbonate Lens and Brass Probe
Display Width1 in
Thermometer TypePanel-Mount Digital Thermometer
Probe Diameter0.4375 in
Display Size0.5 in H x 1 in W
Temperature Range-50 Degrees to 300 Degrees F/-45 Degrees to 150 Degrees C
Scale TypeDigital
Mounting Hole Diameter0.28 in
Digital Display0.5 in H x 1 in W Display with 3-Digit LCD - 1/2 in Digit Height
WaterproofYes
Display Height0.5 in
Probe TechnologyThermistor - 7/16 in Dia x 2 1/2 in L Probe
Mounting StyleBack Flange, Surface Mount
Alarm StyleNone
Flange Outside Diameter4.75 in
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG3310784111 @ $86.93
