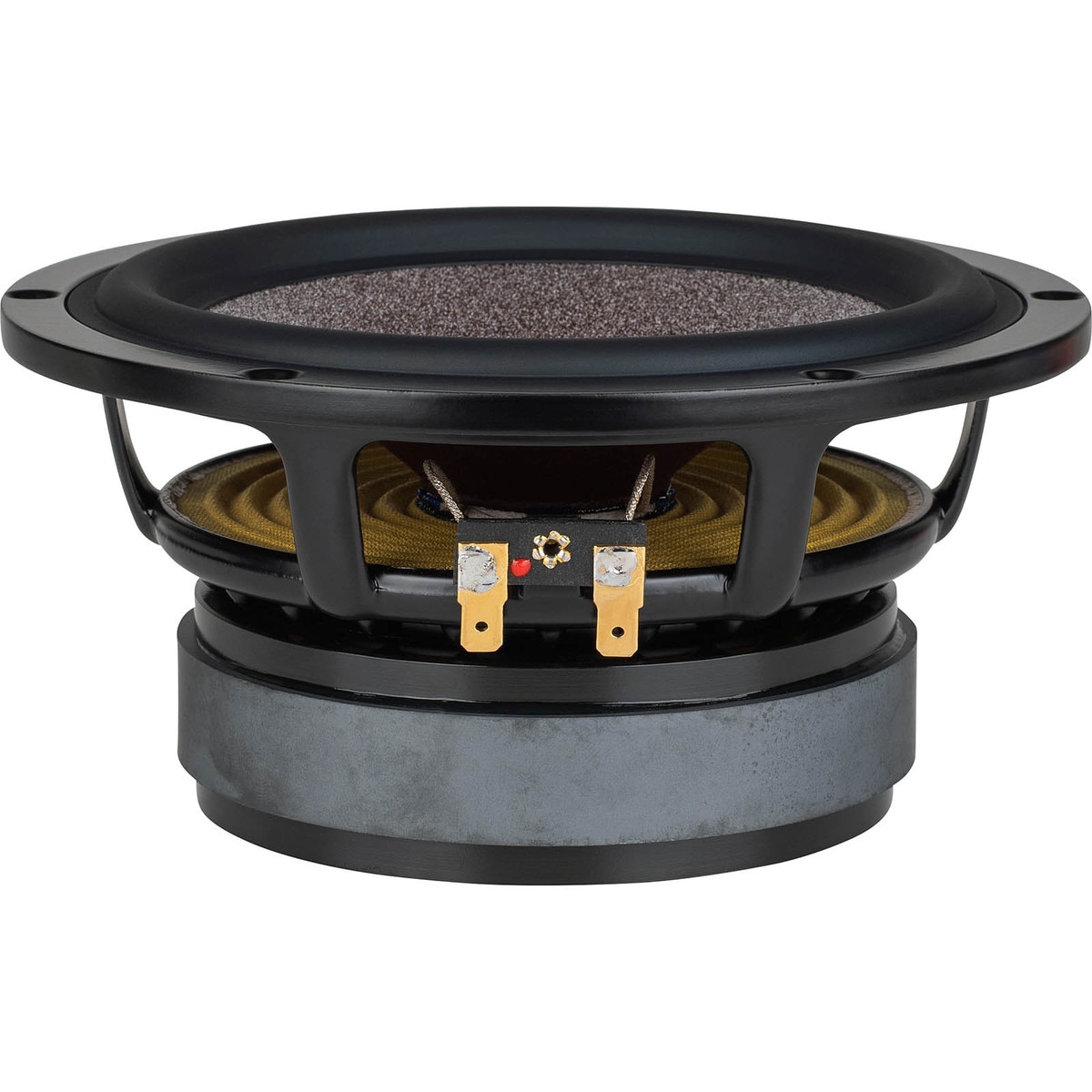

Ciare HWG160-4 6.5" Woofer 4 Ohm

Ciare HWG160-4 6.5" Woofer 4 Ohm - Part Number: 293-124 by Ciare.

Ciare . HWG160-4

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandCiare
DimensionUnitinch
Extra Product NameCiare HWG160-4 6.5" Woofer 4 Ohm
UPC848864073095
Weight6.25
WeightUnitlbs
depth, length3.27
diameter, height, width6.85
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelHWG160-4
qtyInStock-2
qtySourceFieldMap
SKU, Part Number293-124
snippetCiare HWG160-4 6.5" Woofer 4 Ohm - Part Number: 293-124 by Ciare.
Unit of MeasureEach
Nominal Diameter6-1/2"
Bolt Circle Diameter6.46
Power Handling (RMS)130 Watts
Power Handling (MAX)260 Watts
Impedance4?
Frequency Response45 to 7,000Hz
Sensitivity92.5dB 2.83V/1m
Voice Coil Diameter1.5"
Resonant Frequency (Fs)39Hz
DC Resistance (Re)2.7?
Voice Coil Inductance (Le)1.3mH
Mechanical Q (Qms)4.9
Electromagnetic Q (Qes)0.35
Total Q (Qts)0.33
Compliance Equivalent Volume (Vas)0.95ft?
BL Product (BL)5.6T?m
Diaphragm Mass Inc Airload (Mms)16.1g
Maximum Linear Excursion (Xmax)6.5mm
Surface Area of Cone (Sd)141cm?
Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton? / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter6.85"
Baffle Cutout Diameter5.75"
Depth3.27"
# Mounting Holes6
Sealed Volume0.18ft?
Sealed F394.5Hz
Vented Volume0.4ft?
Vented F357.2Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com293-1241-21
