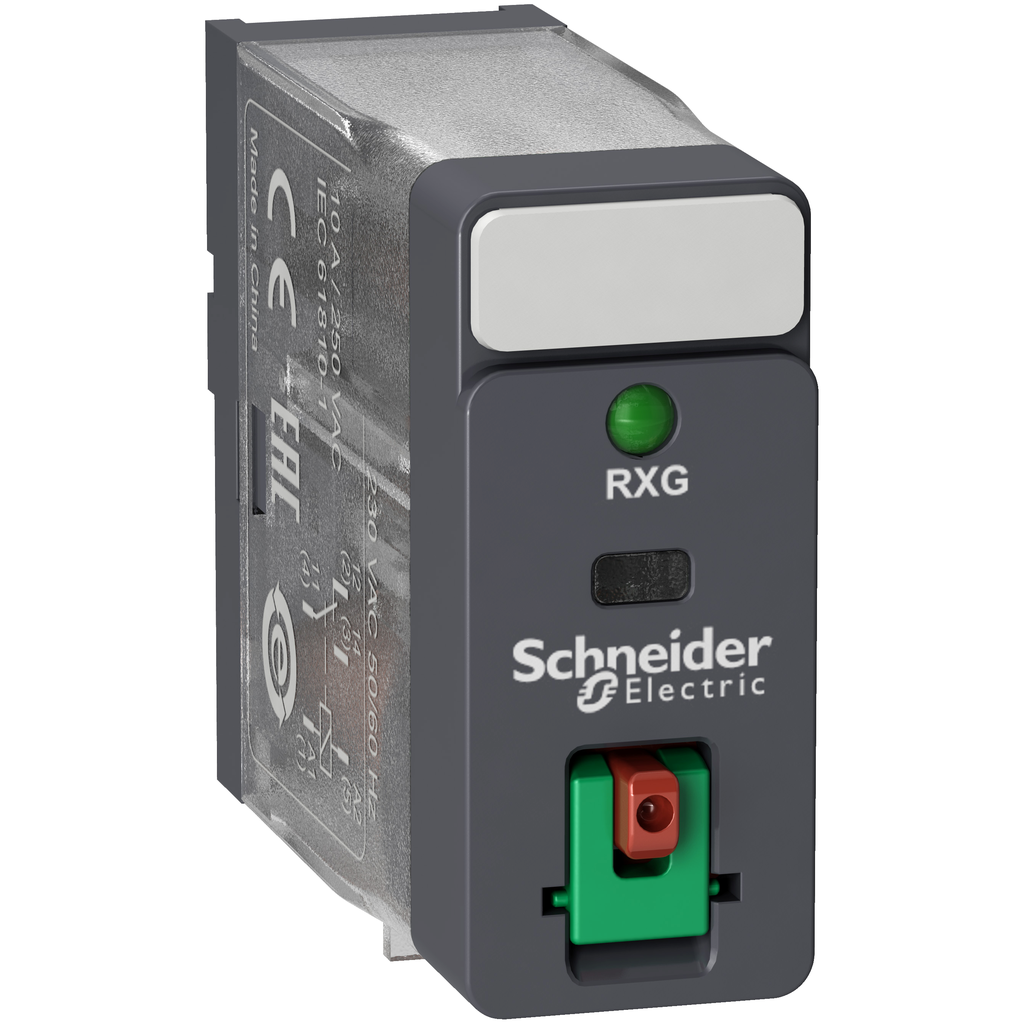

interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, with LED, lockable test button, 120V AC | Mayer Electric

Shop SCHNEIDER ELECTRIC at Mayer. Interface plug-in relay, 10 A, 1 CO, lockable test button, LED, 120 V AC

Mayer Electric Supply . RXG12F7

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
Extra Product Nameinterface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, with LED, lockable test button, 120V AC | Mayer Electric
UPC3606480688683
Weight0.02
WeightUnitkg
Weight_AttribNet Weight
jsonUrlData/Product/SCHNEIDER-ELECTRIC-Interface-plug-in-relay-10-A-1-CO-lockable-test-button-LED-120-V-AC-785901956495
jsonUrlData2f2cdfebd-17ec-419e-b592-abd20063087d
keywordsSQUARE D, Mayer SQUARE D, 785901956495, RXG12F7
moq, multiple, tierMinQty11
MPNRXG12F7
qtyInStock0
SKUSQDRXG12F7
snippetShop SCHNEIDER ELECTRIC at Mayer. Interface plug-in relay, 10 A, 1 CO, lockable test button, LED, 120 V AC
tierPrice111.22
Protection CategoryRT I
Ambient Air Temperature For Storage-40-85 ?C
StandardsUL 508 || IEC 61810-1 || CSA C22.2 No 14
Ip Degree Of ProtectionIP40
Pollution Degree2
Overvoltage CategoryIII
Product CertificationsUL || EAC || CSA || CE || DNV-GL
Ambient Air Temperature For Operation-40-70 ?C
Vibration Resistance3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
Relative Humidity10-85 %
Shock Resistance20 gn in operation || 100 gn not in operation
Warranty18 months
Reach Free Of Svhc, Rohs Exemption Information, Toxic Heavy Metal Free, Mercury FreeYes
China Rohs RegulationX
Reach RegulationFree of Substances of Very High Concern above the threshold
Environmental DisclosureENVPEP1406006EN
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Safety Reliability DataB10d = 100000
Status Ledwith
Control Circuit Voltage Limits0.8...1.1 Uc AC
Control Typelockable test button
Operating Time, Reset Time20 ms
Minimum Switching Capacity500 mW at 100 mA, 5 V DC
Net Weight0.02 kg
Mechanical Durability10000000 cycles
Contacts Materialsilver alloy (AgSnO2In2O3)
[Ithe] Conventional Enclosed Thermal Current10 A -40-55 ?C
Dielectric Strength1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation
Mounting Positionany position
Device Presentationcomplete product
Load Current10 A 250 V AC
Electrical Insulation Classclass F
Average Consumption0.82 VA 60 Hz
Maximum Switching Capacity2500 VA
[Uc] Control Circuit Voltage120 V AC 50/60 Hz
[Ie] Rated Operational Current10 A 30 V DC) UL || 10 A 30 V DC) IEC || 10 A 250 V AC) IEC || 10 A 250 V AC) UL
Utilisation Coefficient20 %
Maximum Switching Voltage250 V AC || 30 V DC
Test Levelslevel A group mounting
Electrical Durability100000 cycles NO resistive at 55 ?C || 100000 cycles NC resistive at 55 ?C
Torque Value0.8 N.m
Resistance6300 Ohm +/- 10 %
Drop-Out Voltage Threshold>= 0.3 Uc AC
[Uimp] Rated Impulse Withstand Voltage6 kV 1.2/50 ?s
[Ui] Rated Insulation Voltage250 V IEC || 300 V CSA || 300 V UL
Local Signallingflag
Colour Of Coverstandard
Insulation Resistance1000 MOhm at 500 V DC
Contact Resistance100 mOhm
Range Of ProductHarmony Electromechanical Relays
Series Nameinterface relay
Product Or Component Typeplug-in relay
Contacts Type And Composition1 C/O
Device Short NameRXG
