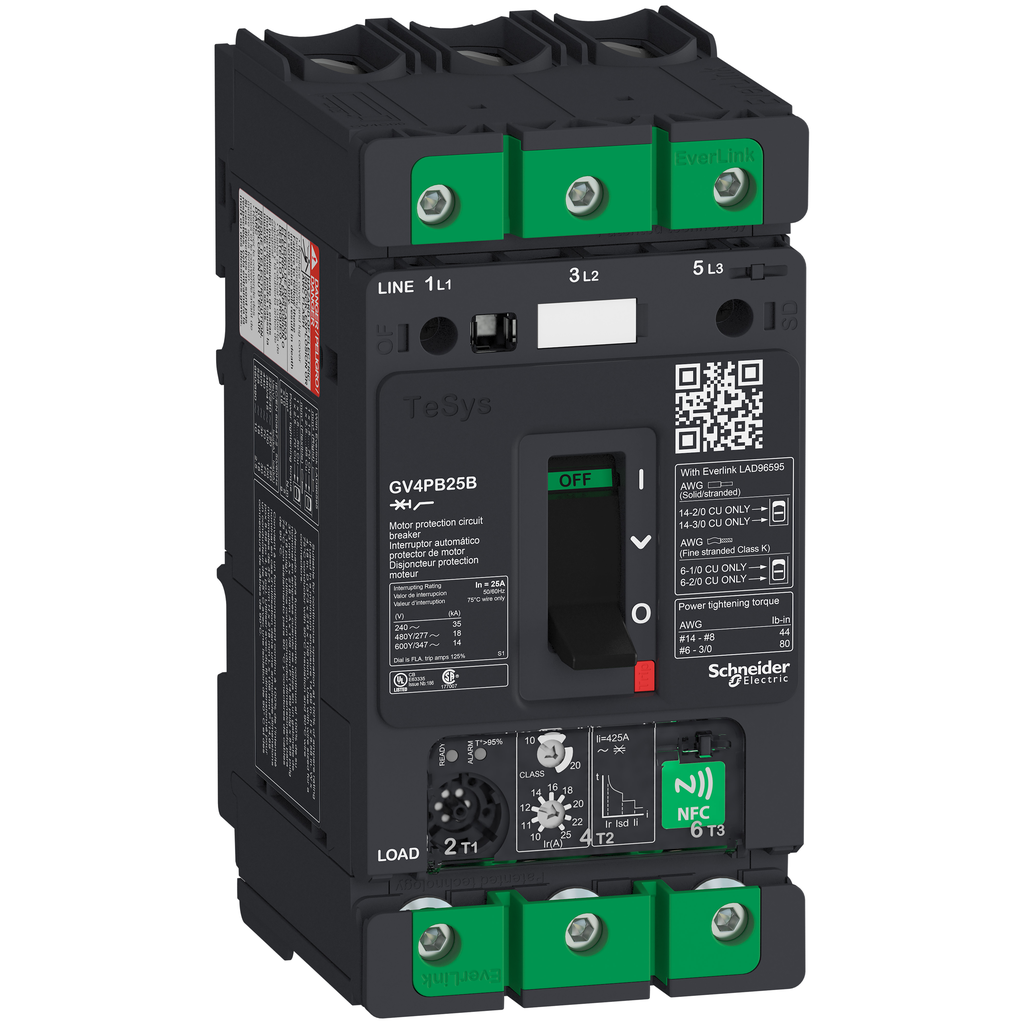

Motor circuit breaker, TeSys Deca, 3P, 25A, Icu 25kA, thermal magnetic, multifunction, UL489 | Mayer Electric

SQUARE D . SQDGV4PB25B

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameMotor circuit breaker, TeSys Deca, 3P, 25A, Icu 25kA, thermal magnetic, multifunction, UL489 | Mayer Electric
UPC, MPN, SKUSQDGV4PB25B
Weight1.45
WeightUnitkg
Weight_AttribNet Weight
color, ColorGray RAL 7016)
depth, length116.0
height171.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Motor-circuit-breaker-TeSys-Deca-3P-25A-Icu-25kA-thermal-magnetic-multifunction-UL489-SQDGV4PB25B
jsonUrlData2d24ba1ae-a3e9-4988-9a6b-aeea005599c6
length_AttribDepth
moq, multiple, tierMinQty11
qtyInStock0
tierPrice10.0
width81.0
width_AttribWidth
Range Of ProductTeSys GV4
Product Or Component Typemotor circuit breaker
Product NameTeSys GV4 || TeSys Deca
RangeTeSys Deca
Device Applicationmotor protection
Device Short NameGV4PB
Trip Unit Technologyelectronic || thermal-magnetic
Warranty18 months
Mechanical Robustnessvibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6 || vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6 || shocks 15 gn 11 ms IEC 60068-2-27
Line Rated Current25 A
[Ue] Rated Operational Voltage690 V AC 50/60 Hz IEC 60947-2 || 600Y/347 V AC 60 Hz UL 489
Height171 mm
Phase Failure Sensitivityyes IEC 60947-4-1
Rated Dutycontinuous IEC 60947-4-1
Magnetic Tripping Current425-425 A
[Ith] Conventional Free Air Thermal Current115 A IEC 60947-4-1
Maximum Operating Rate25 cyc/h
Operating Positionany position
Utilisation Categorycategory A IEC 60947-2 || AC-3 IEC 60947-4-1
Net Weight1.45 kg
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2
[Ics] Rated Service Short-Circuit Breaking Capacity100 % 220/240 V AC 50/60 Hz IEC 60947-2 || 100 % 380/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2
Control Typetoggle
Power Dissipation Per Pole4.6 W
Electrical Durability40000 cycles AC-3 440 V In/2 || 20000 cycles AC-3 440 V In
Suitability For Isolationyes IEC 60947-1
[Ui] Rated Insulation Voltage800 V AC 50/60 Hz IEC 60947-2
Tightening Torque9 N.m 16-95 mm? || 5 N.m 1.5-10 mm?
Mechanical Durability40000 cycles
Poles Description3P
Width81 mm
Depth116 mm
Rohs Exemption Information, Mercury Free, Pvc FreeYes
Environmental DisclosureENVPEP1704004EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Circularity ProfileENVEOLI1704004EN
Eu Rohs DirectiveCompliant
Halogen Content PerformanceHalogen free plastic parts product
Product CertificationsIEC || UL || CSA
Ik Degree Of ProtectionIK07 IEC 62262
Ambient Air Temperature For Operation-25-70 ?C
StandardsEN/IEC 60947-1 || EN/IEC 60947-2 || EN/IEC 60947-4-1 || UL 489 || CSA C22.2 No 5
Climatic WithstandIACS E10
Pollution Degree3
Ambient Air Temperature For Storage-50-85 ?C
Ip Degree Of ProtectionIP40 IEC 60529
Operating Altitude5000 m
Fire Resistance960 ?C IEC 60695-2-11
