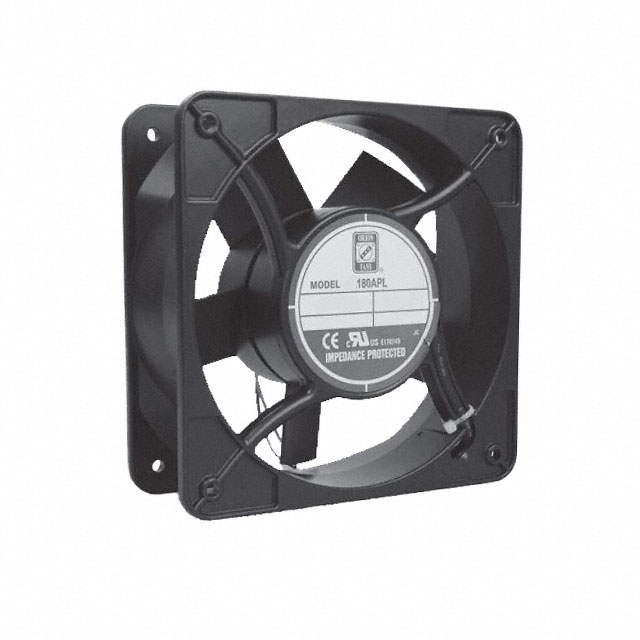

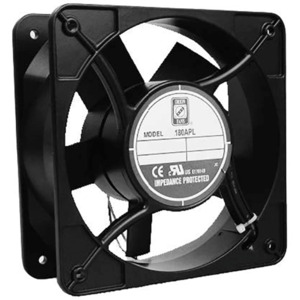

OD180APL-24LB Orion Fans | Fans, Thermal Management | DigiKey
Fan Tubeaxial 24VDC Square - 180mm L x 180mm H Ball 300.0 CFM (8.40m?/min) 2 Wire Leads
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Orion Fans |
|---|---|
| Extra Product Name | OD180APL-24LB Orion Fans | Fans, Thermal Management | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | OD180APL-24LB |
| qtyInStock | 0 |
| SKU | OD180APL-24LB-ND |
| Part Status, Ingress Protection, Weight, Voltage Range | - |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 180mm L x 180mm H |
| Width | 65.00mm |
| Air Flow | 300.0 CFM (8.40m?/min) |
| Static Pressure | 0.580 in H2O (144.5 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Locked Rotor Protection |
| Noise | 46.0dB(A) |
| RPM | 2200 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | -4 ~ 167?F (-20 ~ 75?C) |
| Approval Agency | cURus, TUV |
| Current Rating (Amps) | 0.520A |
| Material - Frame | Aluminum |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Lifetime @ Temp | 60000 Hrs @ 40?C |
| Power (Watts) | 13 W |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| OD180APL-24LB-ND | 1 | 1 | |||
| Hotenda | H4578420 | 1 | 1 | ||
 Carlton Bates Company | 40308485908 | 1 | 1 | 1 @ $111.73 | |
| Digi-Key | 5722420 | 1 | 1 | 20 @ $99.39 | |
 Newark | 36AJ7611 | 1 | 1 | 1 @ $157.32, 1000 @ $144.21 | |
| 10142262 | 1 | 1 | 1 @ $131.10 | ||
| us.rs-online.com | 70859438 | 1 | 1 | 1 | 1 @ $141.37, 10 @ $129.60 |
