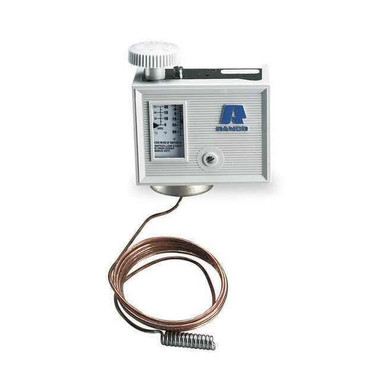

Refrigeration/Freezer Control, Medium Temp., Switch Type SPST, Switch Action Automatic Reset, Close on Rise, Control Range (F) -15 to 40, 3 to 20, 6 to 25, -, -, -, -, -, -, -, Height (In.) 2 3/4 in, Width (In.) 3 1/2 in, Depth (In.) 2 in, Voltage 24, 24

Maximum adjustment accuracy with 7 revolution range adjustment screws . NEMA 1 enclosure with non-conductive cover . Large easy-to-read scale plate . Recognizing the need for flexibility in design of refrigeration equipment, these controls offer a wide selection for such products as self-contained refrigerators, freezers, coolers, walk-in units, and refrigeration display cases.

Item: Refrigeration/Freezer Control Type: Medium Temp. Switch Type: SPST Switch Action: Close on Rise, Automatic Reset Control Range (F): -15 to 40 Temp. Differential High (F): 3 to 20 Temp. Differential Low (F): 6 to 25 Height (In.): 2-3/4 Width (In.): 3-1/2 Depth (In.): 2 Capillary Length (In.): 72 Capillary Type: Capillary w/Bulb Sensor Bulb Dia. (In.): 3/8 Bulb Size Length (In.): 1-3/8 Voltage: 24 Full Load Amps: 24 Pilot Duty Contacts (VA): 144 Construction: Bellows are Laser welded, For Extended Life, Compact Case is Zinc Plated, Pressed Steel, Has a NEMA 1 Non-conductive, Non-corrosive Cover which is Retained by a Captive, Accessible Screw Application: Suitable for Line or Pilot Duty Cycling of Motors, Compressors or Solenoid Valves Agency Compliance: UL Listed Includes: Dual Temperature Scale, Fahrenheit and Celsius Readings, Mounting Bracket, Mounting Screws, Terminal Screws, Adjustment Knob
