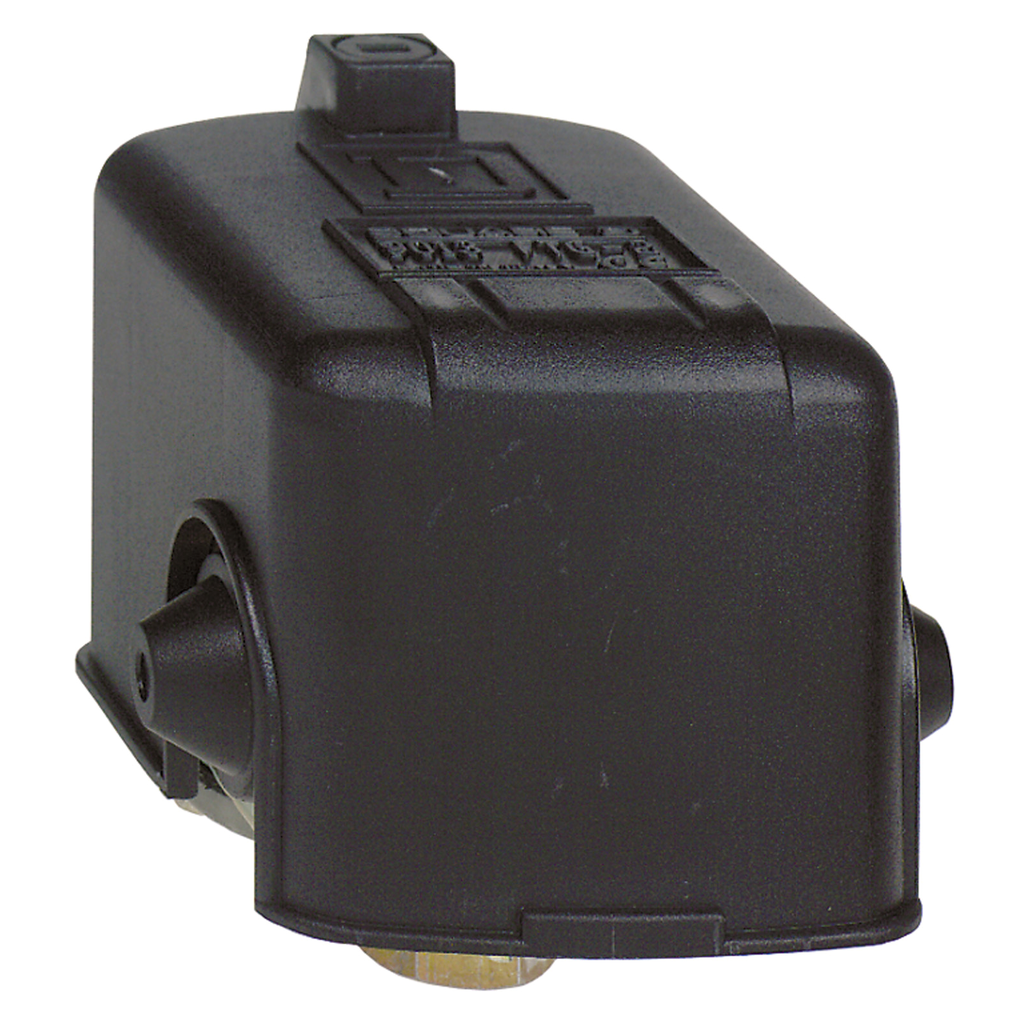

Pressure sensors XM, pressure switch FYG 10.5 bar, adjustable scale 2 thresholds, 2NC | Mayer Electric

SQUARE D . FYG32

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NamePressure sensors XM, pressure switch FYG 10.5 bar, adjustable scale 2 thresholds, 2NC | Mayer Electric
UPC338911052447
Weight0.34
WeightUnitkg
Weight_AttribNet Weight
depth, length102.0
height94.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Pressure-switch-FYG-10-5-bar-adjustable-scale-2-thresholds-2NC-338911052447
jsonUrlData2c1e6fa9a-bb1d-4341-8011-abde00f75a2f
length_AttribDepth
moq, multiple, tierMinQty11
MPNFYG32
qtyInStock0
SKUSQDFYG32
tierPrice10.00
width72.0
width_AttribWidth
Contacts Type And Composition2 NC snap action
Pressure Sensor Typeelectromechanical pressure sensor
Short-Circuit Protection20 A cartridge fuse gG
Range Of ProductOsiSense XM
Line Rated Current10 A 250 V AC EN 60730-1
Pressure Switch Type Of Operationregulation between 2 thresholds
Cable Entry2 cable entries with grommet
Local Displaywithout
Pressure Sensor NameFYG
Fluid Connection TypeG 1/4 (female) ISO 228
Electrical Connectionscrew-clamp terminals 1 x 1...2 x 2 mm?
Pressure Sensor Size10.5 bar
Controlled Fluidfresh water 0-70 ?C) || sea water 0-70 ?C)
Settinginternal
Scale Typeadjustable differential
Electrical Circuit Typepower circuit
Warranty18 months
Repeat Accuracy2 %
Pressure Actuatordiaphragm
Height94 mm
Terminal Block Type4 terminals
Terminals Description Iso N?1(3-4)NC || (1-2)NC
Possible Differential Minimum At Low Setting1.9 bar
Possible Differential Minimum At Middle Setting2.1 bar
Possible Differential Maximum At Low Setting3 bar
Maximum Operating Rate10 cyc/mn
Adjustable Range Of Switching Point On Falling Pressure2.6-8.2 bar
Materials In Contact With Fluidnitrile || nylon 6/6 || zinc plated steel
Net Weight0.34 kg
[Uimp] Rated Impulse Withstand Voltage6 kV EN/IEC 60947-1
Electrical Durability100000 cycles 10 cyc/mn
Maximum Permissible Pressure - Per Cycle13 bar
[Ui] Rated Insulation Voltage500 V EN/IEC 60947-1
Possible Differential Maximum At Middle Setting3.2 bar
Mechanical Durability1000000 cycles
Operating Positionany position
Enclosure MaterialPS
Adjustable Range Of Switching Point On Rising Pressure5.6-10.5 bar
Possible Differential Minimum At High Setting2.3 bar
Width72 mm
Maximum Permissible Accidental Pressure15 bar
Depth102 mm
Possible Differential Maximum At High Setting3.4 bar
Destruction Pressure20 bar
Rohs Exemption Information, Mercury FreeYes
Environmental DisclosureENVPEP111211EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI111210EN
Eu Rohs DirectiveCompliant
Ambient Air Temperature For Operation0-45 ?C
StandardsEN/IEC 60730 || CE
Ip Degree Of ProtectionIP20 conforming to EN/IEC 60529
Ambient Air Temperature For Storage-30-80 ?C
Electrical Shock Protection Classclass I IEC 536
Protective TreatmentTC
