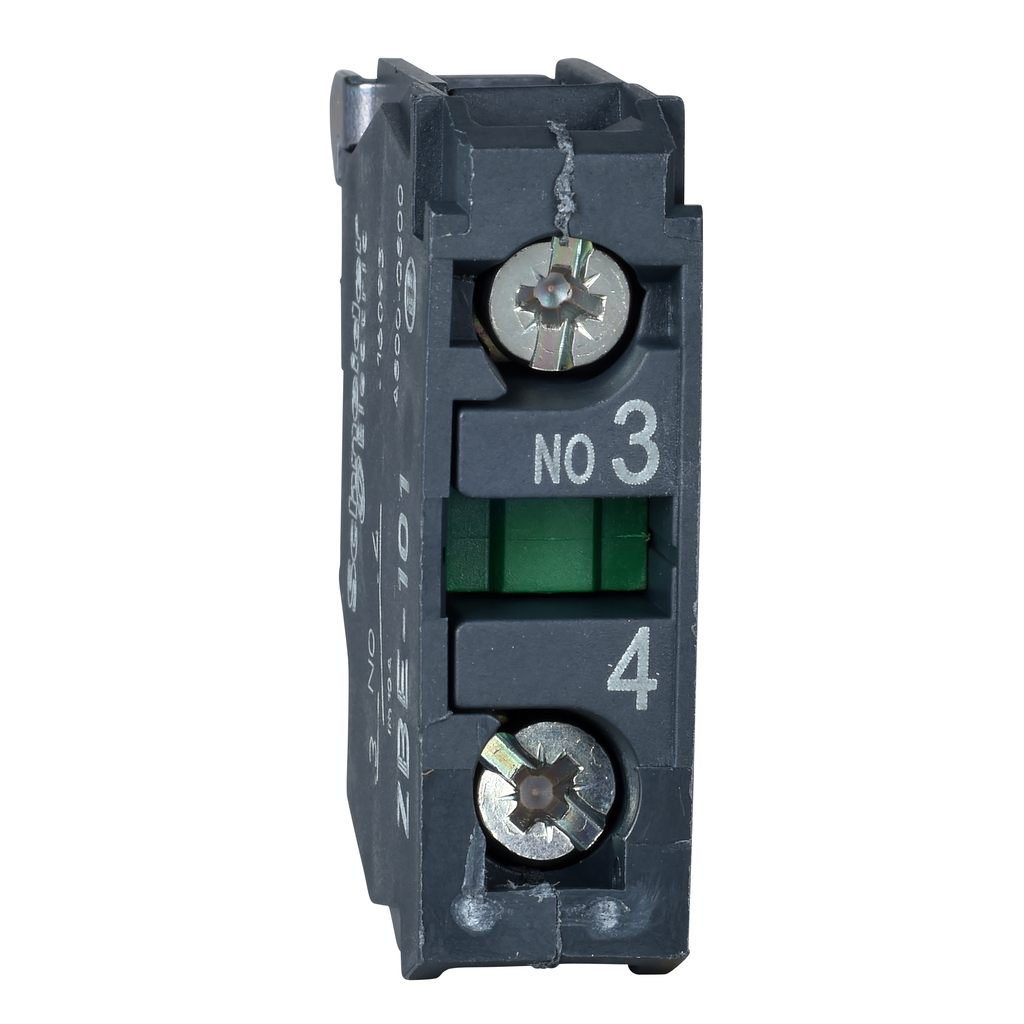

Contact block, Harmony XB4, Harmony XB5, single contact, standard contact, silver alloy, screw clamp terminals, 1NO | Mayer Electric

SQUARE D . SQDZBE101TQ

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Extra Product NameContact block, Harmony XB4, Harmony XB5, single contact, standard contact, silver alloy, screw clamp terminals, 1NO | Mayer Electric
UPC3389110896268
jsonUrlData/Product/SQUARE-D-Contact-block-Harmony-XB4-Harmony-XB5-single-contact-standard-contact-silver-alloy-screw-clamp-terminals-1NO-3389110896268
jsonUrlData216ba2d92-90e8-4335-888d-aeea00592a78
moq, multiple, tierMinQty11
MPN, SKUSQDZBE101TQ
qtyInStock0
tierPrice114.35
Contacts Usagestandard contacts
Sale Per Indivisible Quantity100
Range Of ProductHarmony XB4 || Harmony XB5
Contact Operationslow-break
Contact Block Typesingle
Product Or Component Typecontact block
Device Short NameZBE
Ip Degree Of ProtectionIP20 IEC 60529
Warranty18 months
Mounting Of Blockfront mounting
Contacts Type And Composition1 NO
[Ui] Rated Insulation Voltage600 V 3)EN 60947-1
Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60947-5-1
Operating Force2.3 N NO changing electrical state
Operating Travel2.6 mm NO changing electrical state) || 4.3 mm total travel)
Contacts Materialsilver alloy (Ag/Ni)
Mechanical Durability10000000 cycles
Positive Openingwithout
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
Tightening Torque0.8-1.2 N.m EN 60947-1
Shape Of Screw Headcross pozidriv No 1 || slotted flat ? 4 mm || slotted flat ? 5.5 mm
[Uimp] Rated Impulse Withstand Voltage6 kV EN 60947-1
China Rohs RegulationX
Circularity ProfileENVEOLI1808008EN
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1808008EN
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingDi-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product CertificationsCCC || LROS (Lloyds register of shipping) || BV || GL || DNV || GOST || UL || CSA
Ambient Air Temperature For Operation, Ambient Air Temperature For Storage-40-70 ?C
StandardsUL 508 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || JIS C8201-1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Protective TreatmentTH
