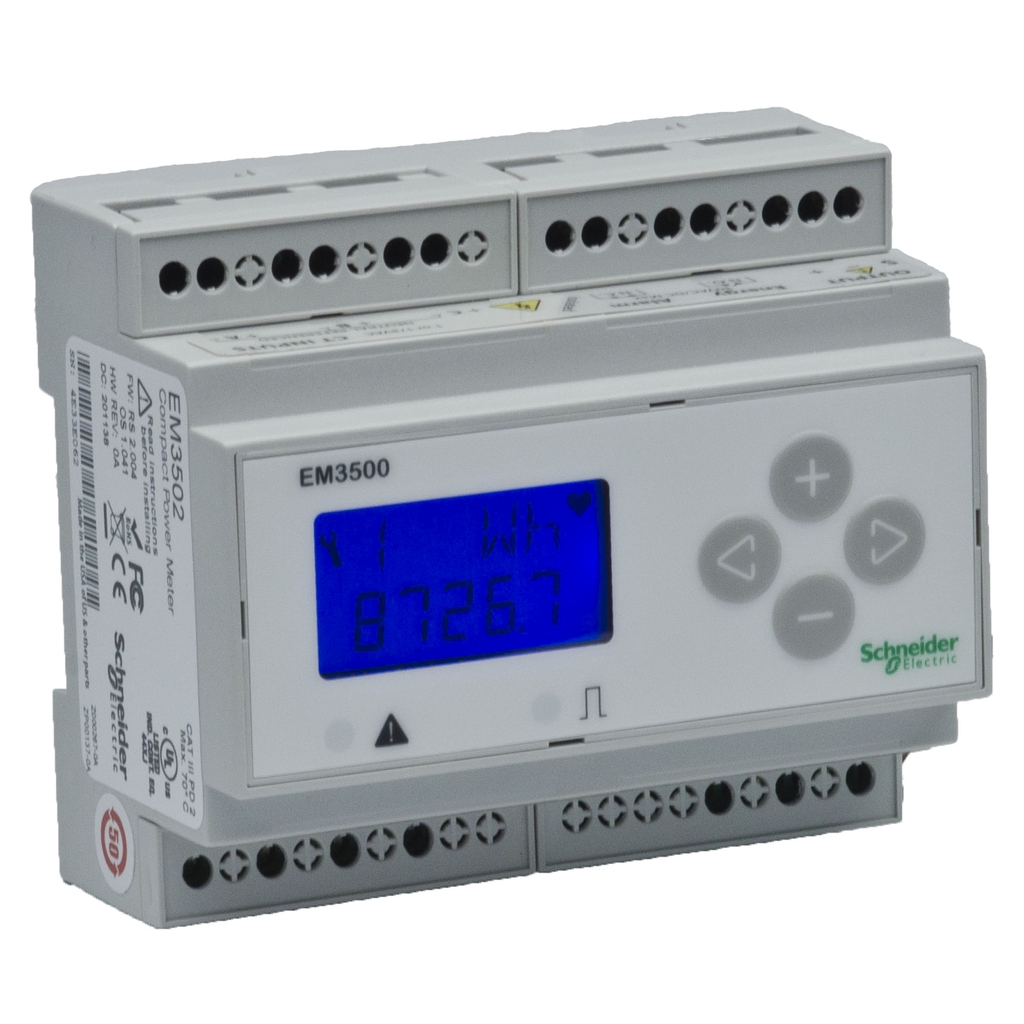

PowerLogic EM3500 DIN rail meter - pulse - current transformer | Mayer Electric

SQUARE D . SQDMETSEEM3502

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NamePowerLogic EM3500 DIN rail meter - pulse - current transformer | Mayer Electric
UPC, MPN, SKUSQDMETSEEM3502
color, Colordark grey
depth, length59.0
height91.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-PowerLogic-EM3500-DIN-rail-meter-pulse-current-transformer-SQDMETSEEM3502
jsonUrlData2a22c20dc-ee5b-4cec-a373-aeea00567b8d
length_AttribDepth
moq, multiple, tierMinQty11
qtyInStock0
tierPrice10.0
width107.0
width_AttribWidth
Product Or Component Typeenergy meter
Product NamePowerLogic EM3500
RangePowerLogic
Device Short NameEM3502
Metering Typedemand power P, Q, S || peak demand power PM, QM, SM || current I1, I2, I3, Iavg || voltage U21, U32, U13, V1, V2, V3
Network Frequency60 Hz || 50 Hz
[Ue] Rated Operational Voltage90...347 V AC 50/60 Hz between phase and neutral UL || 156...600 V AC 50/60 Hz between phases UL || 90...300 V AC 50/60 Hz between phase and neutral CE || 125...300 V DC
Output Voltage30 V AC/DC
StandardsUL 508 || CSA C22.2 No 14-05 || IEC 61010-1
Number Of Outputs2 pulse || 1 alarm output
Mounting SupportDIN rail
Power Consumption In Va5-5 VA 347 V AC between phase and neutral) || 5-5 VA 600 V AC between phases)
Product CertificationsCE IEC 61010 || cULus UL 508
Communication Servicetotal cumulated active energy || total cumulated energy
Ride-Through Time100 ms 120 V AC
Display Digits5
Tamperproof Of Settingsprotected by access code
Measurement Current5-32000 A
Information Displayedstatus and alert || communication with system || input/output status || error || Tx activity || Rx activity || instant power per usage
Function Availablefixed or rolling block
Mounting Modeclip-on || by screws
Local SignallingRed LED threshold reached || Green flashing LED output signal
Power Consumption In W3 W 300-300 V
Measurement Accuracypower +/- 0.2 % || energy +/- 0.2 %
Technology Typeelectronic
Poles Description3P + N
Data Recordingenergy consumption logs
Analogue Input Typesplit core current transducer 0.333 V or 1 V
Display TypeBacklit LCD
Device Applicationpartial meter || sub billing
Accuracy Classclass 0.2S power IEC 62053-22 || class 0.2S energy IEC 62053-22 || class 0.2S power ANSI C12.20 || class 0.2S energy ANSI C12.20
Rated Voltage90-347 V
Rohs Exemption Information, Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Eu Rohs DirectiveCompliant
Ambient Air Temperature For Operation-30-70 ?C
Height91 mm
9 Mm Pitches12
Ambient Air Temperature For Storage-40-85 ?C
Relative Humidity0-95 %
Width107 mm
Depth59 mm
