OD4020-12LB Orion Fans | Fans, Thermal Management | DigiKey

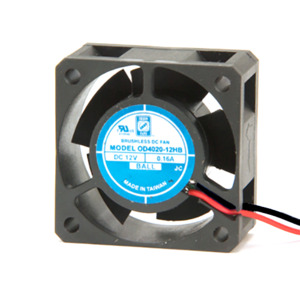

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 6.5 CFM (0.182m?/min) 2 Wire Leads
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Orion Fans |
|---|---|
| Extra Product Name | OD4020-12LB Orion Fans | Fans, Thermal Management | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | OD4020-12LB |
| qtyInStock | 235 |
| SKU | 1053-1216-ND |
| Part Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 40mm L x 40mm H |
| Width | 20.00mm |
| Air Flow | 7.0 CFM (0.196m?/min) |
| Static Pressure | 0.190 in H2O (47.3 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features, Ingress Protection, Weight | - |
| Noise | 24.0dB |
| RPM | 6200 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | -4 ~ 176?F (-20 ~ 80?C) |
| Approval Agency | cURus, TUV |
| Current Rating (Amps) | 0.070A |
| Voltage Range | 7 ~ 14VDC |
| Material - Frame, Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Lifetime @ Temp | 60000 Hrs @ 45?C |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 1053-1216-ND | 1 | 235 | 1 | |
| Hotenda | H1901416 | 1 | 122 | 1 | 1 @ $9.98, 10 @ $9.50, 25 @ $8.91, 100 @ $7.90, 250 @ $7.42, 500 @ $7.28 |
 Carlton Bates Company | 40308486322 | 1 | 1 | 1 @ $0.00 | |
 Newark | 89AH2563 | 1 | 36 | 1 | 1 @ $7.44, 5 @ $7.44, 10 @ $7.44, 25 @ $7.44, 50 @ $7.44, 100 @ $7.44 |
| Digi-Key | 2621121 | 1 | 651 | 1 | 1 @ $12.36, 10 @ $11.80, 25 @ $11.10, 50 @ $10.68, 100 @ $9.83, 250 @ $9.20, 500 @ $9.06 |
 Mouser | 670-OD402012LB | 1 | 14 | 1 | 1 @ $11.89, 10 @ $11.35, 100 @ $9.45, 1000 @ $8.36, 10000 @ $8.71 |
| Onlinecomponents.com | OD4020-12LB | 3 | 1 | 3 @ $9.91, 100 @ $8.49, 1000 @ $7.86, 10000 @ $7.86 | |
| OD4020-12LB-ORIN | 1 | 1 | 1 @ $13.12 | ||
| 10141877 | 1 | 1 | 1 @ $11.15 | ||
| us.rs-online.com | 70859250 | 1 | 1 | 1 @ $13.50, 3 @ $12.81 | |
 Newark | 51AK1687 | 1 | 1 | 1 @ $17.94, 50 @ $16.44, 100 @ $15.20, 250 @ $14.24, 500 @ $13.43 |
