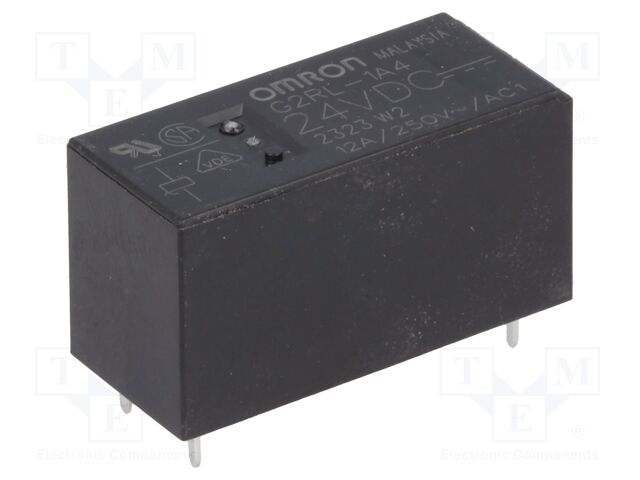

OMRON OCB G2RL-1A4 24VDC | Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 12A
OMRON OCB G2RL-1A4 24VDC | Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 12
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | OMRON OCB |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | OMRON OCB G2RL-1A4 24VDC | Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 12A |
| atoms, moq, multiple | 1 |
| jsonUrlData | 30fa5c4147d69b41ba5ae1a0e35483a4. |
| jsonUrlData2 | ada81af797285a667913 |
| keywords | OMRON OCB, G2RL-1A4 24VDC, G2RL-1A4-24DC |
| MPN | G2RL-1A4 24VDC |
| qtyInStock | 0 |
| SKU | G2RL-1A4-24DC |
| snippet | OMRON OCB G2RL-1A4 24VDC | Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 12 |
| Type of relay | electromagnetic |
| Contacts configuration | SPST-NO |
| Rated coil voltage | 24V DC |
| Contact current max | 12A |
| AC contacts rating @R | 12A / 250V AC |
| DC contacts rating @R | 12A / 24V DC |
| Switched voltage | max. 300V DC, |
| Relay variant | miniature |
| Mounting | PCB |
| Coil resistance | 1.44k? |
| Operate time | 15ms |
| Body dimensions | 29x12.7x15.7mm |
| Release time | 5ms |
| Operating temperature | -40...85?C |
| Relay series | G2RL |
| Contact resistance | 100m? |
| Terminal pitch | 3.5mm |
| Coil current | 16.7mA |
| Enclosure description | hermetic seal |
| Leads | for PCB |
