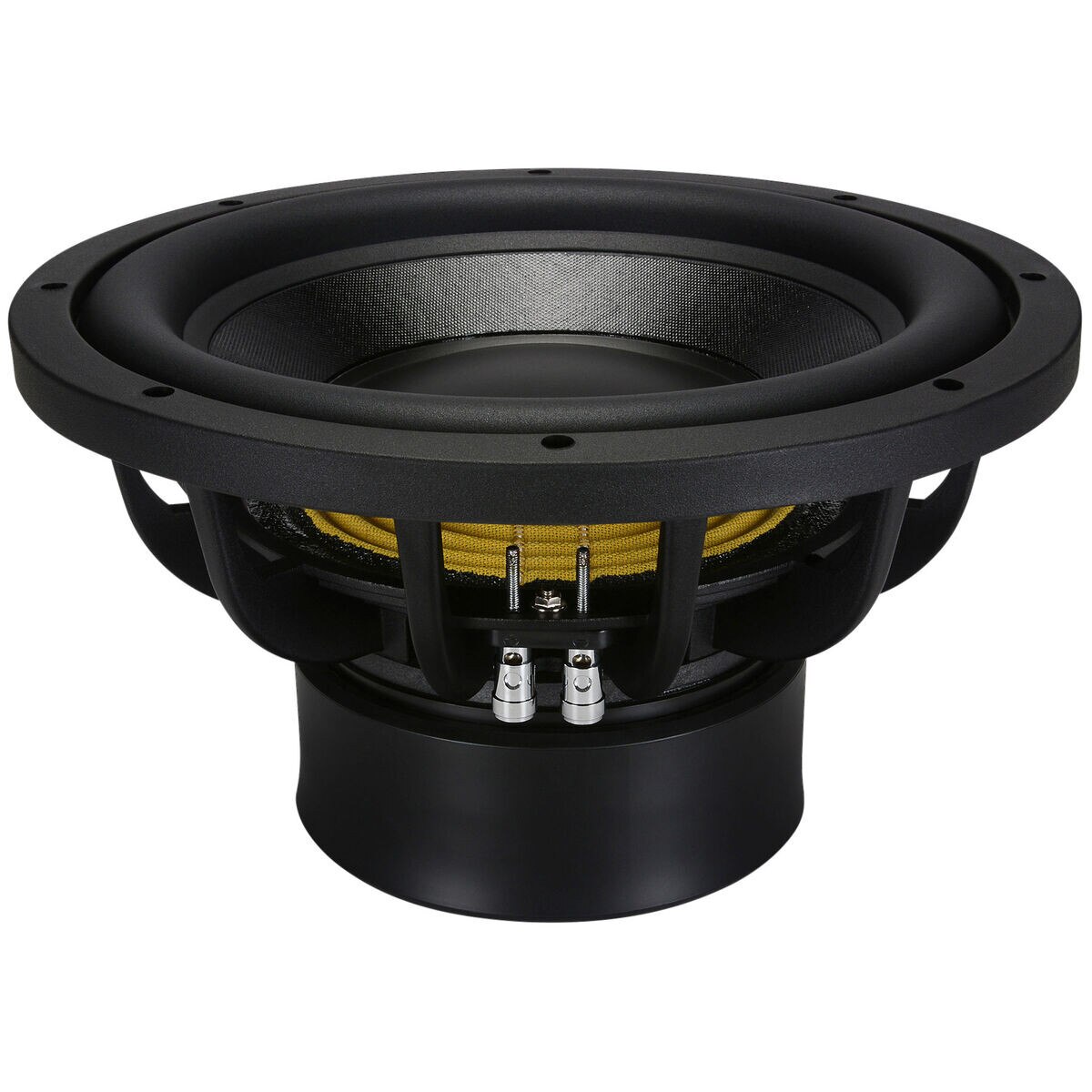

Dayton Audio TS320D-4 12" Titanic Mk 4 Subwoofer 4 Ohm

Dayton Audio TS320D-4 12" Titanic Mk 4 Subwoofer 4 Ohm. Part Number: 295-403 by Dayton Audio.

Dayton Audio . TS320D-4

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandDayton Audio
DimensionUnitinch
Extra Product NameDayton Audio TS320D-4 12" Titanic Mk 4 Subwoofer 4 Ohm
UPC848791000904
Weight22
WeightUnitlbs
depth, length6.33
diameter, height, width12.5
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelTS320D-4
qtyInStock0
SKU, Part Number295-403
snippetDayton Audio TS320D-4 12" Titanic Mk 4 Subwoofer 4 Ohm. Part Number: 295-403 by Dayton Audio.
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.73
Power Handling (RMS)500 Watts
Power Handling (MAX)1000 Watts
Impedance4?
Frequency Response24 to 500Hz
Sensitivity91.9dB 2.83V/1m
Voice Coil Diameter2.5"
Resonant Frequency (Fs)36.3Hz
DC Resistance (Re)3?
Voice Coil Inductance (Le)3.5mH
Mechanical Q (Qms)5.28
Electromagnetic Q (Qes)0.56
Total Q (Qts)0.5
Compliance Equivalent Volume (Vas)1.55ft?
Mechanical Compliance of Suspension (Cms)0.13mm/N
BL Product (BL)13.5T?m
Maximum Linear Excursion (Xmax)19mm
Surface Area of Cone (Sd)498cm?
Cone MaterialPaper / Kevlar
Surround MaterialSantoprene?
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter12.5"
Baffle Cutout Diameter11"
Depth6.33"
# Mounting Holes8
Sealed Volume1.03ft?
Sealed F349Hz
Vented Volume2.73ft?
Vented F325Hz
