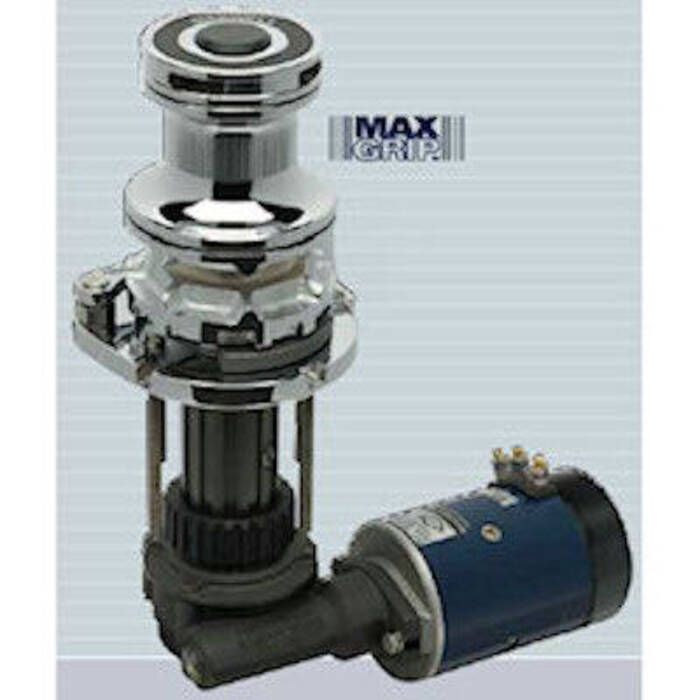

Maxwell VW 2500 Vertical Windlass Kit | Defender
The VW Series of anchor winches is designed for traditional rope and chain combination anchor rodes where manual transfer of the rode from the rope warping drum to the chainwheel is required. The gypsy/chain wheel on the VW1000, VW1500, VW2500 and VW3500
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Maxwell |
|---|---|
| Extra Product Name | Maxwell VW 2500 Vertical Windlass Kit | Defender |
| Weight | 84 |
| WeightUnit | lbs |
| Weight_Attrib | Net Weight (DC) |
| keywords | marine supplies, outboard motors, marine hardware, inflatable boats, marine electronics |
| moq, multiple, tierMinQty1 | 1 |
| MPN | VW250012V054 |
| qtyInStock | 0 |
| SKU | 874905 |
| tierPrice1 | 3622.99 |
| Static Hold | 4840 lbs (2200 kg) |
| Maximum Pull | 2500 lbs (1135 kg) |
| Chain Short Link | 5/16" - 7/16" (8 - 11mm) |
| Line Speed (Normal Working Load) | 50'/min (15 m/min) |
| Power Supply | 12V DC |
| Hydraulic Pressure | 2000 PSI (138 bar) |
| Hydraulic Flow | 9.5 US Gal/min (36 L/min) |
| Motor Power | 1200W |
| Net Weight (DC) | 84 lbs (38 kg) |
| Net Weight (Hydraulic) | 70 lbs (32 kg) |
| A | 3 11/16" (94 mm) |
| B | 9 15/16" (251 mm) |
| C | 3 5/32" (80 mm) |
| D | 8 5/16" (210 mm) |
| E | 11 1/8" (281 mm) |
| F | 7 1/2" (190 mm) |
| G (Standard Deck Clearance) | 4" (100 mm) |
| G (EDC - Extra Deck Clearance) | 8" (200 mm) |
| I | 7 5/8" (194 mm) |
| Price | {{% print(Common.getFormattedPrice(product.price)) }} |
| Qty | {{product.qty}} {{product.selling_unit_of_measure}} |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 874905 | 1 | 1 | 1 @ $3622.99 |
