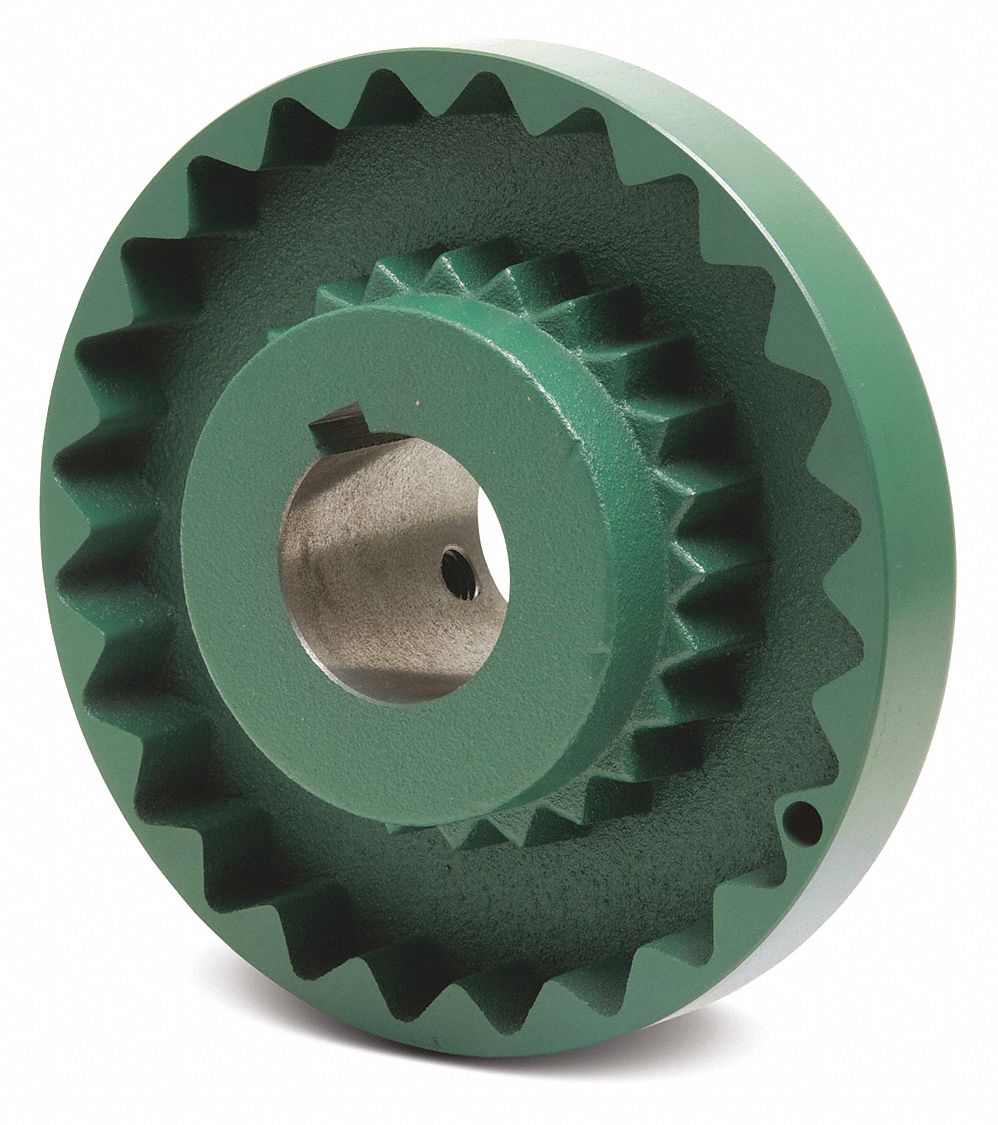

9S134 9SX1 3/4 SF FLANGE

9S134 9SX1 3/4 SF FLANGE

TB Woods . 9S134

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerTB Woods
CategoryL1Shaft Couplings and Collars
CategoryL2Gear Couplings
CategoryL3Complete Units
Extra Product Name, snippet9S134 9SX1 3/4 SF FLANGE
moq, multiple, tierMinQty11
MPN9S134
qtyInStock0
SKU338608
tierPrice175.85
Bore size1 3/4 in
Dimension (in) (S)3/8
Set screw distance0.375
Setscrew size, location3/8 16 UNC, One over KS and at 90 Degrees
Setscrew length (in)3/4
Max speed, Max RPM3750
Setscrew length0.75
Max angular gap misalignment0.109 (in) with EPDM/Neoprene Sleeves and 0.028 (in) with Hytrel Sleeves
Dimension (in) (D), Outside diameter, Flange diameter6.35
SF hub diameter3.625
Material typeHigh strength cast iron
Setscrew Torque Requirment (ft lbs), Setscrew torque requirement23
Horsepower Rating at 100 RPM57
Min compatible bore size0.4375
Power rating at 100 RPM2.8 kW with EPDM or Neoprene sleeve, 8.5 kW with Hytrel sleeve
Screw sizeSetscrew
Max parallel misalignment11
Dimension (in) (T)1 1/32
Keyseat (in)3/8 x 3/16
Component WR?0.217
Screw typeFlange, Type S
Torque rate2,340 (in-lbs) with EPDM or Neoprene sleeve; 7,200 (in-lbs) with Hytrel sleeve
SF hub length, Dimension (in ) (E)25/32
Bore tolerance (in)+0.0005 to +0.0015
Dimension (in) (C)2 13/32
Max angular misalignment1? with EPDM/neoprene sleeves and 1/4? with hytrel sleeves
Bore tolerance+.0005 to +.0015
Length through bore2.40625
Coupling size9
Torque2,340 in-lb with EPDM or Neoprene sleeve, 7,200 in-lb with Hytrel sleeve
Component WR2 (lbs ft2)0.2170
Bore size (in)1 3/4
Construction typeFinish bore with keyway
Keyseat size3/8 in x 3/16 in
Dimension (in) (H)3 5/8
Max compatible bore size2.875
SF flange length1.03125
