Motor Reversing Switch, 3 Phase AC Motor Reversing Switch, Reversing Drum Switch for Electric Motors Up To 20 HP, Rear Panel Mount | SourceASI

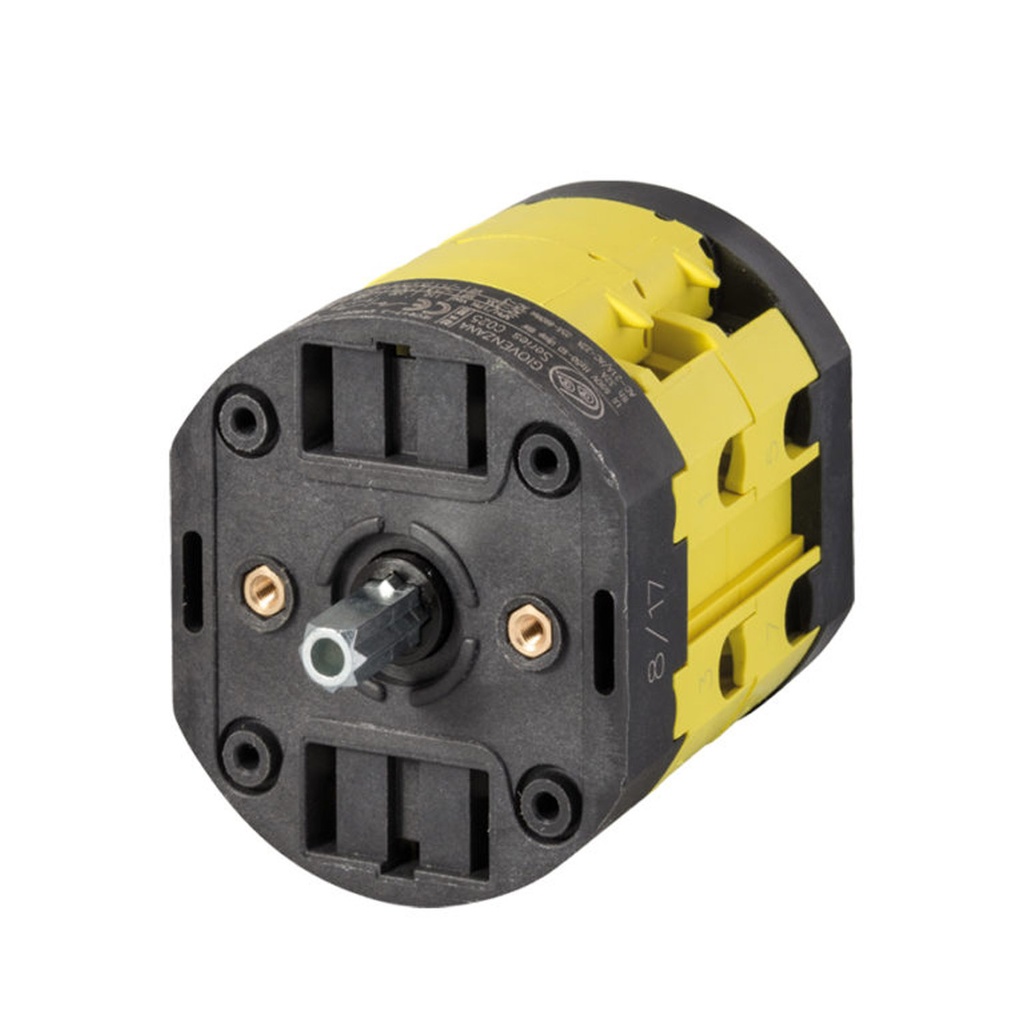

The ASI C0320012R is a rear panel mounted reversing switch or drum switch for 3 phase motors up to 20 horsepower. The ASI C0320012R reversing drum switch has 3 poles and can be used with 208vac, 480vac, and 600vac 3 phase motors. This 3 phase motor reversing switch features self cleaning contacts, silver alloy plating and a UL94V0 thermoplastic housing. With a UL508 listing of 600 Vac, 32A this forward and reverse motor switch is ideal for four phase motors ranging from 7.5 HP to 20 HP based on voltage. The C0320012R ac motor reversing switch is a compact design to save space, the wire connect
