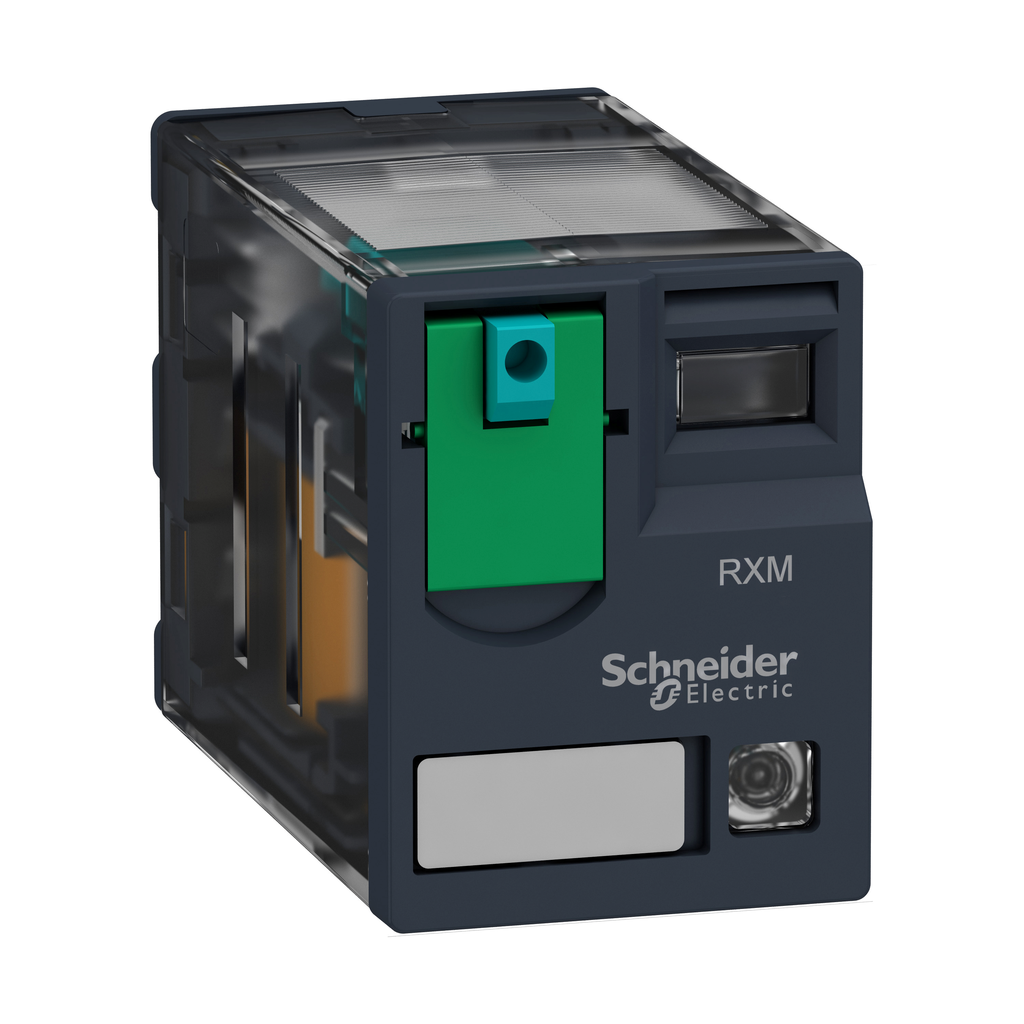

Harmony, Miniature plug-in relay, 10 A, 3 CO, with LED, with lockable test button, 12 V DC | Mayer Electric

Mayer Electric Supply . RXM3AB2JD

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameHarmony, Miniature plug-in relay, 10 A, 3 CO, with LED, with lockable test button, 12 V DC | Mayer Electric
UPC785901542834
Weight0.037
WeightUnitkg
Weight_AttribNet Weight
height79.0
height_AttribCad Overall Height
jsonUrlData/Product/SCHNEIDER-ELECTRIC-Miniature-plug-in-relay-10-A-3-CO-LED-12-V-DC-785901542834
jsonUrlData255d55bf4-e2c0-4ed0-bc45-abd200630ad9
length78.45
length_AttribCad Overall Depth
moq, multiple, tierMinQty11
MPNRXM3AB2JD
qtyInStock0
SKUSQDRXM3AB2JD
tierPrice110.43
Utilisation Coefficient20 %
[Uc] Control Circuit Voltage12 V DC
Range Of ProductHarmony Electromechanical Relays
Product Or Component Typeplug-in relay
Status Ledwith
Control Typelockable test button
Series NameMiniature
Contacts Type And Composition3 C/O
Device Short NameRXM
Warranty18 months
Maximum Switching Capacity2500 VA/280 W
Safety Reliability DataB10d = 100000
Continuous Output Current6.7 A
Protection CategoryRT I
Test Levelslevel A
Contacts MaterialAgNi
Reset Time, Operating Time20 ms
Shape Of Pinflat
Net Weight0.037 kg
Cad Overall Height79 mm
Maximum Switching Voltage250 V IEC
Average Resistance160 Ohm 20 ?C +/- 10 %
Device Presentationcomplete product
Average Coil Consumption0.9 W
Rated Operational Voltage Limits9.6...13.2 V DC
[Ie] Rated Operational Current10 A 28 V DC) NO IEC || 10 A 250 V AC) NO IEC || 5 A 28 V DC) NC IEC || 5 A 250 V AC) NC IEC || 10 A 30 V DC) UL || 10 A 277 V AC) UL
[Ui] Rated Insulation Voltage250 V IEC || 300 V CSA || 300 V UL
Electrical Durability100000 cycles resistive
Mechanical Durability10000000 cycles
Operating Positionany position
Load Current10 A 250 V AC || 10 A 28 V DC
Drop-Out Voltage Threshold>= 0.1 Uc
[Uimp] Rated Impulse Withstand Voltage4 kV 1.2/50 ?s
Minimum Switching Capacity170 mW 10 mA, 17 V
Cad Overall Depth78.45 mm
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP2106019EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Circularity ProfileENVEOLI2106019EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsGOST || Lloyd's || CE || CSA || UL
StandardsUL 508 || EN/IEC 61810-1 || CSA C22.2 No 14
Pollution Degree2
Ambient Air Temperature For Operation-40-55 ?C
Dielectric Strength1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact || 2000 V AC between poles
Vibration Resistance3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Shock Resistance10 gnin operation || 30 gnnot operating
Ip Degree Of ProtectionIP40 conforming to EN/IEC 60529
Ambient Air Temperature For Storage-40-85 ?C
