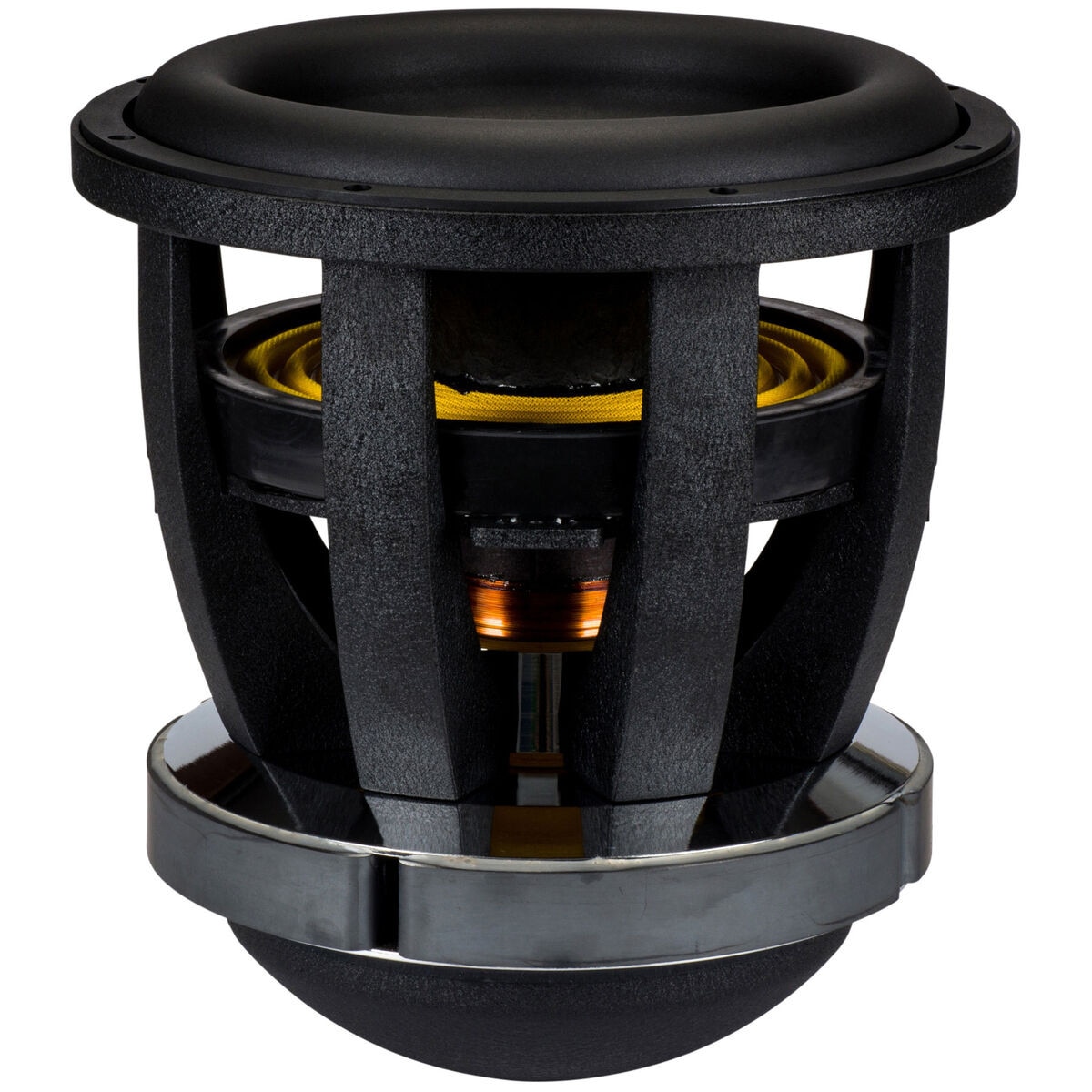

RE Audio XXX12-v2-4 12" Cast Frame DVC Subwoofer Driver 4+4 Ohm

RE Audio XXX12-v2-4 12" Cast Frame DVC Subwoofer Driver 4+4 Ohm. Part Number: 268-8151 by RE Audio.

RE Audio . XXX12-V2-4

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandRE Audio
DimensionUnitinch
Extra Product NameRE Audio XXX12-v2-4 12" Cast Frame DVC Subwoofer Driver 4+4 Ohm
UPC611892992306
Weight87
WeightUnitlbs
depth, length12.75
diameter, height, width13.0
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPNXXX12-V2-4
qtyInStock0
SKU, Part Number268-8151
snippetRE Audio XXX12-v2-4 12" Cast Frame DVC Subwoofer Driver 4+4 Ohm. Part Number: 268-8151 by RE Audio.
ModelXXX12-v2-4
Unit of MeasureEach
Nominal Diameter12"
Power Handling (RMS)2000 Watts
Power Handling (MAX)4000 Watts
Impedance8?
Sensitivity83.76dB 2.83V/1m
Resonant Frequency (Fs)21Hz
DC Resistance (Re)4.2?
Mechanical Q (Qms)3.29
Electromagnetic Q (Qes)0.46
Total Q (Qts)0.404
Compliance Equivalent Volume (Vas)2.61ft?
BL Product (BL)18.16T?m
Maximum Linear Excursion (Xmax)54mm
Surface Area of Cone (Sd)480cm?
Cone MaterialPaper / Kevlar
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter13"
Baffle Cutout Diameter11.5"
Depth12.75"
# Mounting Holes8
Sealed Volume0.97ft?
Vented Volume1.95ft?

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com268-815111
