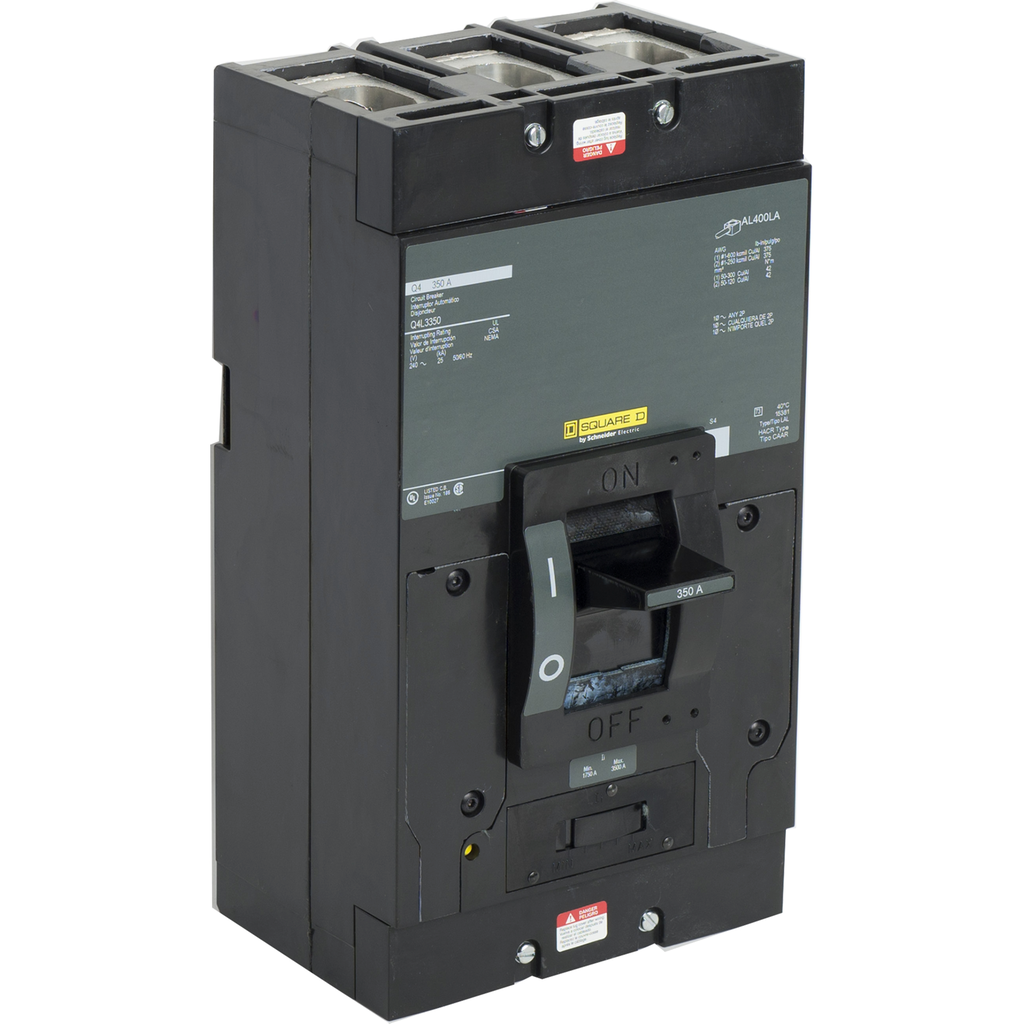

Circuit breaker, LA, LH, Q4 molded case, unit mount, thermal-magnetic, 350A, 3 pole, 25kA, 240VAC | Mayer Electric

Mayer Electric Supply . Q4L3350

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitinch
Extra Product NameCircuit breaker, LA, LH, Q4 molded case, unit mount, thermal-magnetic, 350A, 3 pole, 25kA, 240VAC | Mayer Electric
UPC785901649274
depth, length5.84
height11.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-QAL-Molded-Case-Circuit-Breaker-240VAC-350A-3P-785901649274
jsonUrlData255518895-0ebe-42bd-9294-abd20062c77c
length_AttribDepth
moq, multiple, tierMinQty11
MPNQ4L3350
qtyInStock0
SKUSQDQ4L3350
tierPrice13667.01
width6.0
width_AttribWidth
Trip Unit Technologythermal-magnetic
Product Or Component Typecircuit breaker
Warranty18 months
Terminal IdentifierAL400LA
Height11 in
Mounting Modeunit mount
Tightening Torque42-42 N.m 50-300 mm? (AWG 1...600 kcmil) || 42-42 N.m 50-120 mm? (AWG 1...250 kcmil)
Breaking Capacity CodeQ4
Magnetic Tripping Current3500-3500 A
Poles Description3P
Line Rated Current350 A
Width6 in
Electrical Connectionlugs load || lugs line
Depth5.84 in
Magnetic Hold Current1750 A
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information, Mercury Free, Pvc FreeYes
Environmental DisclosureENVPEP1410004EN
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach RegulationReference contains Substances of Very High Concern above the threshold
Halogen Content PerformanceHalogen free plastic parts product
Product CertificationsUL Listed || IEC || CSA

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDQ4L3350111 @ $3667.01
