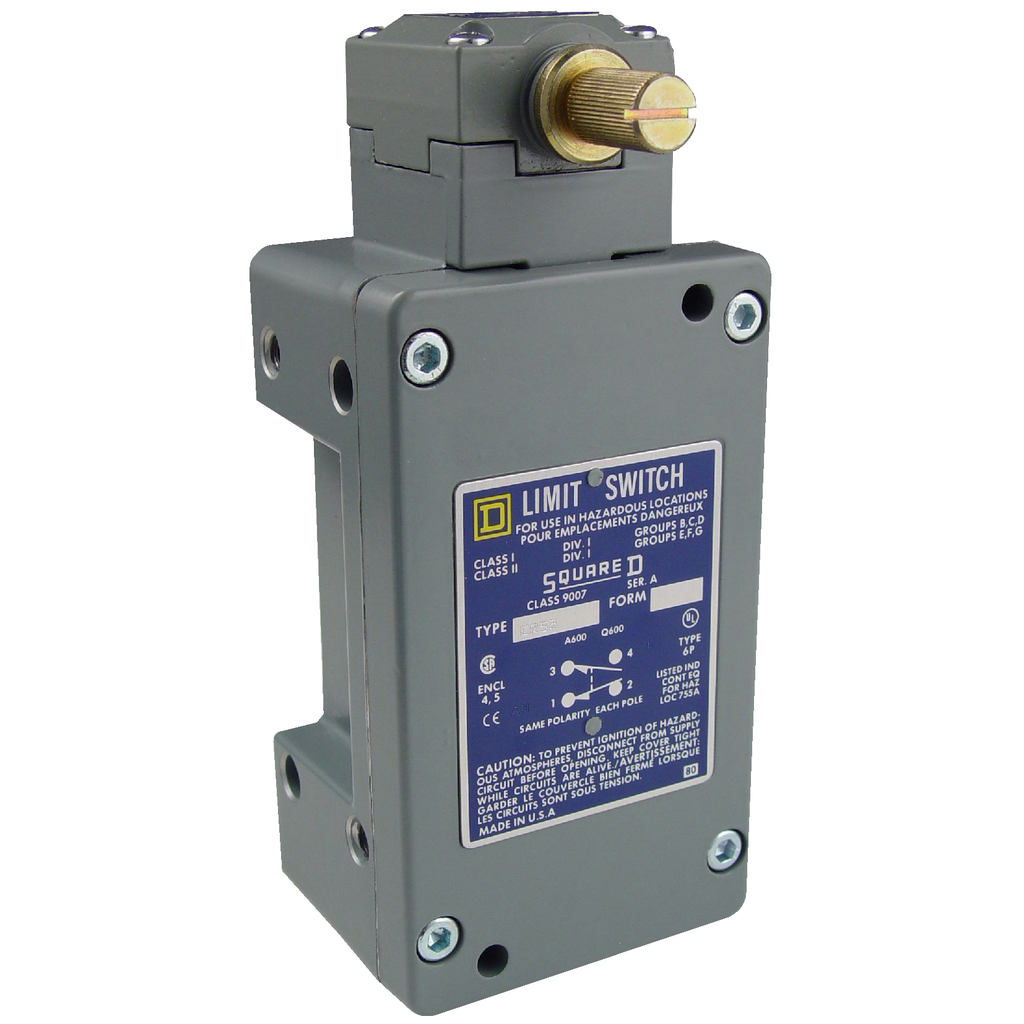

As an Amazon Associate, we earn from qualifying purchases. Home » Mayer Electric Supply » 9007CR53N2 Limit switch, 9007, 600 V 10amp c +options | Mayer Electric Mayer Electric Supply . 9007CR53N2 Gallery Attributes Brand name, Manufacturer name, ManufacturerMayer Electric Supply DimensionUnitinch Extra Product NameLimit switch, 9007, 600 V 10amp c +options | Mayer Electric UPC785901783671 Weight2.5 WeightUnitlbs Weight_AttribNet Weight depth, length2.79 height12.2 height_AttribHeight jsonUrlData/Product/SQUARE-D-LIMIT-SWITCH-600V-10AMP-C-OPTIONS-785901783671 jsonUrlData2be8f267e-270d-4a52-8a38-abd200617f46 length_AttribDepth moq, multiple, tierMinQty1, Sale Per Indivisible Quantity, Number Of Poles1 MPN9007CR53N2 qtyInStock0 SKUSQD9007CR53N2 tierPrice1500.91 width2.72 width_AttribWidth Switch Actuationfrom left and right || CW and CCW Type Of Approachlateral approach, 2 programmable directions Series Nameheavy duty Contacts Type And CompositionNC-NO Movement Of Operating Headrotary Range Of Product9007 Body Typefixed Level Or ClassClass I Division 1 Groups B/C/D || Class II Division 1 Groups E/F/G Positive Opening, Local Signallingwithout Electrical Connectionscrew-clamp terminals AWG 22...AWG 12), 1-2 Contact Operationsnap action Product Specific Applicationhazardous location box Fixing Modeby the body Cable Entry1 entry for 1/2" - 14 NPT ANSI B1.20.1 Product Or Component Typelimit switch Materialmetal Device Short Name9007CR Type Of Operatorzinc spring return without operating lever low torque)9007C lever Head Typerotary head Warranty18 months Maximum Displacement Angle90 ? Height6.1-6.1 in Terminals Description Iso N?1(1-2)NC || (3-4)NO [Ui] Rated Insulation Voltage600 V 3)UL 508 contact block || 600 V 3)CSA C22.2 No 14 contact block Tripping Angle10 ? Short-Circuit Protection10 A CC non-time delay [Ie] Rated Operational Current1.2 A 600 V AC, A600 NEMA || 1.5 A 480 V AC, A600 NEMA || 3 A 240 V AC, A600 NEMA || 6 A 120 V AC, A600 NEMA || 0.1 A 600 V DC, Q600 NEMA || 0.27 A 250 V AC, Q600 NEMA || 0.55 A 125 V DC, Q600 NEMA Contacts Materialsilver contacts Mechanical Durability10000000 cycles Maximum Actuation Speed90 ft/min with 45? cam angle, levers only || 130 ft/min with 30? cam angle, levers only Body Materialaluminium [Ithe] Conventional Enclosed Thermal Current10 A Contact FormForm Z Switch FunctionSPDT-DB [Uimp] Rated Impulse Withstand Voltage2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA Width2.72 in Depth2.79 in Head Materialzinc Minimum Torque For Tripping1.56 lbf.in Electrical Durability1000000 cycles Net Weight2.5 lb(US) Repeat Accuracy+/- 0.002 in linear travel of cam Environmental DisclosureENVPEP111160EN Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope Reach RegulationReference contains Substances of Very High Concern above the threshold Ambient Air Temperature For Storage-20-185 ?F Environmental Characteristicstandard environment Nema Degree Of ProtectionNEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250 Ambient Air Temperature For Operation-20-185 ?F hazardous location Electrical Shock Protection Classclass 0 IEC 61140 Shock Resistance60 gn 9 ms IEC 60068-2-27 Vibration Resistance25 gn 10-150 Hz)IEC 60068-2-6 Protective Treatmentepoxy powder coat Ip Degree Of ProtectionIP67 conforming to IEC 60529 Distributor offers SellerSKUMOQIn stockMultiplePrices mayerelectric.comSQD9007CR53N2111 @ $500.91
