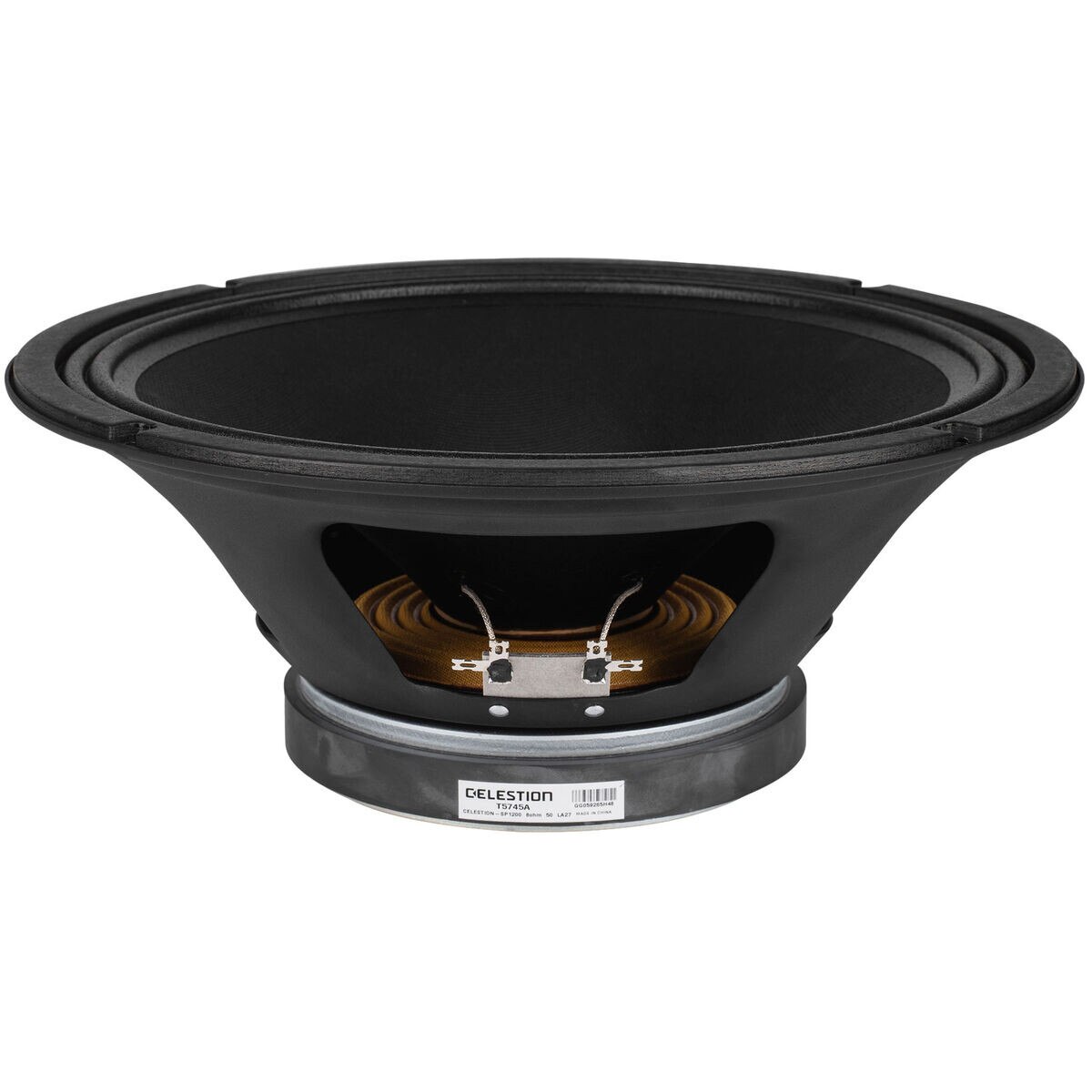

Celestion T5745A SP-1200 12" 300 Watt Professional Woofer 8 Ohm

Celestion T5745A SP-1200 12" 300 Watt Professional Woofer 8 Ohm. Part Number: 299-2372 by Factory Buyouts.

Factory Buyouts . SP-1200

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandFactory Buyouts
DimensionUnitinch
Extra Product NameCelestion T5745A SP-1200 12" 300 Watt Professional Woofer 8 Ohm
UPC848864055176
Weight9
WeightUnitlbs
depth, length4.5
diameter, height, width12.375
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelSP-1200
qtyInStock0
SKU, Part Number299-2372
snippetCelestion T5745A SP-1200 12" 300 Watt Professional Woofer 8 Ohm. Part Number: 299-2372 by Factory Buyouts.
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.75
Power Handling (RMS)300 Watts
Power Handling (MAX)600 Watts
Impedance8?
Frequency Response60 to 3,000Hz
Sensitivity96.7dB 2.83V/1m
Voice Coil Diameter2.5"
Resonant Frequency (Fs)58.54Hz
DC Resistance (Re)5.24?
Voice Coil Inductance (Le)0.55mH
Mechanical Q (Qms)6.8
Electromagnetic Q (Qes)0.51
Total Q (Qts)0.47
Compliance Equivalent Volume (Vas)2.697ft?
Mechanical Compliance of Suspension (Cms)0.174mm/N
BL Product (BL)12.711T?m
Diaphragm Mass Inc Airload (Mms)42.418g
Surface Area of Cone (Sd)558.64cm?
Cone Material, Surround MaterialPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter12.375"
Baffle Cutout Diameter11.375"
Depth4.5"
# Mounting Holes4
Sealed Volume0.862ft?
Sealed F3113.8Hz
Vented Volume4.184ft?
Vented F347.28Hz
