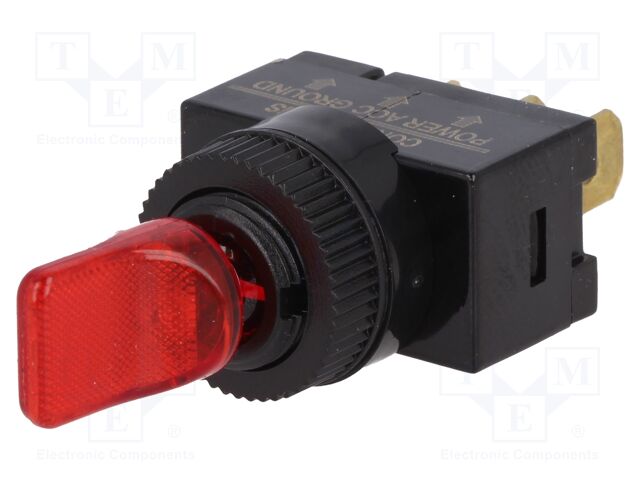

SCI R13-110L4 | Switch: toggle; Pos: 2; SPST; OFF-ON; 20A/12VDC; Toggle: flat; 50m?
SCI R13-110L4 | Switch: toggle; Pos: 2; SPST; OFF-ON; 20A/12VDC; Toggle: flat; 50m
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | SCI |
|---|---|
| DimensionUnit | mm |
| Extra Product Name | SCI R13-110L4 | Switch: toggle; Pos: 2; SPST; OFF-ON; 20A/12VDC; Toggle: flat; 50m? |
| atoms, moq, multiple, tierMinQty1 | 1 |
| diameter, length, width | 12.2 |
| height | 17.0 |
| height_Attrib | Knob height |
| jsonUrlData | d89c54200766979e4318266ef62f2356.5 |
| jsonUrlData2 | 80234afb5aa4310f1d39 |
| length_Attrib, width_Attrib | Mounting hole diameter |
| MPN | R13-110L4 |
| qtyInStock | 167 |
| SKU | R13-110L4-01 |
| snippet | SCI R13-110L4 | Switch: toggle; Pos: 2; SPST; OFF-ON; 20A/12VDC; Toggle: flat; 50m |
| tierMinQty2 | 5 |
| tierMinQty3 | 20 |
| tierMinQty4 | 100 |
| tierMinQty5 | 200 |
| tierPrice1 | 1.8 |
| tierPrice2 | 1.5 |
| tierPrice3 | 1.3 |
| tierPrice4 | 1.1 |
| tierPrice5 | 0.9 |
| Type of switch | toggle |
| Number of positions, Stable positions number | 2 |
| Contacts configuration | SPST |
| Switching method | OFF-ON |
| DC contacts rating @R | 20A / 12V DC |
| Leads | 6,3x0,8mm connectors |
| Terminals plating | nickel |
| Kind of toggle | flat |
| Mounting hole diameter | ?12.2mm |
| Knob height | 17mm |
| Max contact resistance: | 50m? |
| Body dimensions | 24.4x14x23.9mm |
| Actuator material | plastic |
| Panel thickness | max. 2mm |
| Test voltage | 1.5kV |
| Lever colour, Backlight colour | red |
| Illumination | LED |
| Manufacturer series | R13-110 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| R13-110L4-01 | 1 | 167 | 1 | 1 @ $1.80, 5 @ $1.50, 20 @ $1.30, 100 @ $1.10, 200 @ $0.90 |
