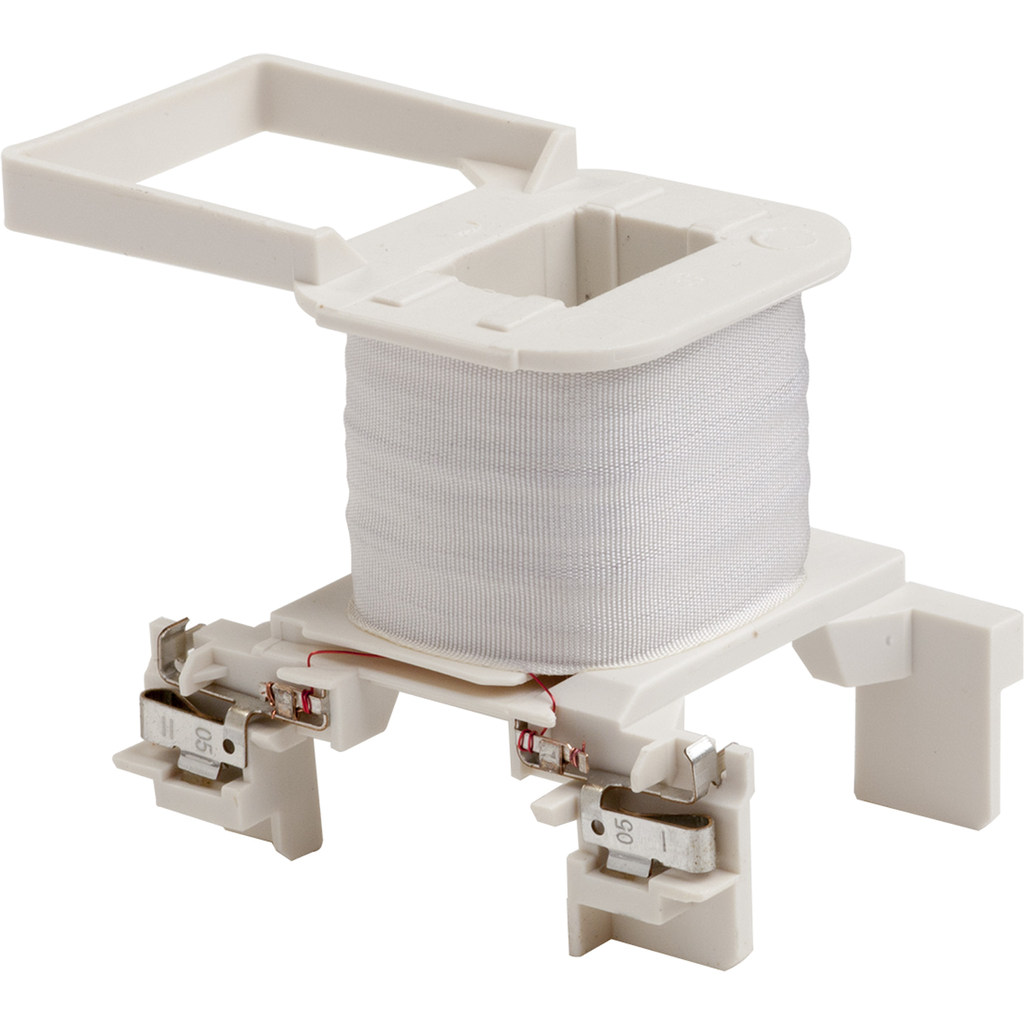

TeSys Deca - contactor coil - LXD3 - 220 V AC 50/60 Hz for 40? 65 A contactor | Mayer Electric

Mayer Electric Supply . LXD3M7

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
Extra Product NameTeSys Deca - contactor coil - LXD3 - 220 V AC 50/60 Hz for 40? 65 A contactor | Mayer Electric
UPC785901811374
Weight0.07
WeightUnitkg
Weight_AttribNet Weight
jsonUrlData/Product/SCHNEIDER-ELECTRIC-TeSys-D-contactor-coil-LXD3-220-V-AC-50-60-Hz-for-40-65-A-contactor-785901811374
jsonUrlData2386d8914-f0a5-4846-9548-abd200627846
moq, multiple, tierMinQty11
MPNLXD3M7
qtyInStock0
SKUSQDLXD3M7
tierPrice158.66
Average Resistance182 Ohm 20 ?C
[Uc] Control Circuit Voltage220 V AC 50/60 Hz
Control Circuit TypeAC 50/60 Hz
Product Or Component Typecontactor coil
RangeTeSys
Inductance Of Closed Circuit10 H
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability6 Mcycles
Product CompatibilityLC1D40A...D65A || LC1DT80A || LC1DT60A
Device Short NameLXD3
Warranty18 months
Control Circuit Voltage Limitsdrop-out 0.3...0.6 Uc 50/60 Hz 60 ?C) || operational 0.8...1.1 Uc 50 Hz 60 ?C) || operational 0.85...1.1 Uc 60 Hz 60 ?C)
Inrush Power In Va160-160 VA 60 Hz 0.75 20 ?C) || 160-160 VA 50 Hz 0.75 20 ?C)
Coil Technologywithout built-in suppressor module
Hold-In Power Consumption In Va15-15 VA 60 Hz 0.3 20 ?C) || 15-15 VA 50 Hz 0.3 20 ?C)
Heat Dissipation4-5 W 50/60 Hz
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingAntimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation-5-60 ?C
Net Weight0.07 kg

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDLXD3M7111 @ $58.66
