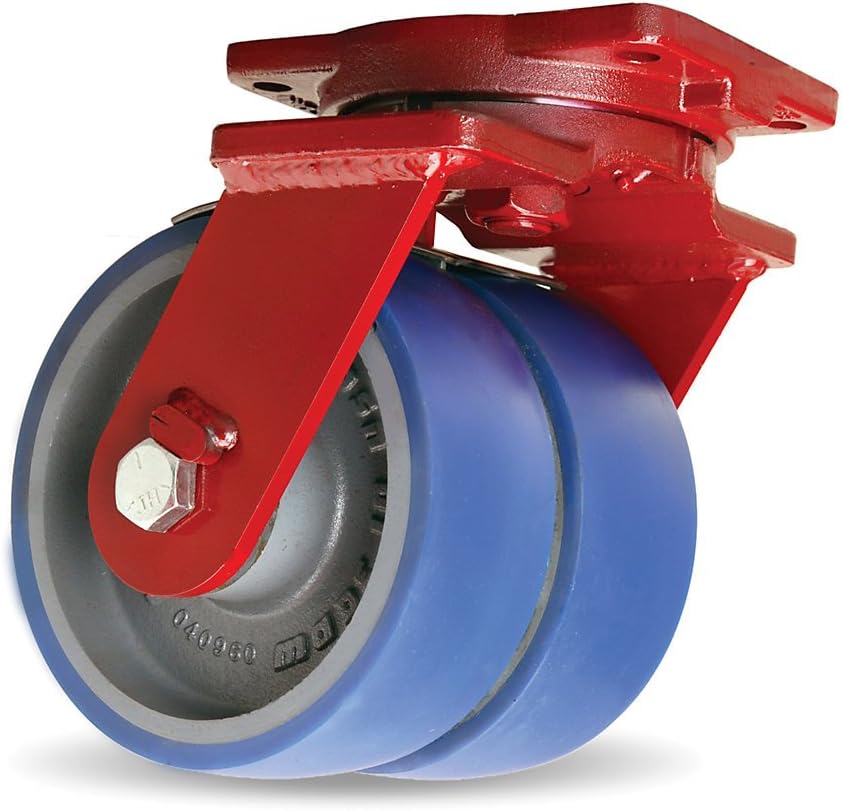

Extra Heavy Duty Dual-Wheel Swivel Caster, 6" x 3" Ergo-Glide Polyurethane (85A) on Cast Iron Wheel

These forged steel dual wheel casters are built on the reliable Extra Heavy Duty (EHD) swivel caster platforms, which means flexibility if you need to match an existing bolthole pattern or overall height dimension. Dual wheel casters address the problem of how to minimize overall height and maximize load capacity on resilient tread wheels. Dual wheel casters also improve stability and swivel more easily than wider-face single wheels because differential action reduces the "scrubbing" effect of soft treads against the floors. All models have forged steel mounting plate and horn base with 1" int

Hamilton . S-EHD2-63SPT

Gallery

Attributes

Brand name, Manufacturer name, ManHamilton
Manufacturer, Brand, Label, Publisher, StudioHamilton Hamilton Casters
CategoryId6740
DimensionUnitinch
GraingerSku, MPN, Part Number, Model, Keyword, ModelNumber, Model_number, PartNumber, Part_numberS-EHD2-63SPT
Extra Product NameExtra Heavy Duty Dual-Wheel Swivel Caster, 6" x 3" Ergo-Glide Polyurethane (85A) on Cast Iron Wheel
UPCNone
UnitOfMeasureEA
Weight37 2.31 37.0 37.00
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
countryOfOriginUS
extendedLead20
extendedQty-2
height, length, moq, multiple, tierMinQty1, width, Case, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity1
jsonUrlData924526ffbdad25e5923b
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG3737700
tierPrice1578.99
urlhttps://www.zoro.com/hamilton-extra-heavy-duty-dual-wheel-swivel-caster-6-x-3-ergo-glide-polyurethane-85a-on-cast-iron-wheel-s-ehd2-63spt/i/G3737700/
Product GroupHome Improvement
Wheel Dia6
Wheel Width3
Mounting Bolt Dia0.5
Plate Size6-1/8 x 7-1/2
Mounting Height8.5
Caster Wheel ShapeStandard
Caster Wheel/Tread Material, Material, MaterialTypePolyurethane
Load Rating3600
Number of Wheels2
Replacement WheelW-630-SPT-3/4
StandardsICWM
Non-Marking, Thread GuardsNo
Inside Bolt Hole Spacing4 1/8 x 6 1/8
Caster Core MaterialCast iron
Caster Temp Range-50 to 200 deg(F)
Caster Plate Hole PatternD
Core ColorGray
Frame FinishPowder Coat
Caster Wheel BearingsTapered
Item, Caster Product GroupSwivel Caster
Caster Frame MaterialForged Steel
SeriesDual Wheel Extra Heavy Duty
ASIN, AsinB00UVPPZ86 B0876CHMKH
BindingMisc.
Bullet_pointCapacity: 3600 lbs. Overall Height: 8-1/2" Wheel Dia.xW: 6x3"
CatTools & Home Improvement
CatId228013
CatTree228013 468240 551240
ClassificationId511228
Colorblue
Decimal_value6.0
DisplayNameHardware
FeatureCapacity: 3600 lbs.
Height1000 3.0 3.00 500 75 8.5 8.50
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleHamilton Casters Hamilton Extra HD Forged Swivel 6 x 3 Poly-Soft Tapered 3600 Lb. Caster Hamilton Extra Heavy Duty Dual Wheel Caster - 6"Dia.X3"W Wheel - 3600-Lb. Capacity - Poly-Soft Polyurethane Wheel - Tapered Bearing - Swivel - Blue
Item_package_weight, Item_weight37.0
Item_type_keywordplate-casters
Length0.0 0.00 6.0 8.5 8.50
Linkhttps://m.media-amazon.com/images/I/515-d283vkL._SL75_.jpg https://m.media-amazon.com/images/I/515-d283vkL.jpg https://m.media-amazon.com/images/I/61tIMPO1VYL.jpg
ProductGroupBISS Basic Home Improvement
ProductTypeADHESIVES_AND_SEALANTS INDUSTRIAL_CASTERS
ProductTypeNameADHESIVES_AND_SEALANTS INDUSTRIAL_CASTERS TOOLS
Product_descriptionHamilton Casters Hamilton Extra HD Forged Swivel 6 x 3 Poly-Soft Tapered 3600 Lb. Caster These forged steel dual wheel casters are built on the reliable Extra Heavy Duty (EHD) swivel caster platforms, which means flexibility if you need to match an existing bolthole pattern or overall height dimension. Dual wheel casters address the problem of how to minimize overall height and maximize load capacity on resilient tread wheels. Dual wheel casters also improve stability and swivel more easily than wider-face single wheels because differential action reduces the "scrubbing" effect of soft treads against the floors. All models have forged steel mounting plate and horn base with 1" integrally forged kingpins and precision tapered thrust bearings. Legs are 3/8" thick. Main Load Bearing - large diameter raceway CNC-machined for HPIa,, Swivel Technology. Secondary Load Bearing - precision tapered roller bearing capped with grease retainer.
Product_site_launch_date2015-03-18T15:02:36.042Z 2020-04-16T14:37:53.352Z
SkuS-CH-63SPT
URLhttp://ecx.images-amazon.com/images/I/515-d283vkL._SL75_.jpg https://images-na.ssl-images-amazon.com/images/I/01RmK+J4pJL._SL75_.gif https://m.media-amazon.com/images/I/515-d283vkL._SL75_.jpg
Unitinches pounds
Unitsinches pixels pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width0.0 0.00 1000 3.0 500 6.0 6.00 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG3737700111 @ $578.99
ZoroG908548911
AmazonSCB00UVPPZ86111 @ $651.04
National Supply Network186830211
motionindustries.com05865822111 @ $893.90
ZoroG3283360111 @ $756.38
