Rwm

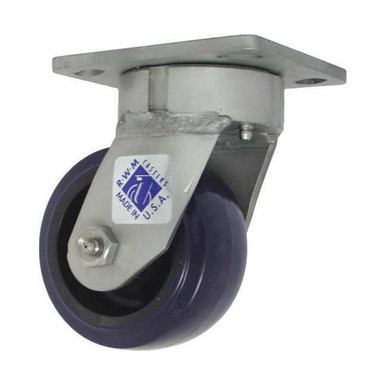

Swivel, Corrosion-Resistant Kingpinless Plate Caster, Load Rating 900 lb, Swivel Lock Type No Lock Included, Wheel Dia.

Rwm . S65-UPR-0620-S

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameRwm
DimensionUnitinch
GraingerSku53CH63
UPCNone
UnitOfMeasureEA
Weight7.7
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead26
extendedQty-2
height10
jsonUrlData924526ffbdad25e5923b
length, width11.5
moq, multiple, tierMinQty1, Number of Wheels1
MPNS65-UPR-0620-S
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG7315397
tierPrice1211.69
urlhttps://www.zoro.com/rwm-kingpinless-rgd-caster-polyurthn-900-lb-s65-upr-0620-s/i/G7315397/
Caster Brake Included, Thread Guards, Extended Lead, Includes Thread GuardsNo
Caster Load Rating RangeLight-Medium Duty
Caster Sub-TypeSwivel
Caster Wheel Shape, Tread ShapeStandard
Caster Wheel/Tread Material, Wheel/Tread MaterialPolyurethane
Load Rating900 lb
Overall Height7-1/2"
Wheel Dia6 in
Wheel Width, Swivel Radius2 in
Caster Core MaterialPolypropylene
Caster Product GroupSwivel Caster
Caster Wheel Bearings, Wheel Bearing TypeRoller
Mounting Bolt Dia3/8 in
IncludesComplete Caster
Plate Size, Caster Plate Size4" x 4-1/2"
Wheel Color, Wheel/Tread ColorBlue
Non-Marking, Caster Temp Range AvailableYes
Inside Bolt Hole Spacing2-5/8 in x 3 in
Outside Bolt Hole Spacing3 in x 3-5/8 in
Caster Plate Thickness, Plate Thickness3/16"
Caster Swivel Lock Type, Swivel Lock TypeNo Lock Included
Plate Caster Bolt Hole Pattern, Caster Plate Hole Pattern, Mounting Plate Bolt Hole PatternB
Caster Min Temp-40 Degrees F
Replacement WheelMfr. No. UPR-0620-08
ItemCorrosion-Resistant Kingpinless Plate Caster
StandardsICWM, ISO 9001
Caster Frame Material, Frame Material, Frame FinishStainless Steel
ApplicationAerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Max Temp175 Degrees F
Core ColorGray
Caster Temp Range-40 Degrees to 175 Degrees F
Caster Raceway, Swivel Raceway TypeSingle Ball
Durometer, Wheel/Tread Hardness95 Shore A
Caster Brake TypeNo Brake Included
Mounting Height7 1/2 in
Number of Mounting Holes4
Wheel/Tread Hardness RatingFirm
Swivel ConstructionKingpinless
Load Rating Range300 to 999 lb
Mounting Plate Size4 in x 4 1/2 in
Wheel Core MaterialPlastic
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG7315397111 @ $211.69
simsupply.comZO-G73153971611 @ $250.97
