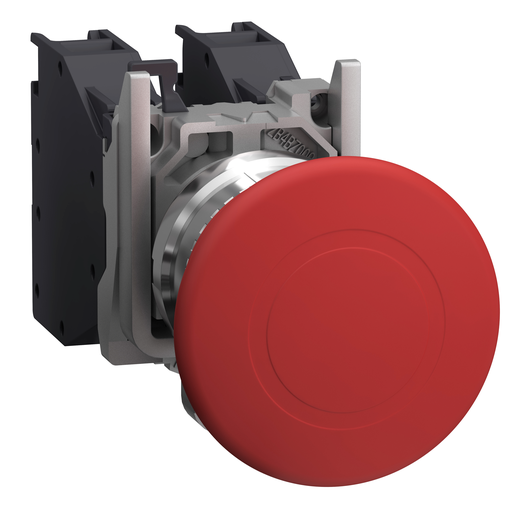

Emergency switching off push button, Harmony XB4 - ATEX D, metal, 22mm, red mushroom 40mm, tripping/latching, push-pull, 1NO + 1NC | Mayer Electric

SQUARE D . SQDXB4BT845GEX

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameEmergency switching off push button, Harmony XB4 - ATEX D, metal, 22mm, red mushroom 40mm, tripping/latching, push-pull, 1NO + 1NC | Mayer Electric
UPC3606489486051
Weight0.142
WeightUnitkg
Weight_AttribNet Weight
depth, length96.5
height30.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Emergency-switching-off-push-button-Harmony-XB4-ATEX-D-metal-22mm-red-mushroom-40mm-tripping-latching-push-pull-1NO-1NC-3606489486051
jsonUrlData2ba9c11eb-5575-413d-b4d0-aeea005804cc
length_AttribDepth
moq, multiple, tierMinQty1, Sale Per Indivisible Quantity1
MPN, SKUSQDXB4BT845GEX
qtyInStock0
tierPrice1201.31
width46.2
width_AttribWidth
Resetpush-pull
Gas Zonezone 1 - 2
Contacts Type And Composition1 NO + 1 NC
Range Of ProductHarmony XB4
Bezel Materialchromium plated metal
Dust Zonezone 21 - 22
Operator Profilered mushroom ? 40 mm
Mounting Diameter22 mm
Type Of Operatortrigger action and mechanical latching
Product Or Component Typecomplete emergency stop push-button
Device Short NameXB4
Fixing Collar Materialzamak
Connections - Terminalsscrew clamp terminals, 2 x 1.5 mm? with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm? without cable end EN/IEC 60947-1
Contacts Usagestandard
Height30 mm
[Ui] Rated Insulation Voltage415 V
Embedding Depth58 mm
Contact Operationslow-break
Fixing Center>= 30 x 40 mm support panel) 1-6 mm
Mechanical Durability5000000 cycles
Positive Openingwith EN/IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
Shape Of Signaling Unit Headround
MarkingII 2 GD || Ex tb IIIC Db || Ex db eb IIC Gb
Width46.2 mm
Depth96.5 mm
Tightening Torque0.8-1.2 N.m EN 60947-1
Net Weight0.142 kg
Device Mountingfixing hole 22.5 mm +/- 0.2 mm EN/IEC 60947-1
China Rohs RegulationX
Circularity ProfileENVEOLI1808008EN
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1808008EN
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingDi-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product CertificationsINERIS 04ATEX9004U
Ambient Air Temperature For Operation-20-65 ?C
Ambient Air Temperature For Storage-40-70 ?C
Standards : EN/IEC 60079-0:2009 || EN/IEC 60079-1:2009 || EN/IEC 60079-7:2009 || EN/IEC 60079-312009 || UL 60079-0 || UL 60079-1 || UL 60079-31 || ANSI/ISA 12.12.01 || CSA C22.2 No 213
Protective TreatmentTH
Ip Degree Of ProtectionIP65 IEC 60529
