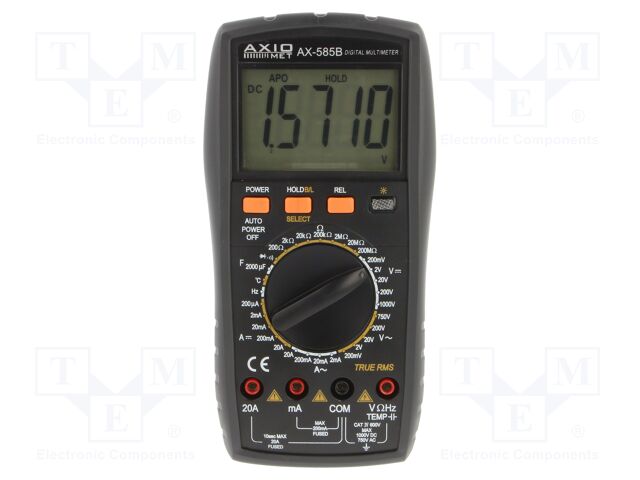

AXIOMET AX-585B | Digital multimeter; LCD; 4,5 digit (19999); 3x/s; True RMS AC

AXIOMET AX-585B | Digital multimeter; LCD; 4,5 digit (19999); 3x/s; True RMS A

AXIOMET . AX-585B

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerAXIOMET
CategoryL1Workplace Equipment
CategoryL2Measuring Instruments
CategoryL3Digital Multimeters
CategoryL4Portable digital multimeters
DimensionUnitmm
Extra Product NameAXIOMET AX-585B | Digital multimeter; LCD; 4,5 digit (19999); 3x/s; True RMS AC
Weight400
WeightUnitg
Weight_AttribWeight with battery
atoms, moq, multiple1
height32.0
height_AttribDisplay height 1
jsonUrlData8e67addb196d3534384712fe8cb68cb3.
jsonUrlData274e157d61405d5e06c20
keywordsAXIOMET, AX-585B
MPN, SKUAX-585B
qtyInStock294
snippetAXIOMET AX-585B | Digital multimeter; LCD; 4,5 digit (19999); 3x/s; True RMS A
Type of meterdigital multimeter
MeasurementAC current,
Kind of display usedLCD
Display parameters4,5 digit (19999)
Sampling3x/s
DC voltage measuring range10?V...200mV/
DC voltage measuring accuracy?(0,1% + 5 digits)
AC voltage measuring range100?V...2V/
Bandwidth for AC voltage measurements40...400Hz
DC current measuring range0.01...200?A/
AC current measuring range1?A...20mA/
DC current measuring accuracy?(0,5% + 4 digits)
AC current measuring accuracy?(1,5% + 25 digits)
Bandwidth for AC current measurements40...200Hz
True effective value measurementTrue RMS AC
Resistance measuring range1...200?/
Resistance measuring accuracy?(0,4% + 5 digits)
Capacitance measuring range1pF...20nF/
Capacitance measuring accuracy?(3,5% + 10 digits)
Frequency measuring range1...20kHz/
Frequency measuring accuracy?(3% + 150 digits)
Temperature measuring range-10...1000?C
Temperature measurement accuracy?(0,8% + 40 digits)
Temperature measurement resolution0.1?C
Diode test1mA @3V
Continuity testacoustic indication,
Weight with battery400g
Conform to the normCAT IV 600V
Related items5790D,
Dimensions (W x H x D)97x189x35mm
Display height 132mm

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEAX-585B12941
