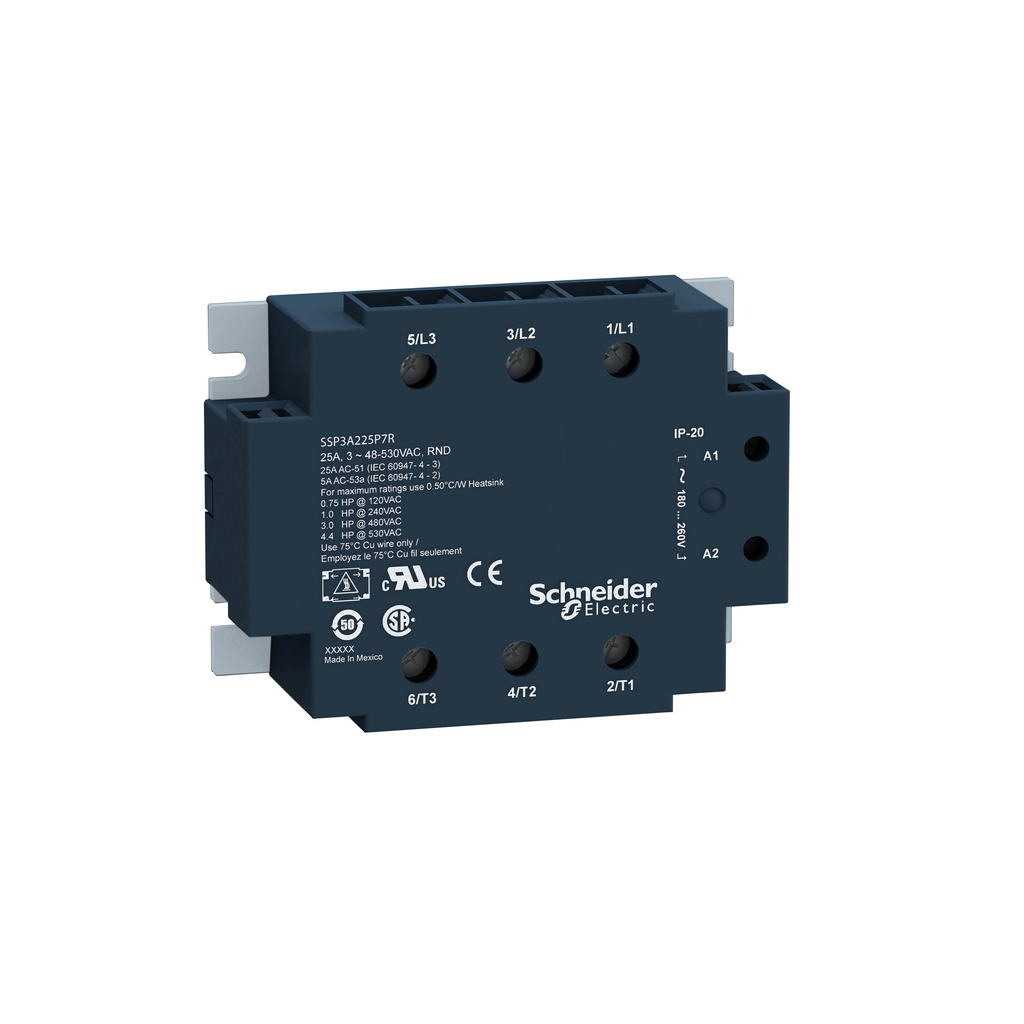

Harmony, Solid state relay, 25 A, panel mount, zero voltage switching, thermal pad, input 90?140 V AC, output 48?530 V AC | Mayer Electric

SQUARE D . SQDSSP3A225F7T

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameHarmony, Solid state relay, 25 A, panel mount, zero voltage switching, thermal pad, input 90?140 V AC, output 48?530 V AC | Mayer Electric
UPC3606480579974
Weight0.24
WeightUnitkg
Weight_AttribNet Weight
depth, length35.4
height79.7
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Harmony-Solid-state-relay-25-A-panel-mount-zero-voltage-switching-thermal-pad-input-90140-V-AC-output-48530-V-AC-3606480579974
jsonUrlData2b13d5acc-4e14-46f3-b029-aeea0057bb09
length_AttribDepth
moq, multiple, tierMinQty11
MPN, SKUSQDSSP3A225F7T
qtyInStock0
tierPrice1200.64
width101.3
width_AttribWidth
Range Of ProductHarmony Solid State Relays
Mounting Supportpanel
Output Switching Mode, Solid State Output Typezero voltage switching
Product Or Component Typesolid state relay up to 30 A
Phase3 phase
Provided Equipmentthermal interface
Line Rated Current25 A
Device Short NameSSP
Cos Phi0.5-0.5 (with maximum load)
[Uc] Control Circuit Voltage90...140 V AC
Height79.7 mm
Output Voltage48...530 V AC
Maximum Horse Power Rating0.75 hp 40 ?C 120 V AC || 1 hp 40 ?C 240 V AC || 3 hp 40 ?C 480 V AC || 4.4 hp 40 ?C 530 V AC
Tightening Torque0.9...1.1 N.m for input || 1.7...2.2 N.m for output
Insulation Resistance>= 1000 MOhm at 500 V DC
Thermal Resitance0.24 ?C/W
Maximum I?T For Fusing380 A?.s for 10 ms at 50 Hz || 370 A?.s for 8.3 ms at 60 Hz
Connections - Terminalsscrew terminals 1 x 0.2...1 x 2.5 mm?, AWG 24...AWG 14) input || screw terminals 1 x 1.5...1 x 10 mm?, AWG 16...AWG 8) output
Dielectric Strength4 kV AC for input/output || 4 kV AC for input or output to case
Response Time20 ms (turn-on) || 30 ms (turn-off)
Surge Current275 A 20 ms || 300 A 16.6 ms || 85 A 1 s
Load Current0.1-25 A
Local SignallingLED, green input
Net Weight0.24 kg
Minimum Switching Voltage90 V AC turn-on
Maximum Leakage Current3 mA off-state
Ip Degree Of ProtectionIP20
Control Typewithout test button
Device Presentationcomplete product
Absolute Maximum Voltage1200 V
Dv/Dt500 V/?s off-state at maximum voltage
Maximum Switching Voltage10 V AC turn-off
Capacitance Unbalance8 pF for input/output
Width101.3 mm
Input Current Limits7-16 mA
Depth35.4 mm
Motor Power Kw0.56 kW 40-40 ?C 120 V AC || 0.74 kW 40-40 ?C 240 V AC || 2.22 kW 40-40 ?C 480 V AC || 3.24 kW 40-40 ?C 530 V AC
Rohs Exemption Information, Mercury FreeYes
Environmental DisclosureENVPEP1505006EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs RegulationX
Circularity ProfileENVEOLI1505006EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsUL || CSA
Ambient Air Temperature For Operation-40-80 ?C
StandardsIEC 62314 || IEC 60950-1 || IEC 61000
Pollution Degree2
MarkingCE
Flame RetardanceV0 conforming to UL 94
Ambient Air Temperature For Storage-40-125 ?C
Overvoltage CategoryIII
