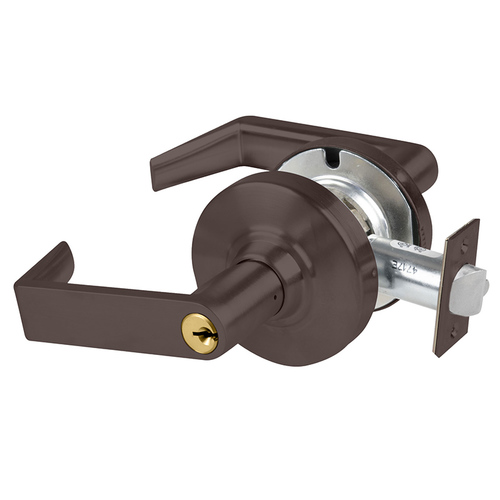

Schlage Commercial ND91PD RHO 613 ND Series Vandlgard Entry / Office C Keyway Rhodes with 13-247 Latch 10-025 Strike Oil Rubbed Bronze Finish

ND SeriesCylindrical Locks ND Series locks have been the most popular Schlage product ever since Walter Schlage invented the cylindrical lock in 1920. The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The lock withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks. The lock is not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles. All ND Series locks come in 10 finishes, nine lever designs and use an ANSI 161 door preparation, c

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAllegion
CategoryIdL3Mechanical Locksets
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameSchlage Commercial ND91PD RHO 613 ND Series Vandlgard Entry / Office C Keyway Rhodes with 13-247 Latch 10-025 Strike Oil Rubbed Bronze Finish
atoms, moq, multiple, tierMinQty11
color, ColorDark Oxidized Satin Bronze Oil Rubbed
diameter, height, width3.4375
height_Attrib, width_AttribRose Diameter
length, Lever Length4.5625
length_AttribLever Length-Inches
MPNND91PD RHO 613
qtyInStock0
tierPrice1679.29
Finish, Finish DescriptionOil Rubbed Dark Bronze
Backset2-3/4 Inch
StrikeANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
DesignRhodes
Function91-Vandlgard Entrance/Office
Color Code613/US10B
Fire Rated3 Hours {A}
OriginMexico
BAA QualifiedYes
Package Height4.75
Package Length9.5
Package Volume372.28125
Package Width8.25
HandingReversible
GradeANSI/BHMA Grade 1
KeywaySchlage C
Cylinder TypeP-6 Pin Conventional (Keyed 5)
Lever StyleRHO-Rhodes
Keyblank GroupingSCHL-C-6-1
Rose/Escutcheon TrimRound Rose
Product TypeCylindrical Lock
Projection2.9375
Door Thickness1 5/8" - 2 1/8"
Bore Size2.1250
Latch Number13-247
Strike Number10-025
ADA ApprovedFalse
Keying ChargesCCAM
Finish FamilyDark Bronze
Strike Lip1-3/16 Inch
Cylinder Type UsedConventional
Warranty10 year mechanical
Latch CornerSquare
Strike TypeANSI Strike
FeaturesHeavy-Duty Cylindrical Lock; Able to Handle any Application; Ideal for Both New Construction and Retrofit Applications
Product Projection2-15/16 Inch
Cylinder MaterialBrass
Rose Diameter3-7/16 Inch
StandardsANSI/BHMA A156.2 Series 4000; ICC A117.1; CA Fire Code; Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) Requirements for Hurricanes; Meets FF-H-106C Series 161
Function FamilyEntry/Entrance/Office
Trim MaterialPressure Cast Zinc (Lever)
ApplicationHealthcare; Education; Government; Office; Retail; Other Commercial Applications
Door Cross Bore2.125 Inch
Handle TypeLever
Lever Length-Inches4.5625 Inch
Latch Bolt MaterialStainless Steel
Front Size1-1/8" x 2-1/4"
ADA CompliantYES
Lever Style FamilyStraight Return Lever
Sub-SeriesCL_Cylindrical_Locks_schlage_commercial_337
ANSI FunctionF82
Function DescriptionPush button locking. Deadlocking latch bolt by knobs/levers except when outside knob/lever is locked by button inside or in face (edge). Inside knob/lever always free.
Latch TypeDeadlatch
Latch Throw1/2 Inch
Knob/Lever Size4-9/16 Inch
Strike Size1-1/4" x 4-7/8"
