D-7 is available from Zoro, Grainger, Grainger, Raptor Supplies, Zoro. See pricing comparison above.

What is the price of D-7?

Pricing ranges from $38.45 to $172.87 depending on quantity and distributor.

Yes, D-7 is currently in stock at multiple distributors with immediate availability.

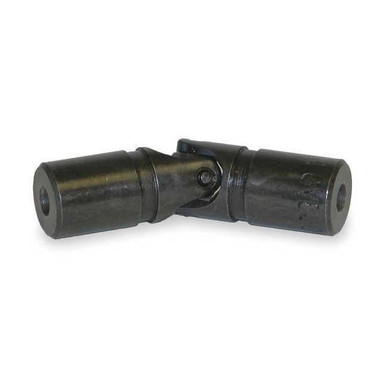

Universal Joint, Coupling Size D-7, Overall Length 3 1/2 in, Maximum Bore Diameter 7/8 in, Maximum Operating Angle 25 Degrees , Yoke Length 1 3/4 in, Boot Material Not Applicable, Bore Diameter Not Applicable, Number of Joints Single, Joint Diameter 1 1/8 in, Maximum Speed 1,750 RPM, U-Joint Material Carbon Steel, Joint Type Pin & Block, Booted No, Outside Diameter 1 1/8 in, Keyway Depth Not Applicable, Keyway Width Not Applicable, Length through Bore Not Applicable, Break Torque 2,880 in-lb

Name: Universal Joint, Coupling Size D-7, Overall Length 3 1/2 in, Maximum Bore Diameter 7/8 in, Maximum Operating Angle 25 Degrees , Yoke Length 1 3/4 in, Boot Material Not Applicable, Bore Diameter Not Applicable, Number of Joints Single, Joint Diameter 1 1/8 in, Maximum Speed 1,750 RPM, U-Joint Material Carbon Steel, Joint Type Pin & Block, Booted No, Outside Diameter 1 1/8 in, Keyway Depth Not Applicable, Keyway Width Not Applicable, Length through Bore Not Applicable, Break Torque 2,880 in-lb
Brand: Lovejoy
Price: 80.09 USD
Availability: OutOfStock

Lovejoy . D-7

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer	Lovejoy
CategoryId, CategoryIdL3	6026
CategoryIdL1	31
CategoryIdL2	4596
CategoryL1	Power Transmission
CategoryL2	Bearings, V-belts & Power Transmission Equipment
CategoryL3	Couplings, Collars, & Adapters
CategoryL4	Universal Joints
DimensionUnit	inch
GTIN, UPC	685144158413
GraingerSku	1L735
UnitOfMeasure	EA
Weight	0.9
WeightUnit	lbs
cali_prop65_orglabel, cali_prop65_whtlabel	False
countryOfOrigin	US
height, moq, multiple, tierMinQty1, width	1
jsonUrlData	924526ffbdad25e5923b
length	3.6
MPN, Coupling Size	D-7
qtyInStock	0
qtyInStockOverride	-2
SKU	G2221082
tierPrice1	80.09
url	https://www.zoro.com/lovejoy-solid-u-joint-d-7/i/G2221082/
Outside Dia, Outside Diameter, Joint Diameter	1 1/8 in
Overall Length	3 1/2 in
Length through Bore, Keyway Width, Bore Diameter, Minimum Bore Diameter, Keyway Depth	Not Applicable
Yoke Length	1 3/4 in
Maximum Bore Diameter, Max Bore	7/8 in
Item	Universal Joint
Type	Solid D
Standard Bore	Solid
Bore	No Bore Provided, Must Be Machined To User Requirements
Static Breaking Torque (In -Lb )	2,880
Groove	Standard Boot Retaining
Design	Pin and Block
Construction	Steel
Used For	Applications with Angles up to 25 Degrees and Speeds up to 1750 RPM
Keyway, Setscrew	Not Provided

Distributor offers

Seller	SKU	MOQ	In stock	Multiple	Prices
Zoro	G2221082	1		1	1 @ $80.09
Grainger	1L752	1		1
Grainger	1L735	1		1
Raptor Supplies	AB2CHH	1		1	1 @ $161.80
Zoro	G1957286	1		1	1 @ $38.45
sustainablesupply.com	C1661440	1	-2	1	1 @ $76.86
sustainablesupply.com	C1661427	1	-2	1	1 @ $105.62
simsupply.com	CU-314C373532	1	2	1	1 @ $110.55
Raptor Supplies	AB2CGV	1		1
simsupply.com	ZO-G2221082	1	9	1	1 @ $172.87
