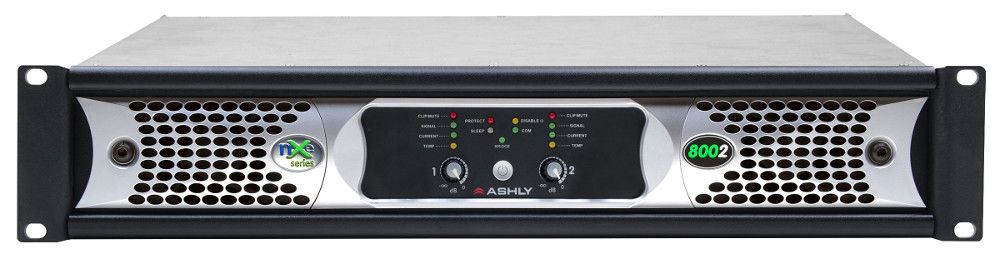

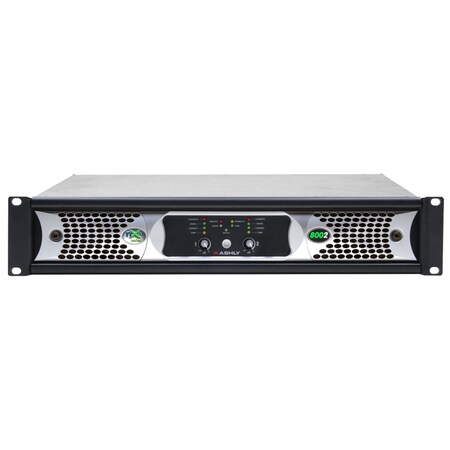

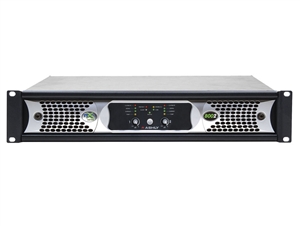

Ashly . NXE8002

Ashly NXE 8002 NXE Multi-Mode Amplifiers, Power AmPlifiers with Selectable Outputs and Ethernet Control; 2-Channels; Real-Time Clock with Event Scheduler; Multiple Internal Power Supplies NX Multi-Mode Power Amplifiers are designed to meet the most demanding live sound environments and fixed audio installations anywhere―performance venues, stadiums, arenas, convention centers as well as schools, store fronts and worship spaces. Key Features: - Ethernet Control using Protea NE software - Real-Time Clock with Event Scheduler - Ashly Remote Control via iPad app - Class-D Switching Amplifier Technology - Multi-Mode Operation - Multiple Internal Power Supplies - Ashly Energy Management System (EMS) for increased efficiency) automatic less than 1W sleep-mode (defeatable) Specifications: - Channels: 2 - Max Output Power - Measured in Watts, Per Channel, Low Impedance Output, All Channels Driven: 2 Ohms/800; 4 Ohms/800; 8 Ohms/800 - 70V, 100V Constant Voltage Output - Measured in Watts, All Channels Driven: 70V (per channel)/800; 100V (per channel)/800 - Voltage Gain: Selectable at 26dB, 32dB, 38dB, or 1.4V - Input High Pass Filter: 80Hz 2nd order - Channel Separation: -75dB (dB from full output, 1kHz) - Frequency Response: 20Hz-20kHz, +/- 0.05dB - Maximum Input Level: +21dBu - Input Impedance: 10k Ohms - Control Network: Compatible w/ standard 100MB Ethernet - Cooling: Continuously variable temperature controlled axial fan(s) - Dimensions (WxHxD): 19.0 x 3.5 x 16.84 in - Weight: 22.2 lbs
