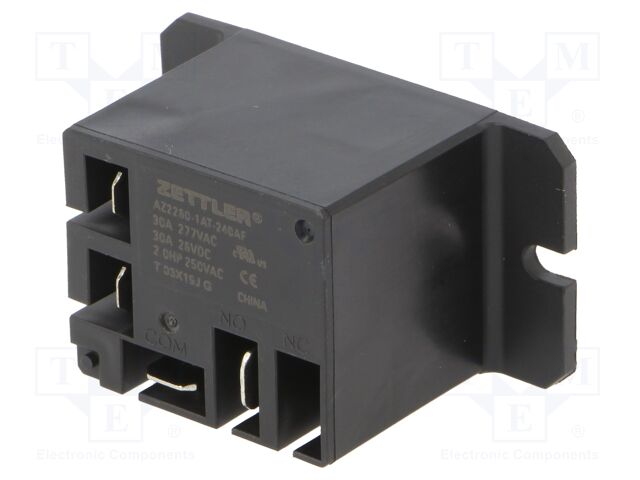

ZETTLER AZ2280-1AT-240AF | Relay: electromagnetic; SPST-NO; Ucoil: 240VAC; 30A; Series: AZ2280
ZETTLER AZ2280-1AT-240AF | Relay: electromagnetic; SPST-NO; Ucoil: 240VAC; 30A; Series: AZ228
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | ZETTLER |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Power Electromagnetic Relays |
| Extra Product Name | ZETTLER AZ2280-1AT-240AF | Relay: electromagnetic; SPST-NO; Ucoil: 240VAC; 30A; Series: AZ2280 |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | 49b1435ad162e1c9cb2626573ccf56b9. |
| jsonUrlData2 | f8dba0c2c79f0d1f84e4 |
| keywords | ZETTLER, AZ2280-1AT-240AF, Relays and Contactors, Relays, Electromagnetic Relays, Power Electromagnetic Relays |
| MPN, SKU | AZ2280-1AT-240AF |
| qtyInStock | 291 |
| snippet | ZETTLER AZ2280-1AT-240AF | Relay: electromagnetic; SPST-NO; Ucoil: 240VAC; 30A; Series: AZ228 |
| tierMinQty2 | 5 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 3.89 |
| tierPrice2 | 3.49 |
| tierPrice3 | 3.21 |
| tierPrice4 | 2.81 |
| tierPrice5 | 2.58 |
| Type of relay | electromagnetic |
| Contacts configuration | SPST-NO |
| Rated coil voltage | 240V AC |
| Contact current max | 30A |
| Relay series | AZ2280 |
| Relay variant | power |
| Operating temperature | -40...70?C |
| Mounting | on panel |
| Body dimensions | 50.2x27.5x27.8mm |
| Switched voltage | max. 28V DC, |
| Coil resistance | 13.49k? |
| AC contacts rating @R | 30A / 277V AC |
| Contact resistance | 50m? |
| Contact material | AgCdO |
| DC contacts rating @R | 30A / 28V DC |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| AZ2280-1AT-240AF | 1 | 291 | 1 | 1 @ $3.89, 5 @ $3.49, 25 @ $3.21, 100 @ $2.81, 500 @ $2.58 |
