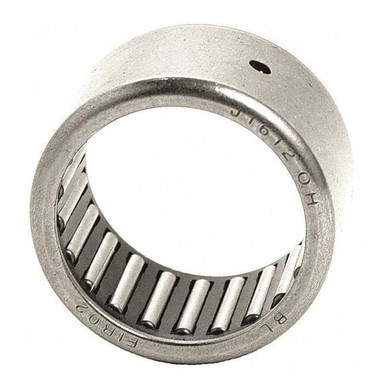

Needle Roller Bearing, Bearing Industry Number 2016, Bearing Design J, Bore Diameter 1 1/4 in, Cage Material Steel, Closure Open, Compatible Ring Grainger Part Number 779KE9, Compatible Ring Manufacturer Part Number IR-1616, Full Complement No, Lubricant Material Grease, Oil, Maximum Speed 10,000 RPM Oil, 6,600 RPM Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -5 Degrees F, Needle Bearing Type Drawn Cup Needle Roller Bearing, Number of Rows One, Outside Diameter 1 1/2 in

Needle Roller Bearing, Bearing Industry Number 2016, Bearing Design J, Bore Diameter 1 1/4 in, Cage Material Steel, Closure Open, Compatible Ring Grainger Part Number 779KE9, Compatible Ring Manufacturer Part Number IR-1616, Full Complement No, Lubricant Material Grease, Oil, Maximum Speed 10,000 RPM Oil, 6,600 RPM Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -5 Degrees F, Needle Bearing Type Drawn Cup Needle Roller Bearing, Number of Rows One, Outside Diameter 1 1/2 in

Tritan . J2016 OH

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerTritan
CategoryId, CategoryIdL38160
CategoryIdL131
CategoryIdL217016
CategoryL1Power Transmission
CategoryL2Bearings, V-belts & Power Transmission Equipment
CategoryL3Roller Bearings
CategoryL4Needle Roller Bearings
DimensionUnitinch
GTIN, UPC888569026415
GraingerSku35TX35
UnitOfMeasureEA
Weight0.1
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginCN
height1.1
jsonUrlData924526ffbdad25e5923b
length, width1.6
moq, multiple, tierMinQty11
MPNJ2016 OH
qtyInStock26
qtyInStockOverride-2
SKUG2704740
tierPrice16.99
urlhttps://www.zoro.com/tritan-needle-brg-drawn-cup-bore-1250-in-j2016-oh/i/G2704740/
Bore Dia (In )1.25"
Bore Dia (mm)31.75 mm
Outside Dia (In )1.5"
Outside Dia (mm)38.1 mm
Width (In )1"
Width (mm)25.4 mm
Outside Diameter1 1/2 in
Overall Width1 in
Bore Diameter1 1/4 in
ItemNeedle Roller Bearing
TypeDrawn Cup
Static Load Capacity (N)54,510 N
Temp Range (F)-25 to +225? F
Dynamic Load Capacity (Lb )6480
Cage MaterialSteel
Max RPM1,000 RPM
Dynamic Load Capacity (N)27,820 N
Static Load Capacity (Lb )12700
Number of RowsOne
Ring MaterialAlloy Steel
Seal TypeNot Applicable
Lubricant MaterialGrease, Oil
Compatible Ring Manufacturer Part NumberIR-1616
Cage Material GradeANSI 52100
