FLEXware PV-12

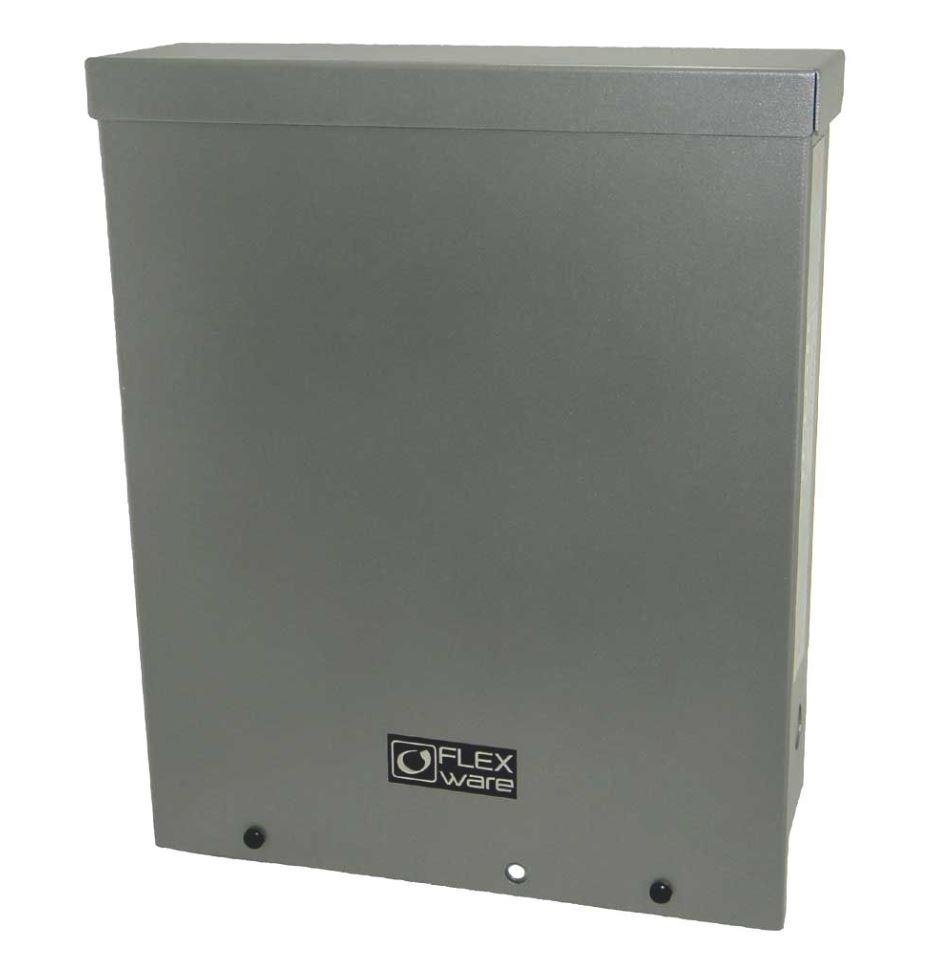

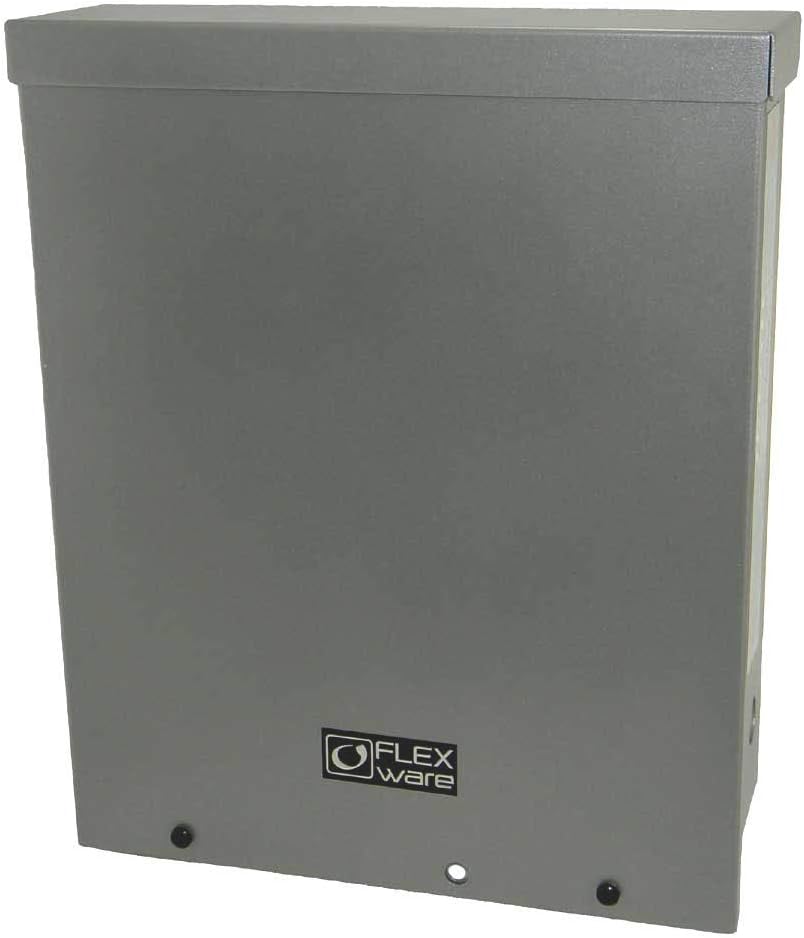

FLEXware PV Combiner Boxes The FLEXware PV Combiner Box Series takes installations to the next level and sets a new standard for PV balance-of-system hardware. Ideal for both small and large systems, the FLEXware PV12 accommodates an application’s overcurrent protection requirements. Holds up to (12) 150VDC DIN rail type breakers or (8) 600VDC fuse holders (breakers and fuse holders sold separately). Designed to survive in outdoor environments, the rainproof, UL-type 3R powder coated aluminum chassis can be mounted on a wall, sloped roof or pole. The unique angled negative terminal bus bar design make wiring fast and easy without the common problem of larger output conductors blocking access to the smaller input terminals. Dual output lug terminals are included for up to 2/0 AWG conductors. The tinted flame-retardant polycarbonate “dead” front panel creates a clean appearance while preventing accidental contact with the live terminals and is easily removable during installation. Use appropriate wire size in accordance with NEC.

Part Number: FWPV-12 Part: Outback Power FWPV-12 Combiner Box, 12 Circuit Combiner Box. Can be fused or can use with 150V DC breakers. 12 Circuit. NEMA 3R. 600V DC max. Volts DC: 600 Type: Fused, Combiner Box Also known as: OUTFWPV12, Outback Power, FWPV-12, Combiner Boxes - Without Disconnect, Solar Distribution, Solar Products, Solar/Clean Energy Equivalent to:

The MNPV6-250 is designed for 200 and 250 VDC charge controllers. Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept three 300 VDC MidNite Solar breakers. Box Size: 9 x 14 x 4" Weight: 5 Lb/s
