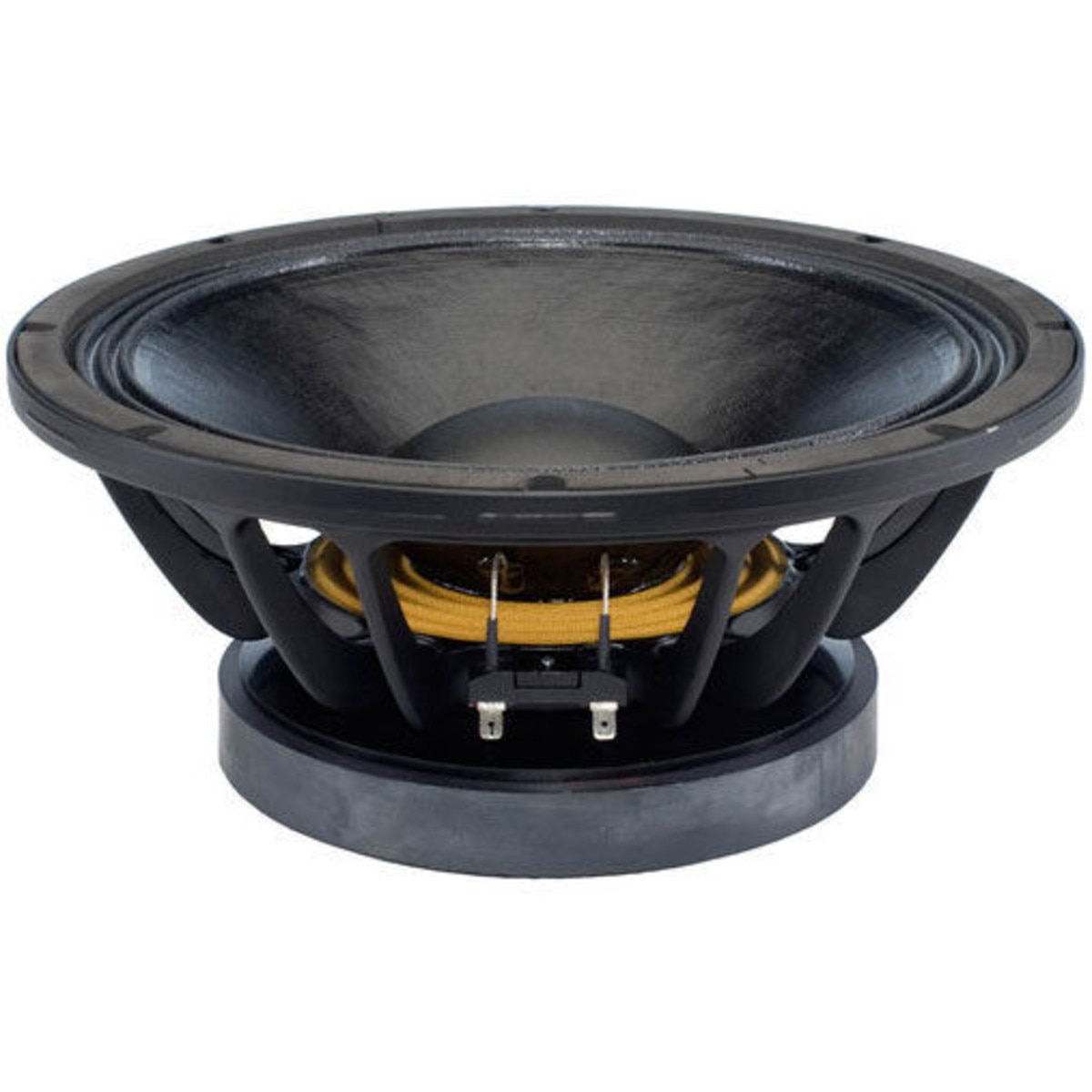

B&C 12FW76 12" Professional Woofer 8 Ohm

B&C 12FW76 12" Professional Woofer 8 Ohm. Part Number: 294-5951 by B&C Speakers.

B&C Speakers . 12FW76

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandB&C Speakers
DimensionUnitinch
Extra Product NameB&C 12FW76 12" Professional Woofer 8 Ohm
UPC848864009520
Weight20.9
WeightUnitlbs
depth, length5.7
diameter, height, width12.4
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, Model12FW76
qtyInStock-2
qtySourceFieldMap
SKU, Part Number294-5951
snippetB&C 12FW76 12" Professional Woofer 8 Ohm. Part Number: 294-5951 by B&C Speakers.
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.7
Power Handling (RMS)500 Watts
Power Handling (MAX)1000 Watts
Impedance8?
Frequency Response55 to 3,000Hz
Sensitivity100dB 2.83V/1m
Voice Coil Diameter3"
Resonant Frequency (Fs)54Hz
DC Resistance (Re)5?
Voice Coil Inductance (Le)1.4mH
Mechanical Q (Qms)3.8
Electromagnetic Q (Qes), Total Q (Qts)0.18
Compliance Equivalent Volume (Vas)1.6ft?
BL Product (BL)26.4T?m
Diaphragm Mass Inc Airload (Mms)75g
Maximum Linear Excursion (Xmax)7mm
Surface Area of Cone (Sd)522cm?
Cone MaterialCoated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter12.4"
Baffle Cutout Diameter11.1"
Depth5.7"
# Mounting Holes8
Vented Volume1.25ft?
Vented F356.2Hz
