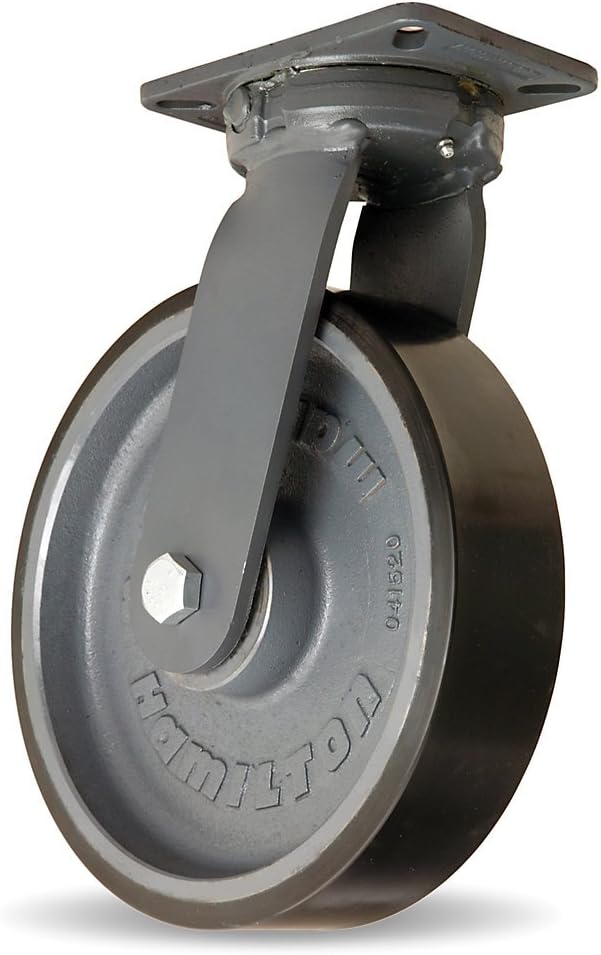

Super Endurance Swivel Caster, 12" x 3" Duralast XC Polyurethane (70D) on Cast Iron Wheel

The Hamilton Super Endurance Caster features a 12-inch diameter x 3-inch wide Duralast XC polyurethane wheel and -3/4-inch precision tapered roller bearings. It has a capacity of 4550 pounds and is designed for swiveling applications.

HAMILTON Super Endurance CastersA are excellent swivel casters for extreme loads. Kingpinless design reduces the chance of swivel failure. Perfect for extra-heavy duty applications. Top plate and inner raceway are formed from one piece, CNC-machined and hardened to ensure uniform hardness depth in the swivel raceway. -3/8x3" plate steel legs are robotically welded inside and outside to forged steel horn base. Load bearing is 3-5/8" diameter CNC-machined raceway. -3/4" diameter axle. Ball check type lubrication fittings in swivel assembly and wheel hubs with tapered or straight roller bearings.

Hamilton . S-SEC-12DT70

Gallery

Attributes

Brand name, Manufacturer name, ManHamilton
Manufacturer, Brand, Label, Publisher, StudioHamilton Hamilton Casters
CategoryId, CategoryIdL46740
CategoryIdL1, CategoryIdL214394
CategoryIdL34473
CategoryL1Material Handling
CategoryL2Casters & Wheels
CategoryL3Casters
CategoryL4Plate Casters
DimensionUnitinch
GraingerSku, MPN, Part Number, Model, Keyword, ModelNumber, Model_number, PartNumber, Part_numberS-SEC-12DT70
Extra Product NameSuper Endurance Swivel Caster, 12" x 3" Duralast XC Polyurethane (70D) on Cast Iron Wheel
UPCNone
UnitOfMeasureEA
Weight56 3.50 56.0 56.00
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
countryOfOriginUS
extendedLead15
extendedQty-2
height, length, moq, multiple, tierMinQty1, width, Number of Wheels, Case, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity1
jsonUrlData924526ffbdad25e5923b
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG3721871
tierPrice1598.00
urlhttps://www.zoro.com/hamilton-super-endurance-swivel-caster-12-x-3-duralast-xc-polyurethane-70d-on-cast-iron-wheel-s-sec-12dt70/i/G3721871/
Product GroupHome Improvement
Wheel Dia12
Wheel Width3
Mounting Bolt Dia0.5
Plate Size5 1/4 x 7 1/4
Mounting Height15.5
Caster Wheel ShapeStandard
Caster Wheel/Tread Material, Material, MaterialTypePolyurethane
Load Rating4550
Inside Bolt Hole Spacing3 3/8 x 5 1/4
Replacement WheelW-1230-DT70-3/4
Outside Bolt Hole Spacing4 1/8 x 6 1/8
Thread Guards, Non-MarkingNo
Caster Plate Hole PatternA
Core ColorGray
Caster Frame MaterialForged Steel
Caster Temp Range-50 to 200 deg(F)
Caster Wheel BearingsTapered
ItemSwivel Caster
Caster Core MaterialCast iron
Frame FinishPowder Coat
StandardsICWM
SeriesSuper Endurance(TM)
ASIN, AsinB00UZ6J2SA B0876DTK2Z
BindingMisc.
Bullet_point-3/4" Precision Tapered Roller Bearings Capacity: 4550 lbs. Overall Height: 15.5" Wheel Dia.xW: 12x3" Wheel Type: Polyurethane
CatTools & Home Improvement
CatId228013
CatTree228013 468240 551240
ClassificationId511228
DisplayNameHardware
FeatureWheel Type: Polyurethane
Height1000 15.5 15.50 3.0 3.00 500 75
IsBrandQueryTrue
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleHamilton Casters Hamilton Super Kingpinless Swivel 12 x 3 Duralast XC Tapered 4550 Lb. Caster Hamilton Super Endurance Casters - 12"Dia.X3"W Duralast Xc Polyurethane Wheel - -3/4" Precision Tapered Roller Bearings - 4550 Lbs. Capacity - Swivel
Item_package_weight, Item_weight56.0
Item_type_keywordplate-casters
Length0.0 0.00 12.0 15.5 15.50
Linkhttps://m.media-amazon.com/images/I/41huLgy8LJL._SL75_.jpg https://m.media-amazon.com/images/I/41huLgy8LJL.jpg https://m.media-amazon.com/images/I/61ZIqvEkdlL.jpg
ProductGroupBISS Basic Home Improvement
ProductTypeADHESIVES_AND_SEALANTS INDUSTRIAL_CASTERS
ProductTypeNameADHESIVES_AND_SEALANTS INDUSTRIAL_CASTERS TOOLS
Product_descriptionHAMILTON Super Endurance CastersA are excellent swivel casters for extreme loads. Kingpinless design reduces the chance of swivel failure. Perfect for extra-heavy duty applications. Top plate and inner raceway are formed from one piece, CNC-machined and hardened to ensure uniform hardness depth in the swivel raceway. -3/8x3" plate steel legs are robotically welded inside and outside to forged steel horn base. Load bearing is 3-5/8" diameter CNC-machined raceway. -3/4" diameter axle. Ball check type lubrication fittings in swivel assembly and wheel hubs with tapered or straight roller bearings. Hamilton Casters Hamilton Super Kingpinless Swivel 12 x 3 Duralast XC Tapered 4550 Lb. Caster
Product_site_launch_date2015-03-20T14:00:24.766Z 2020-04-16T14:38:11.254Z
SkuHAMILTON S-CH-12DT70 S-CH-12DT70 S-SEC-12DT70
URLhttp://ecx.images-amazon.com/images/I/41huLgy8LJL._SL75_.jpg https://images-na.ssl-images-amazon.com/images/I/01RmK+J4pJL._SL75_.gif https://m.media-amazon.com/images/I/41huLgy8LJL._SL75_.jpg
Unitinches pounds
Unitsinches pixels pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width0.0 0.00 1000 12.0 12.00 3.0 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG3721871111 @ $598.00
motionindustries.com058669291Not in Stock, Available to Order11 @ $678.97
AmazonSCB00UZ6J2SA1-211 @ $582.05
ZoroG907008911
National Supply Network172720211

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Hamilton Super Endurance Casters - 12"Dia.X3"W Duralast Xc Polyurethane Wheel - -3/4" Precision Tapered Roller Bearings - 4550 Lbs. Capacity - Swivel
Brand: Hamilton
HAMILTON Super Endurance CastersA are excellent swivel casters for extreme loads. Kingpinless design reduces the chance of swivel failure. Perfect for extra-heavy duty applications. Top plate and inner raceway are formed from one piece, CNC-machined and hardened to ensure uniform hardness depth in the swivel raceway. -3/8x3" plate steel legs are robotically welded inside and outside to forged steel horn base. Load bearing is 3-5/8" diameter CNC-machined raceway. -3/4" diameter axle. Ball check type lubrication fittings in swivel assembly and wheel hubs with tapered or straight roller bearings.
Details
  • Wheel Type: Polyurethane
  • Wheel Dia.xW: 12x3"
  • Capacity: 4550 lbs.
  • Overall Height: 15.5"
  • -3/4" Precision Tapered Roller Bearings
