Zoro Select

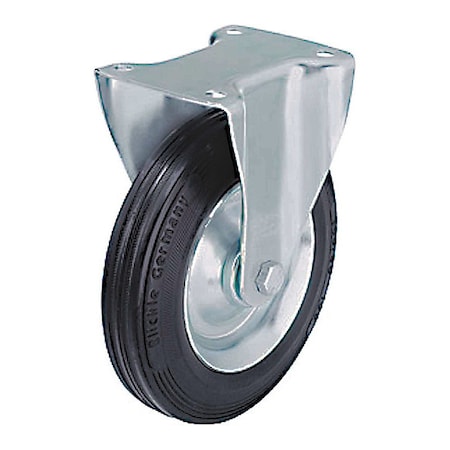

Zoro Select . B-V 256K

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameZoro Select
DimensionUnitinch
GraingerSku489D35
UPCNone
UnitOfMeasureEA
Weight18.56
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginDE
extendedLead10
extendedQty-2
height5.38
jsonUrlData924526ffbdad25e5923b
length11.44
moq, multiple, tierMinQty1, Number of Wheels1
MPNB-V 256K
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG9463750
tierPrice1134.90
urlhttps://www.zoro.com/zoro-select-solid-rubber-caster-770-lb-ld-rigid-b-v-256k/i/G9463750/
width15.38
Caster Brake Included, Non-Marking, Includes Thread Guards, Extended Lead, ESD ConductiveNo
Caster Load Rating RangeMedium Duty
Caster Sub-TypeRigid
Caster Wheel/Tread MaterialSolid Rubber
Load Rating585 lb
Overall Height295 mm
Wheel Dia250 mm
Wheel Width85 mm
Plate Size5-1/8" x 8-11/16"
Caster Temp Range AvailableYes
Plate Thickness5/32"
Caster Plate Hole Pattern, Plate Caster Bolt Hole Pattern, Mounting Plate Bolt Hole PatternD
Mounting Bolt DiaM14
Tread ColorBlack
Hub Color, Core ColorSilver
Inside Bolt Hole Spacing, Outside Bolt Hole Spacing75 mm x 190 mm
Tread, Tread ShapeRibbed
Frame Material, Hub Material, Caster Frame MaterialSteel
Tire Rim Dia4 59/64 in
Tire Thickness2 15/32 in
Caster Temp Range-25 Degrees To 80 Degrees C
Caster Product GroupRigid Caster
ItemRigid Plate Caster
Frame FinishZinc Plated
Hub Width3-9/64 in
Hub TypeCentered
Caster Wheel Bearings, Wheel Bearing TypePrecision Ball
Caster Mounting TypePlate
System of MeasurementMetric
Caster Brake Type, Caster Break TypeNo Brake Included
ApplicationRetail, Industrial, Commercial
Replacement WheelMfr. No. V 256/20-75K
StandardsRoHS, ICWM
Wheel/Tread Hardness RatingSoft
Number of Mounting Holes4
Operating Temperature Range-20 Degrees to 120 Degrees F
Wheel/Tread Hardness80 Shore A
Mounting Plate Size4-3/4 in x 8-11/16 in
Load Rating Range-
Mounting Height11 5/8 in
Wheel/Tread MaterialRubber
Caster Plate Thickness4 mm
Caster Swivel Lock TypeNo Lock Included
Caster Plate Size120 mm x 220 mm
SeriesB Series
Wheel Core MaterialPressed Steel
Load Capacity350 kg
Resistant ToChemical Resistance To Many Aggressive Substances, Except Oils
Country of Origin (subject to change)Germany

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9463750111 @ $134.90
