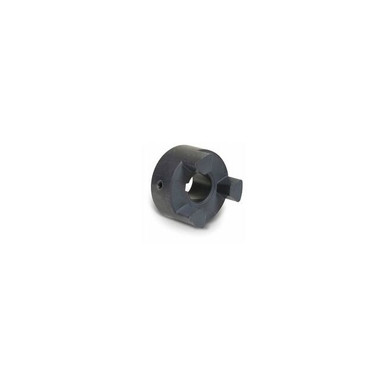

L1001 L100X1 L-JAW HUB

L1001 L100X1 L-JAW HUB

TB Woods . L1001

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerTB Woods
CategoryL1Shaft Couplings and Collars
CategoryL2Jaw Couplings
CategoryL3Components
CategoryL4Hub Halves
Extra Product Name, snippetL1001 L100X1 L-JAW HUB
moq, multiple3
MPNL1001
qtyInStock0
SKU336926
tierMinQty1, Bore size1
tierPrice132.53
Keyway1/4 in x 1/8 in
Product familyL-jaw hub
Size code100
Material type, Hub materialSinter carbon steel
Overall length3.5
Dimension (in ) (OD)2.530
Max compatible bore size1.4375
Setscrew length (in)3/8
Max speed, Max RPM7000
Setscrew length0.375
Dimension (in) (LTB), Length-through-bore1.38
Bore shapeFinish with keyway
Dimension (in) (S)0.52
Min compatible bore size0.4375
Setscrew size5/16 18 UNC - 2B
Jaw typeStraight
Dimension (in) (HD)5.53
Max parallel misalignment0.015
Center0.75
O D2.53
Bore tolerance (in)+0.0005 to +0.0015
Bore tolerance+.0005 to +.0015
Coupling sizeL100
Keyseat1/4 x 1/8

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply336926331 @ $32.53
Grainger6X07611
AmazonTPB0711L1JQD111 @ $48.99
AmazonTPB00SNI076S111 @ $30.75
Applied Industrial10081288611
AmazonSCB0711L1JQD1-211 @ $39.46
sustainablesupply.comC17000111-211 @ $39.14
ZoroG2390631133211 @ $27.09
simsupply.comZO-G2390631119711 @ $39.64
