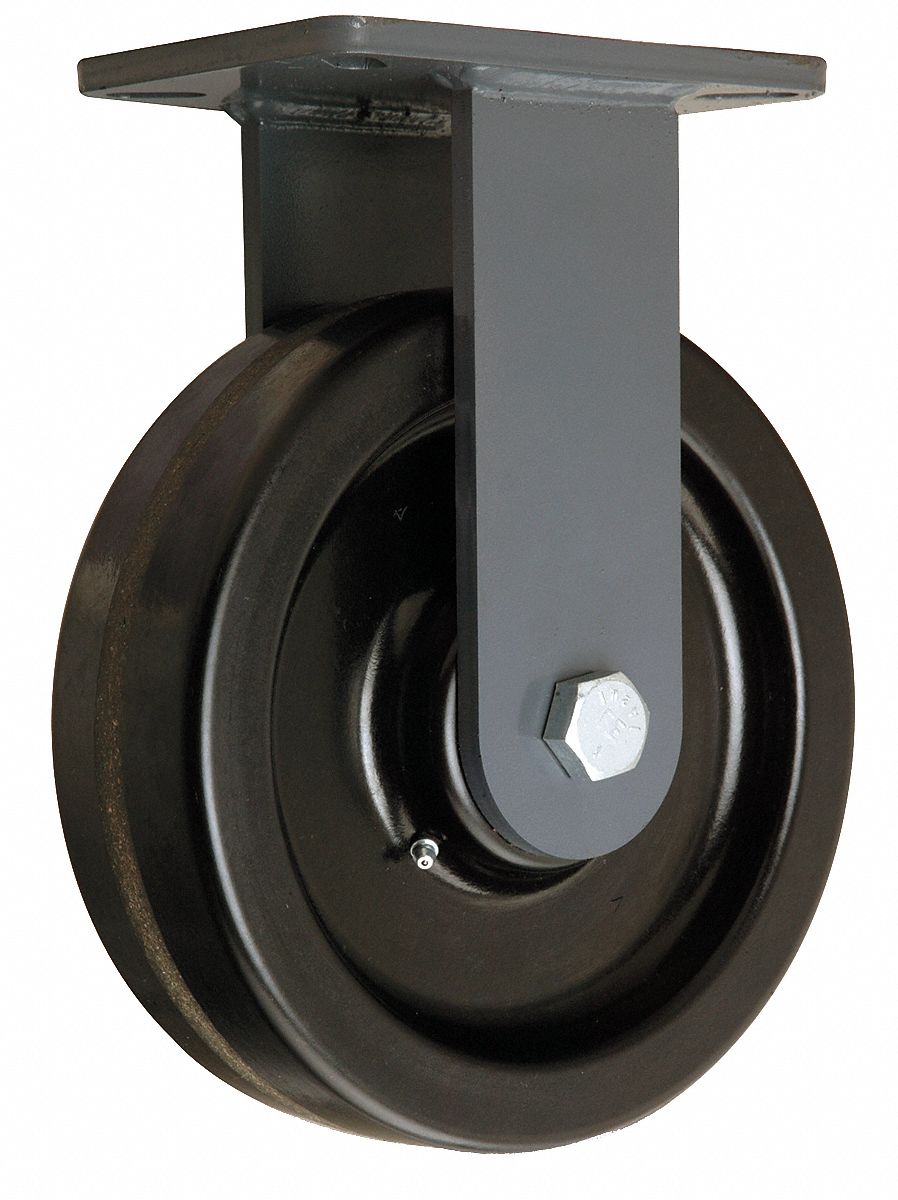

PLTE CASTER,RGD,PHENOLIC,10 IN.,2900LBS.

GRAINGER APPROVED . R-CH-13PH

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerGRAINGER APPROVED
DimensionUnitinch
Extra Product NamePLTE CASTER,RGD,PHENOLIC,10 IN.,2900LBS.
UNSPSC31162701
Weight22.0
WeightUnitlbs
diameter, length10.0
height12.5
height_AttribMounting Height
length_AttribWheel Dia.
moq, multiple, tierMinQty1, Number of Wheels1
MPNR-CH-13PH
originalCurrency{'currency': 'CAD', 'tierPrice1': '167.86'}
qtyInStock0
SKUWWG5VF92
tierPrice1121.83379516000001
width3.0
width_AttribWheel Width
ItemStandard Plate Caster
Swivel ConstructionKingpin
Wheel Dia10 in
Mounting Height12 1/2 in
Wheel/Tread Hardness RatingHard
Wheel/Tread Colour, Core ColourBlack
Mounting Plate Bolt Hole PatternA
Inside Bolt Hole Spacing4-1/8 in x 6-1/8 in
Mounting Bolt Dia1/2 in
Swivel Lock TypeNo Lock Included
Frame FinishEnamel
Tread ShapeStandard
Wheel Core Material, Wheel/Tread MaterialPhenolic
Non-MarkingYes
Replacement Wheel5VJ37
StandardsICWM
Caster Sub-TypeRigid
Load Rating2900 lb
Wheel Width3 in
Wheel/Tread Hardness90 Shore D
Wheel Bearing TypeRoller
Mounting Plate Size5 1/4 in x 7 1/4 in
Outside Bolt Hole Spacing3-3/8 in x 5-1/4 in
Number of Mounting Holes4
Caster Brake TypeNo Brake Included
Caster Frame MaterialSteel
Includes Thread GuardsNo
ApplicationAerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts
IncludesSpanner Bushing

Distributor offers

SellerSKUMOQIn stockMultiplePrices
grainger.caWWG5VF92111 @ $121.83
