ON Semiconductor . SZESD1L001W1T2G

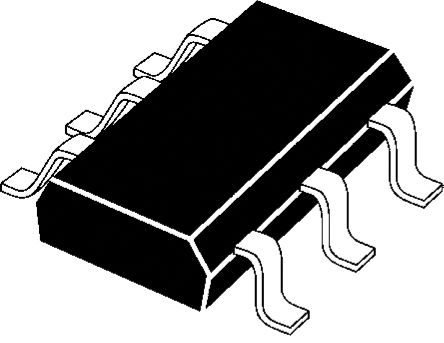

30V (Typ) Clamp Ipp Tvs Diode Surface Mount SC-88/SC70-6/SOT-363
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Brand | ON Semiconductor |
|---|---|
| jsonUrlData | 1718425 |
| moq, multiple, tierMinQty1 | 50 |
| MPN | SZESD1L001W1T2G |
| SKU | 171-8425 |
| tierMinQty2 | 250 |
| tierMinQty3 | 500 |
| tierMinQty4 | 1250 |
| tierMinQty5 | 2500 |
| tierPrice1 | 0.432 |
| tierPrice2 | 0.397 |
| tierPrice3 | 0.374 |
| tierPrice4 | 0.343 |
| tierPrice5 | 0.316 |
| Diode Configuration | Array |
| Maximum Operating Temperature | +125 °C |
| ESD protection | Yes |
| Number of Elements per Chip | 2 |
| Length | 2.2mm |
| Maximum Clamping Voltage | 30V |
| Minimum Breakdown Voltage | 16.5V |
| Maximum Peak Pulse Current | 16A |
| Package Type | SC-88 |
| Mounting Type | Surface Mount |
| Capacitance | 0.5pF |
| Minimum Operating Temperature | -55 °C |
| Width | 1.35mm |
| Test Current | 1mA |
| Maximum Reverse Leakage Current | Maximum Reverse Leakage Current |
| Height | Height |
| Pin Count | Pin Count |
| Dimensions | Dimensions |
| Automotive Standard | Automotive Standard |
| Working Voltage | Working Voltage |
| Direction Type | Direction Type |
| Stock | Stock |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 171-8425 | 50 | 50 | 50 @ $0.43, 250 @ $0.40, 500 @ $0.37, 1250 @ $0.34, 2500 @ $0.32 | ||
| Newark | 31AC7063 | 1 | 1 | ||
| RS Delivers | 171-8359 | 1 | 1 | 1 @ $0.26 | |
| Digi-Key | 7556466 | 1000 | 28929 | 1000 | 1 @ $0.69, 10 @ $0.59, 100 @ $0.44, 500 @ $0.35, 1000 @ $0.27 |
| Digi-Key | 7556415 | 1 | 5855 | 1 | 1 @ $0.66, 10 @ $0.58, 100 @ $0.45, 500 @ $0.35, 1000 @ $0.29 |
| Digi-Key | 7556517 | 1 | 5820 | 1 | 1 @ $0.66, 10 @ $0.58, 100 @ $0.45, 500 @ $0.35, 1000 @ $0.29 |
| Newark | 31AC1463 | 1 | 273 | 1 | 1 @ $0.66, 10 @ $0.57, 100 @ $0.39, 500 @ $0.33, 1000 @ $0.28 |
