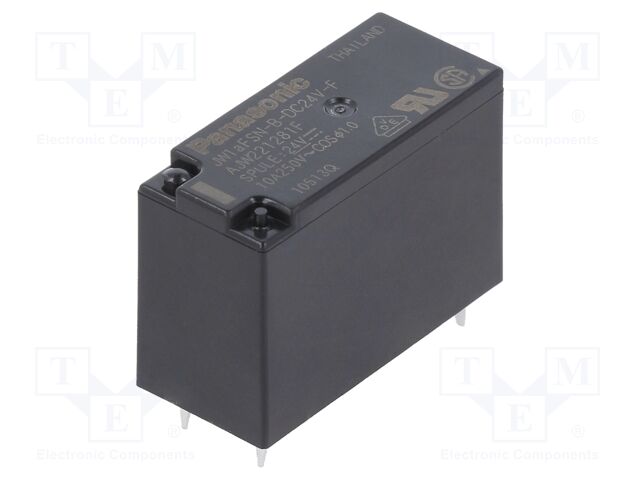

PANASONIC JW1AFSNB24FT | Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 10A
PANASONIC JW1AFSNB24FT | Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 10
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | PANASONIC |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | PANASONIC JW1AFSNB24FT | Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 10A |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | e176ebcab7763b01462d31e49660757d.5 |
| jsonUrlData2 | df6ea994c1b13e0894eb |
| keywords | PANASONIC, JW1AFSNB24FT, JW1AFSN-B-DC24V-F, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays |
| MPN | JW1AFSNB24FT |
| qtyInStock | 0 |
| SKU | JW1AFSN-B-DC24V-F |
| snippet | PANASONIC JW1AFSNB24FT | Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 10 |
| tierMinQty2 | 5 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 1000 |
| tierPrice1 | 2.95 |
| tierPrice2 | 2.51 |
| tierPrice3 | 2.22 |
| tierPrice4 | 2.07 |
| tierPrice5 | 1.92 |
| Type of relay | electromagnetic |
| Contacts configuration | SPST-NO |
| Rated coil voltage | 24V DC |
| Contact current max | 10A |
| AC contacts rating @R | 10A / 250V AC |
| DC contacts rating @R | 10A / 30V DC |
| Switched voltage | max. 30V DC, |
| Relay variant | miniature |
| Mounting | PCB, |
| Coil resistance | 1.1k? |
| Coil voltage min | 19.2V DC |
| Body dimensions | 28.6x12.8x20mm |
| Coil power consumption | 530mW |
| Operating temperature | -40...85?C |
| Relay series | JW |
| Contact material | AgSnO |
| Coil current | 22mA |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| JW1AFSN-B-DC24V-F | 1 | 1 | 1 @ $2.95, 5 @ $2.51, 25 @ $2.22, 100 @ $2.07, 1000 @ $1.92 |
