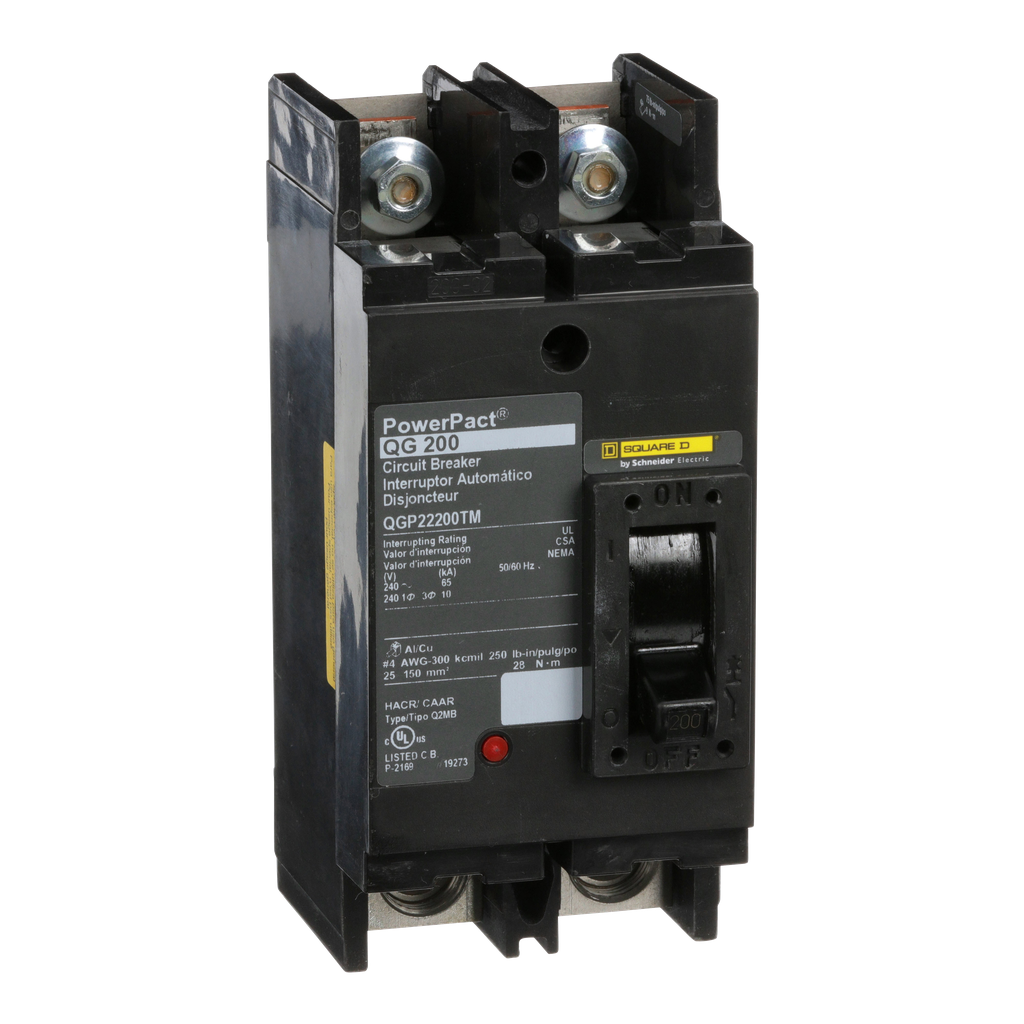

Circuit breaker, PowerPact Q, unit mount, thermal magnetic, 200A, 2 pole, 240VAC, 65kA, lugs OFF end, studs, nuts ON end | Mayer Electric

Mayer Electric Supply . QGP22200TM

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitinch
Extra Product NameCircuit breaker, PowerPact Q, unit mount, thermal magnetic, 200A, 2 pole, 240VAC, 65kA, lugs OFF end, studs, nuts ON end | Mayer Electric
UPC785901662693
depth, length3.93
height6.47
height_AttribHeight
jsonUrlData/Product/SQUARE-D-PowerPact-Q-Frame-Molded-Case-Circuit-Breakers-Tenant-MCCB-QGP22200TM-785901662693
jsonUrlData2dedfdeb9-1371-451c-afd8-abd20062cc70
length_AttribDepth
moq, multiple, tierMinQty11
MPNQGP22200TM
qtyInStock0
SKUSQDQGP22200TM
tierPrice11452.37
width3.0
width_AttribWidth
Product Or Component Typecircuit breaker
Product NamePowerPact Q
RangePowerPact
Device Applicationdistribution
Warranty18 months
Mounting Modeunit mount lug)
Network Frequency50/60 Hz
Trip Unit Technologythermal-magnetic
Height6.47 in
[Ue] Rated Operational Voltage240 V AC 50/60 Hz UL
Tightening Torque28-28 N.m 25-150 mm? (AWG 4...300 kcmil)
Mounting Supportlug
Breaking Capacity CodeG
Magnetic Tripping Current2400-2400 A
Local Signalling1 trip indicator green)
Electrical Connectionterminal nut line || lugs load
[Uimp] Rated Impulse Withstand Voltage8 kV UL
Magnetic Hold Current1200 A
Control Typeoperating handle
Wire Stripping Length22 mm
Utilisation Categorycategory A
Line Rated Current200-200 A
Continuous Current Rating80 %
Breaking Capacity65 kA 120/208 V AC 50/60 Hz UL || 65 kA 240 V AC 50/60 Hz UL
Mechanical Durability1000 cycles loaded || 5000 cycles no load
Poles Description2P
Width3.00 in
Depth3.93 in
Rohs Exemption Information, Mercury Free, Pvc Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1406032EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Eu Rohs DirectiveCompliant
Halogen Content PerformanceHalogen free product
Ambient Air Temperature For Operation40-70 ?C
StandardsUL || CSA || NEMA || NOM-003-SCFI-2000
Product CertificationsUL || CSA || NOM
